Ignition Coil: Diagrams

Component Connector End Views

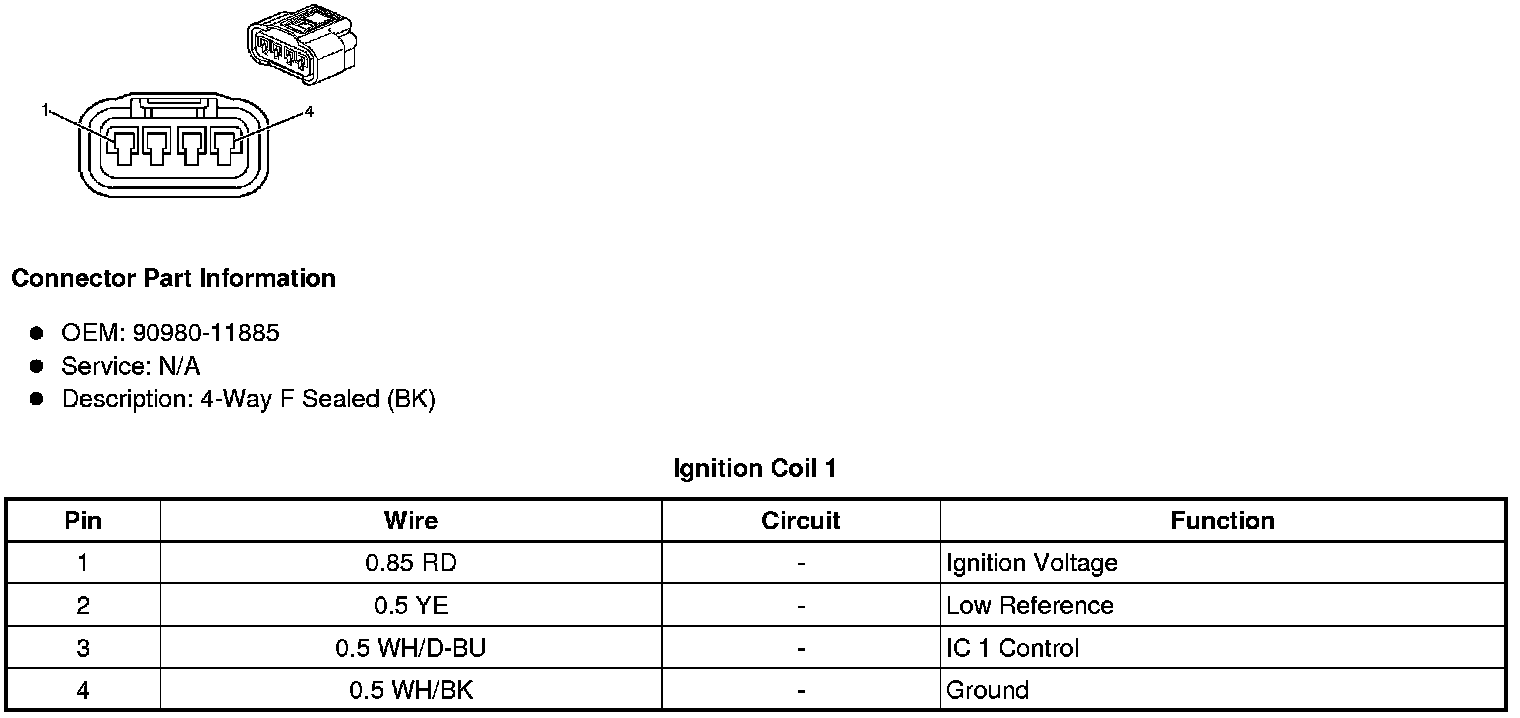

Ignition Coil 1

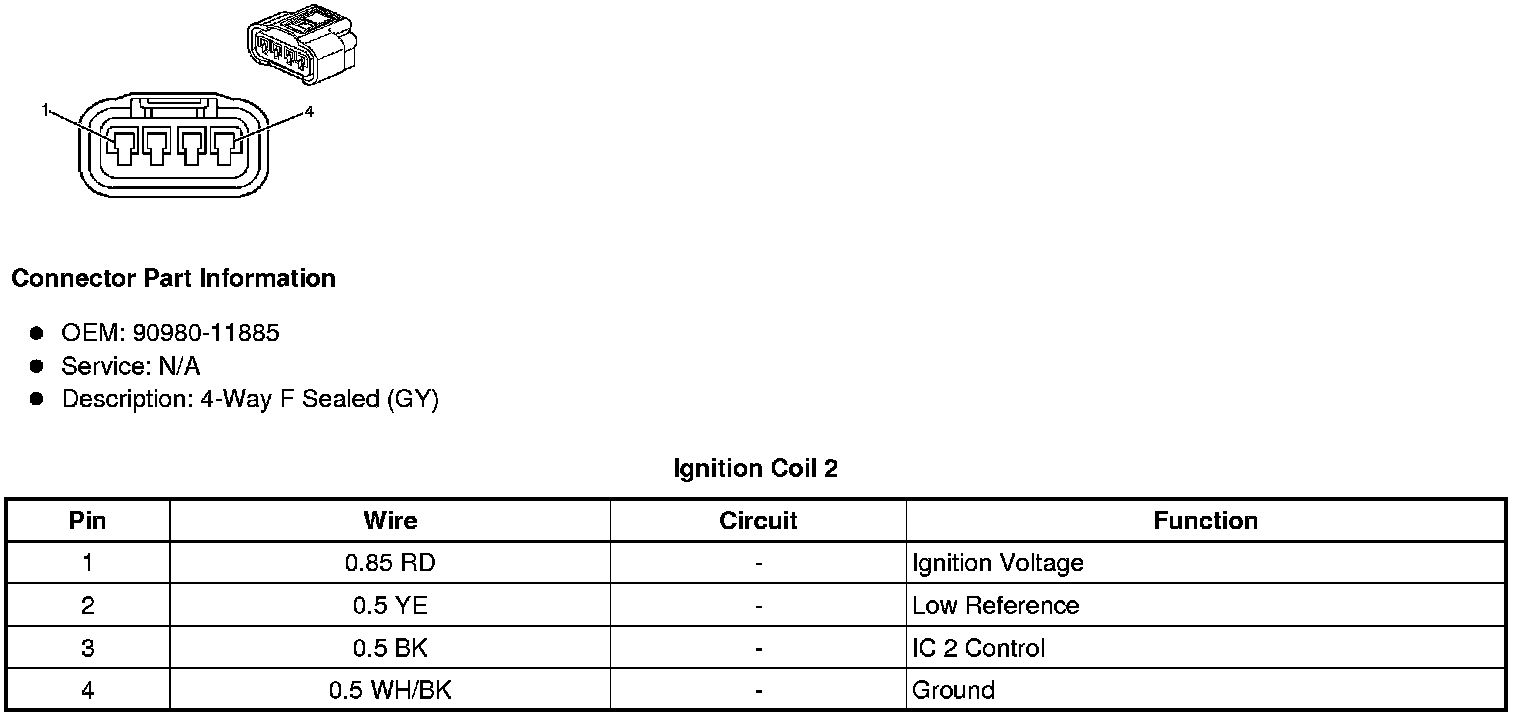

Ignition Coil 2

Ignition Coil 3

Ignition Coil 4
