Fuel Tank Unit: Locations

Wheels/Vehicle Underbody Component Views

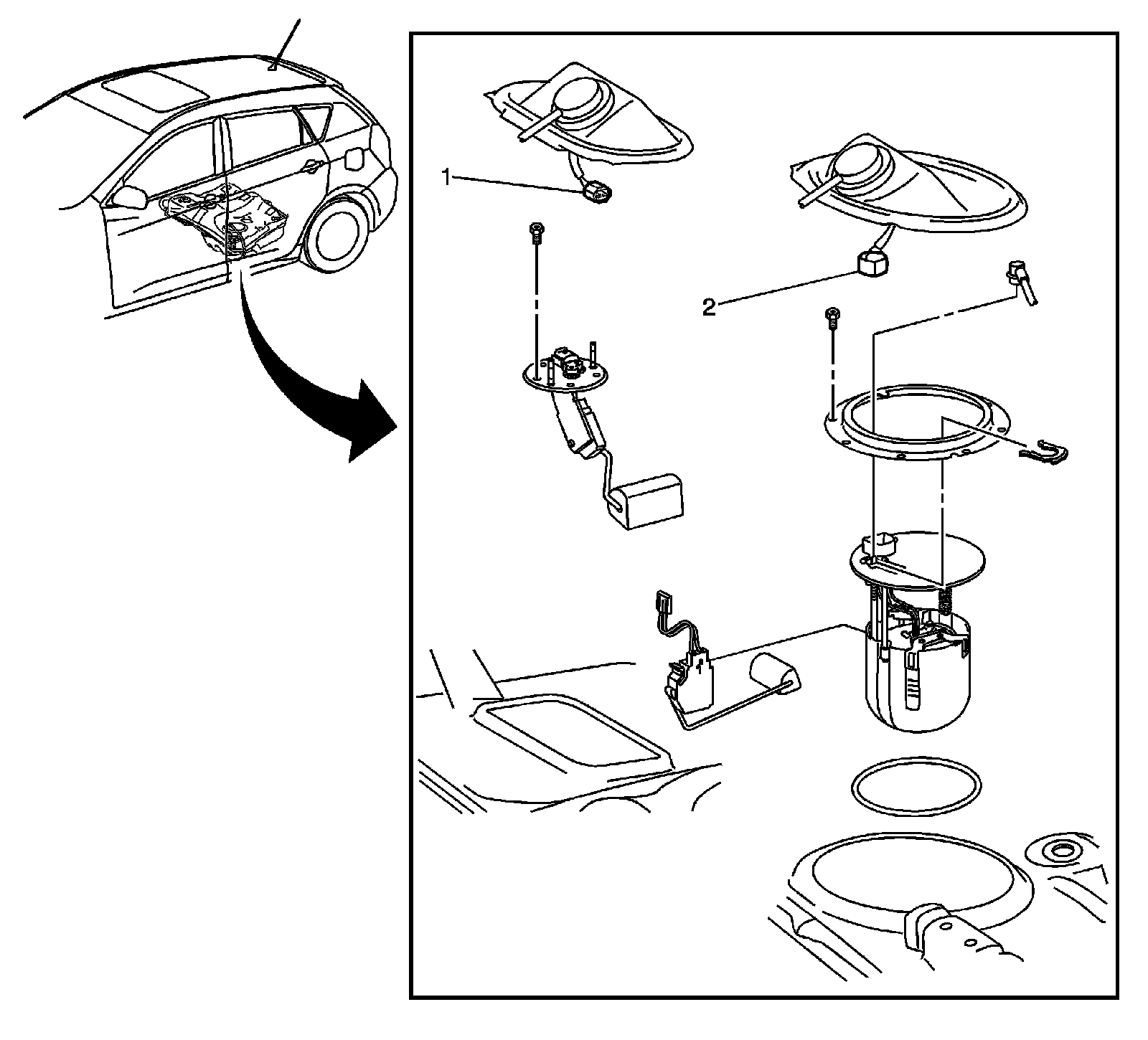

Fuel Tank Components (LAX with F46)




1 - Fuel Pump and Sender Assembly - Secondary (F46)
2 - Fuel Pump and Sender Assembly

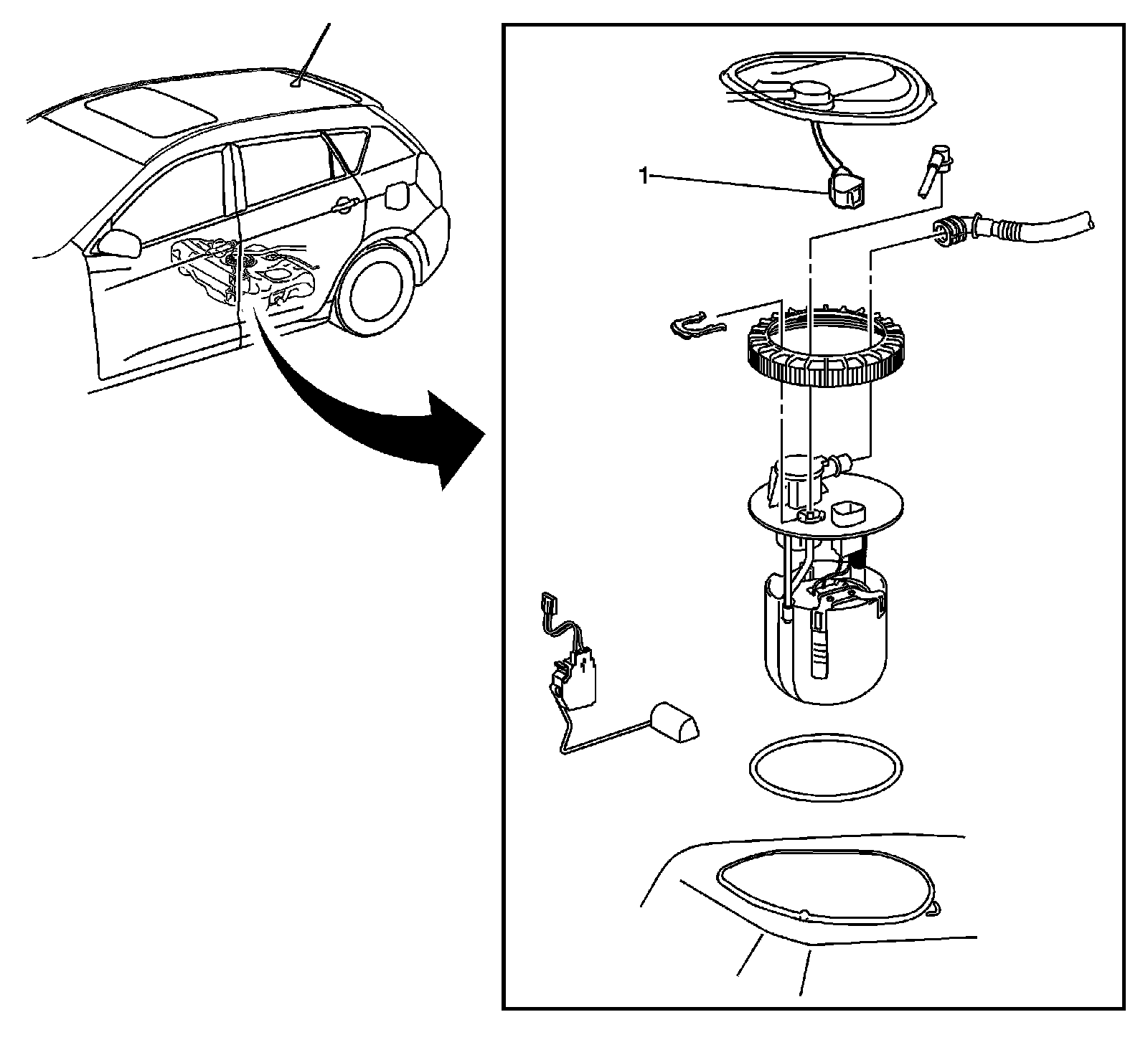

Fuel Tank Components (LAX/LAY without F46)




1 - Fuel Pump and Sender Assembly
