Canister Purge Solenoid: Service and Repair

Evaporative Emission Canister Purge Solenoid Valve Replacement

Removal Procedure

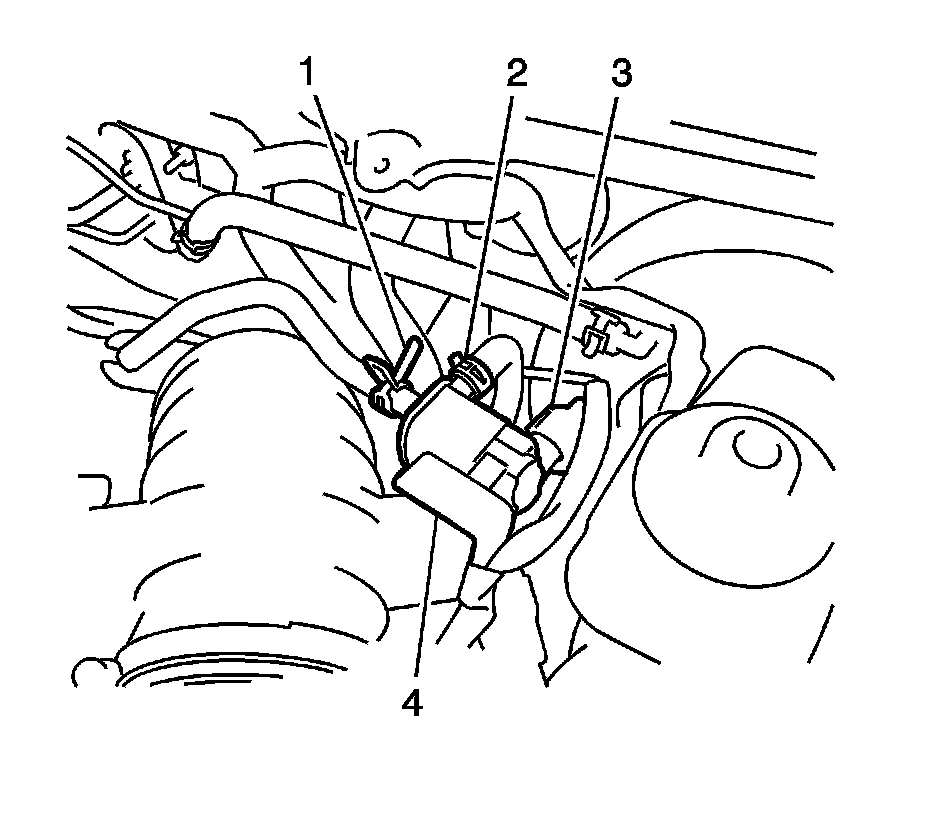

1. Disconnect the vacuum switching valve connector (3).
2. Disconnect the wire harness clamp.
3. Disconnect the 2 purge line hoses (1, 2) from the vacuum switching valve.
4. Remove the vacuum switching valve.

Installation Procedure




1. Install the vacuum switching valve onto the air cleaner hose.
2. Connect the 2 purge line hoses (1, 2) to the vacuum switching valve.
3. Connect the wire harness clamp.
4. Connect the vacuum switching valve connector (3).
