12-Volt Accessory Power Receptacle Replacement

12-Volt Accessory Power Receptacle Replacement

Removal Procedure

1. Remove the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
2. Remove the no. 2 switch hole base.

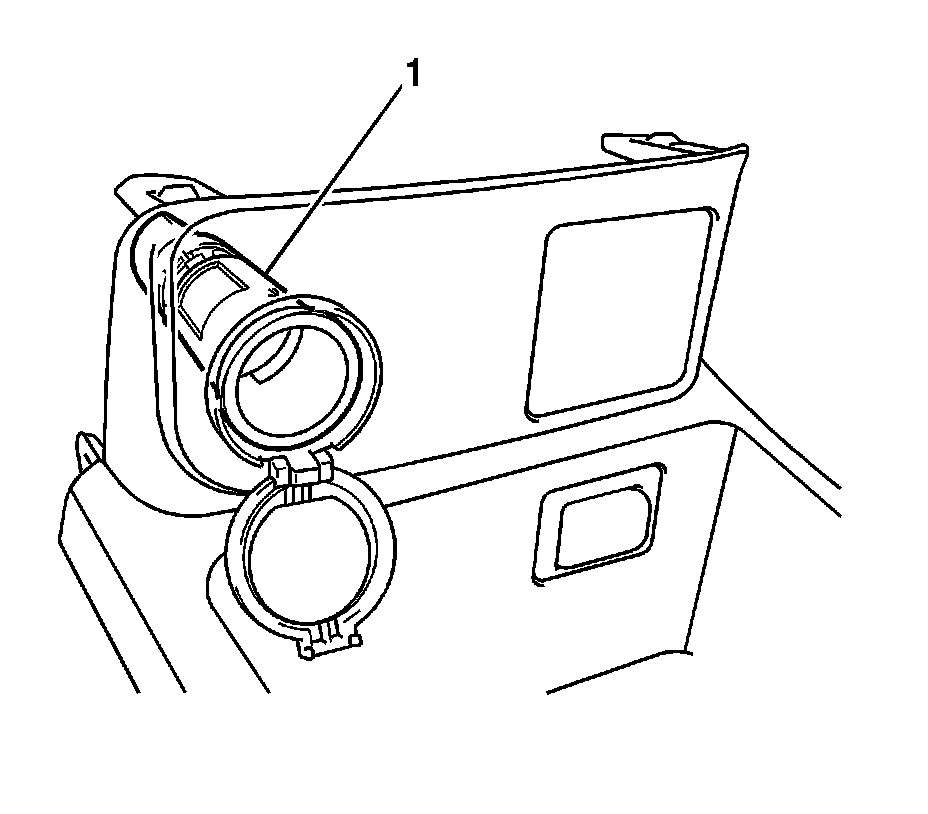

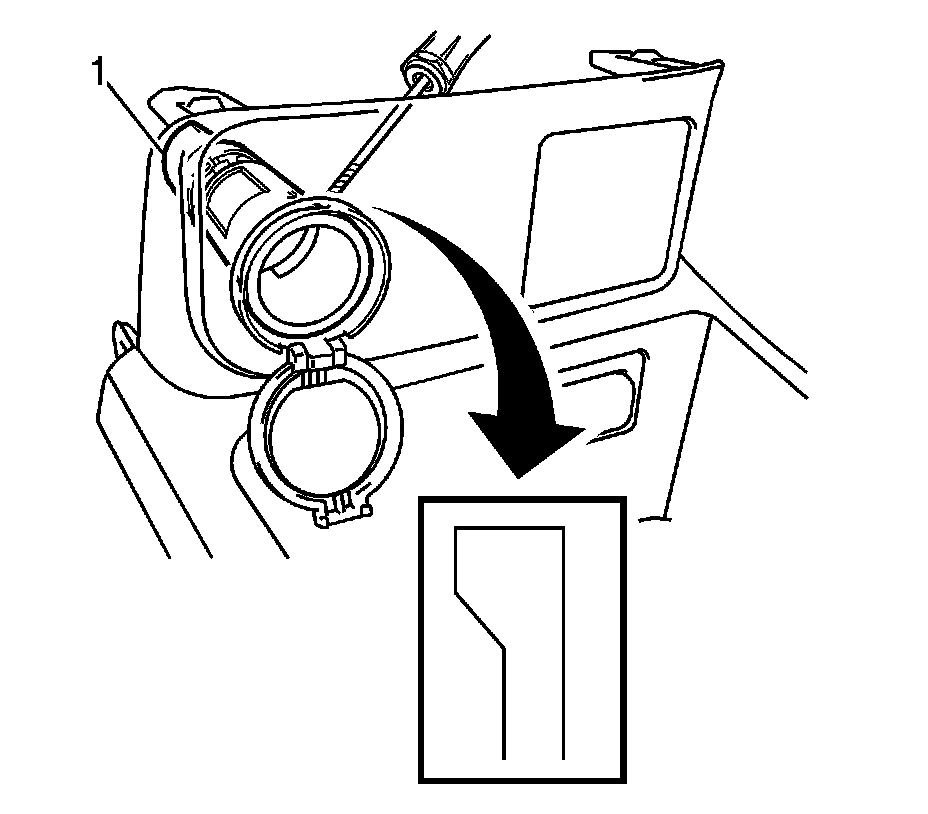

3. Disengage the claw and remove the power point socket assembly (1).

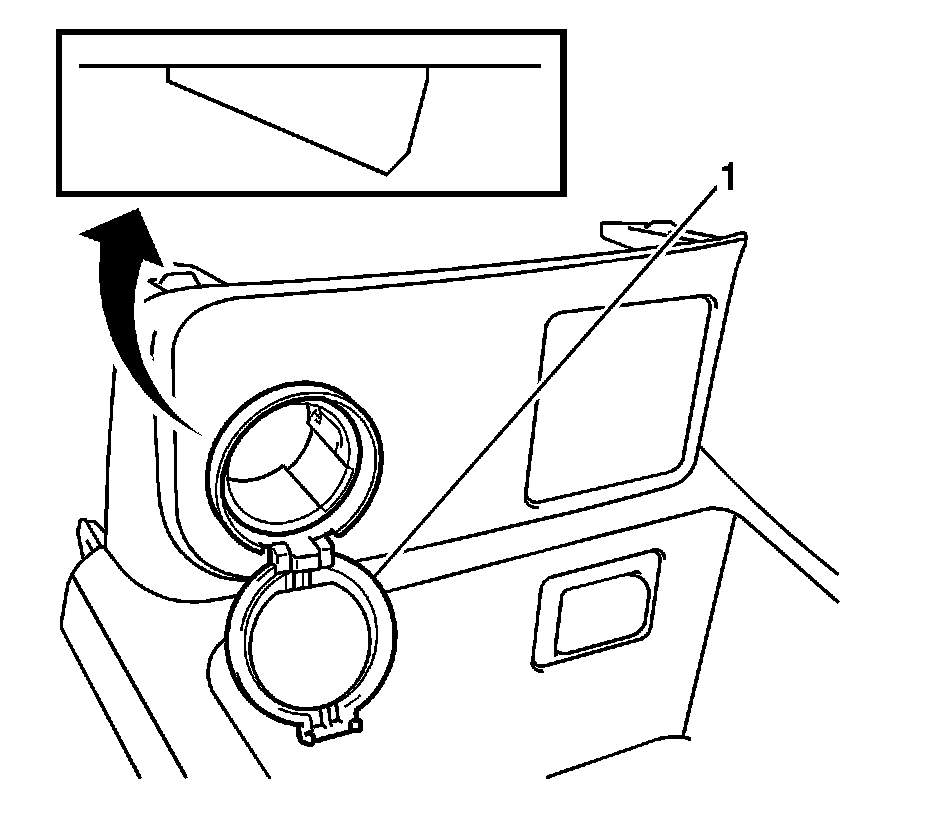

4. Disengage the 2 claws and remove the power outlet socket cover (1).

Installation Procedure




1. Engage the 2 claws and install the power outlet socket cover (1).




2. Engage the claw and install the power point socket assembly (1).
3. Install the no. 2 switch hole base.
4. Install the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
