Rear Turn Signal Lamp Bulb Replacement

Rear Turn Signal Lamp Bulb Replacement

Removal Procedure




1. Open the liftgate.
2. Disengage the retainers and remove the rear tail lamp access panel.

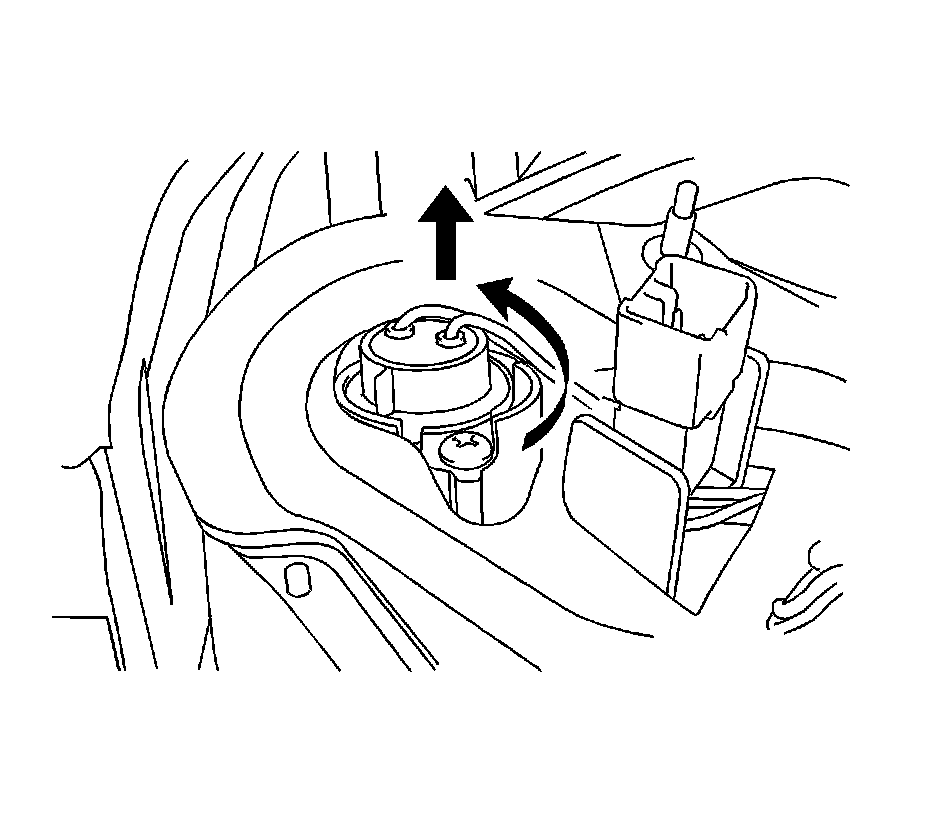

3. Turn the rear turn signal lamp bulb socket counter clockwise and remove from tail lamp.
4. Remove the rear turn signal lamp bulb from the turn signal lamp socket.

Installation Procedure




1. Install the turn signal lamp bulb to the turn signal lamp socket.
2. Install the turn signal lamp socket to the tail lamp, by turning clockwise.




3. Engage the retainers and install the rear tail lamp access panel.
4. Close the liftgate.
