Instrument Cluster Lens Replacement

Instrument Cluster Lens Replacement

Removal Procedure




1. Remove the instrument cluster assembly. Refer to Instrument Cluster Replacement (Instrument Cluster Replacement).

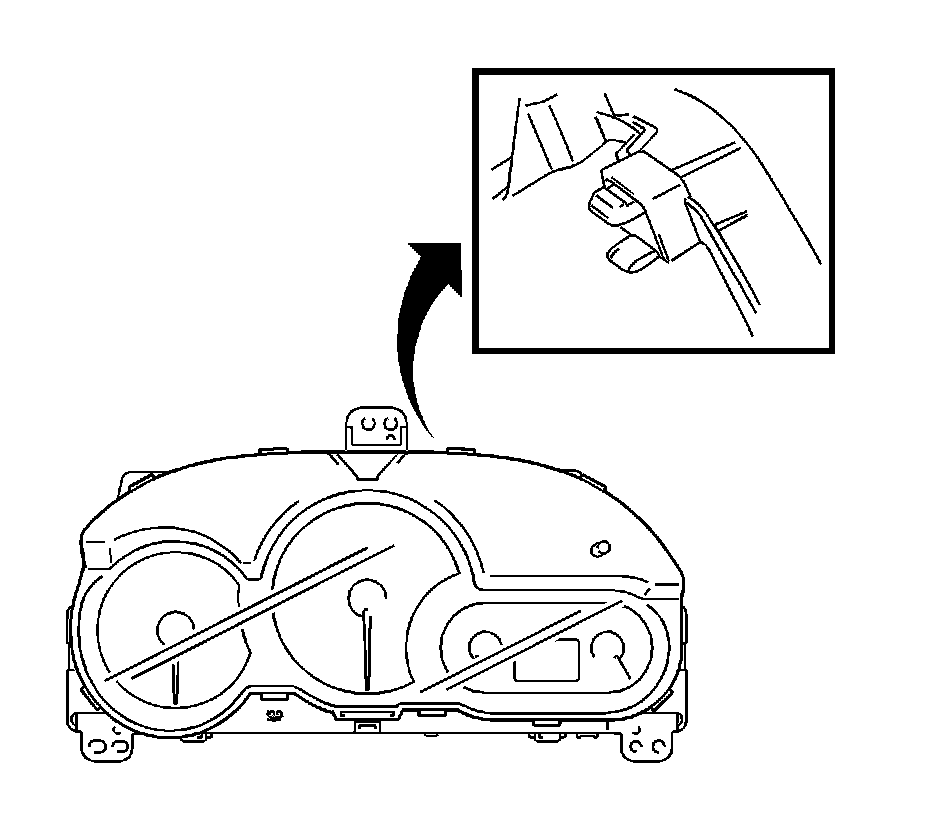

2. Disengage the nine locking tabs and remove the instrument cluster lens.

Installation Procedure




1. Align the instrument cluster lens onto the guide pins and install the lens to the cluster retainer. Make sure that the locking tabs are fully engaged.
2. Install the instrument cluster assembly. Refer to Instrument Cluster Replacement (Instrument Cluster Replacement).
