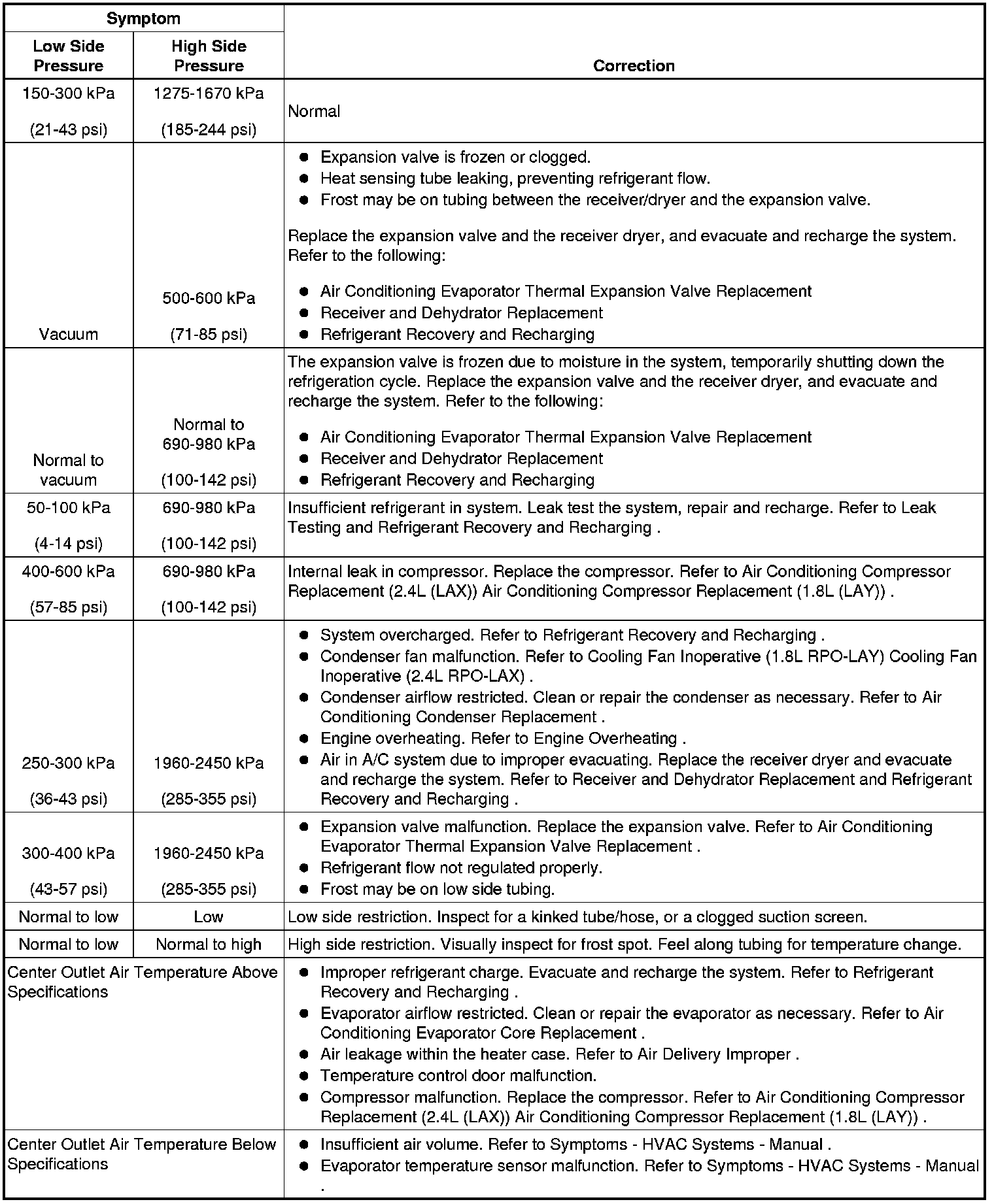

TXV Air Conditioning (A/C) System Diagnosis (Reference Table)




TXV Air Conditioning (A/C) System Diagnosis (Reference Table)
