Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

Special Tools
* J-8614-01 - Flange and Pulley Holding Tool
* J-22928-B - Seal Installer
* J-42176 - Universal Driver Handle - Non-Threaded

Removal Procedure

1. Remove the automatic transaxle assembly. Refer to Transmission Disassemble (2. Transmission Disassemble) , Transmission Replacement () for the MVB 4 speed transmission or Transmission Replacement () for the MVD 5 speed transmission.
2. Remove the manual transaxle assembly. Refer to Transmission Replacement (Transmission Replacement) for the MVC 5 speed transmission or Transmission Replacement (Transmission Replacement) for the MVE 5 speed transmission.
3. Remove the clutch cover and disc assembly (for manual transaxle).




4. Using J-8614-01 - holding tool , hold the crankshaft.

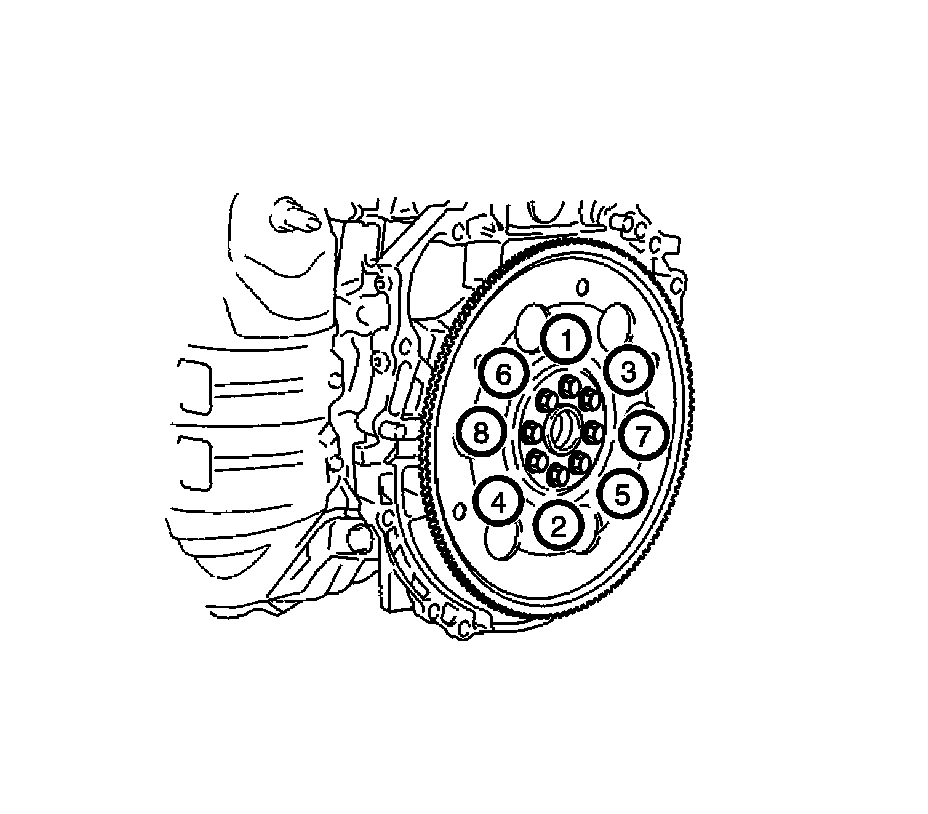

5. For automatic transmissions, remove the 8 bolts (1-8), rear drive plate spacer, drive plate and front drive plate spacer.




6. For manual transmissions, remove the 8 bolts (1-8) and flywheel.




7. Using a knife, cut off the lip of the oil seal (1).

Note:
* After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.
* Tape the screwdriver tip before use.

8. Using a screwdriver, pry out the oil seal.

Installation Procedure

1. Apply MP grease to the lip of a new rear crankshaft oil seal.





Note: Keep the lip free from foreign matter. Do not tap on the oil seal at an angle.

2. Using the J-22928-B - installer and a hammer (1, 2), tap in the rear crankshaft oil seal until its surface is flush with the rear oil seal retainer edge.
3. For automatic transaxle, clean the 8 bolts and 8 bolt holes.
4. Apply adhesive to 2 or 3 threads of the 8 bolts.




5. Using the J-8614-01 - holding tool , hold the crankshaft.

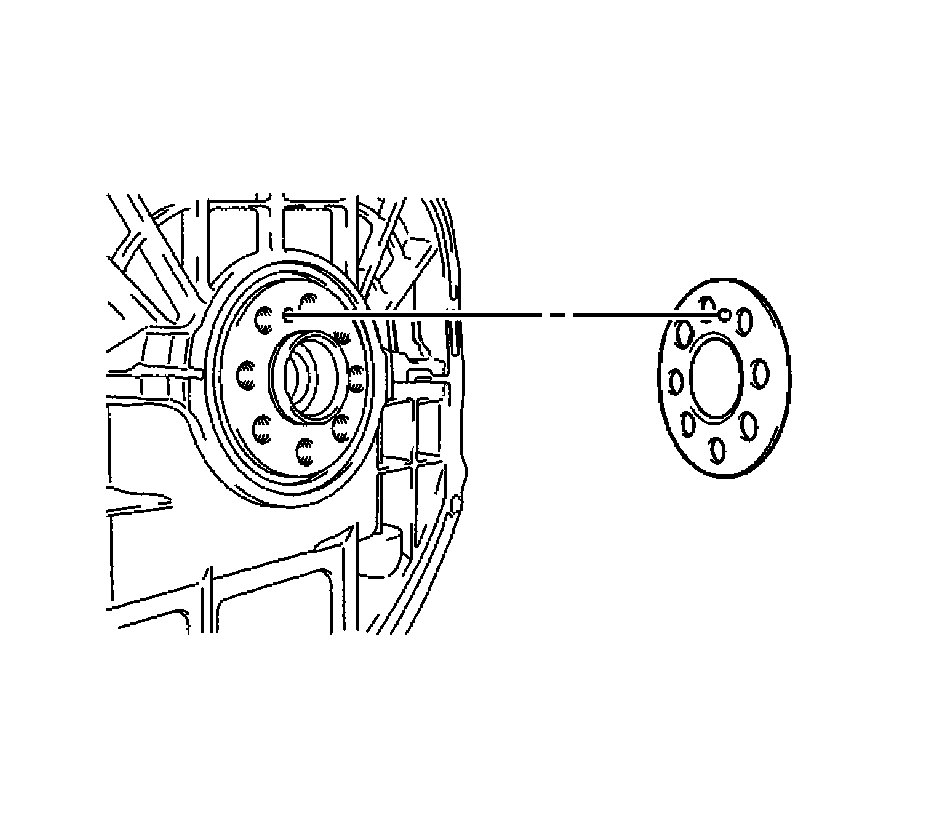

Note: Align the pin of the front spacer with the pin hole of the crankshaft.

6. Install the front drive plate spacer.

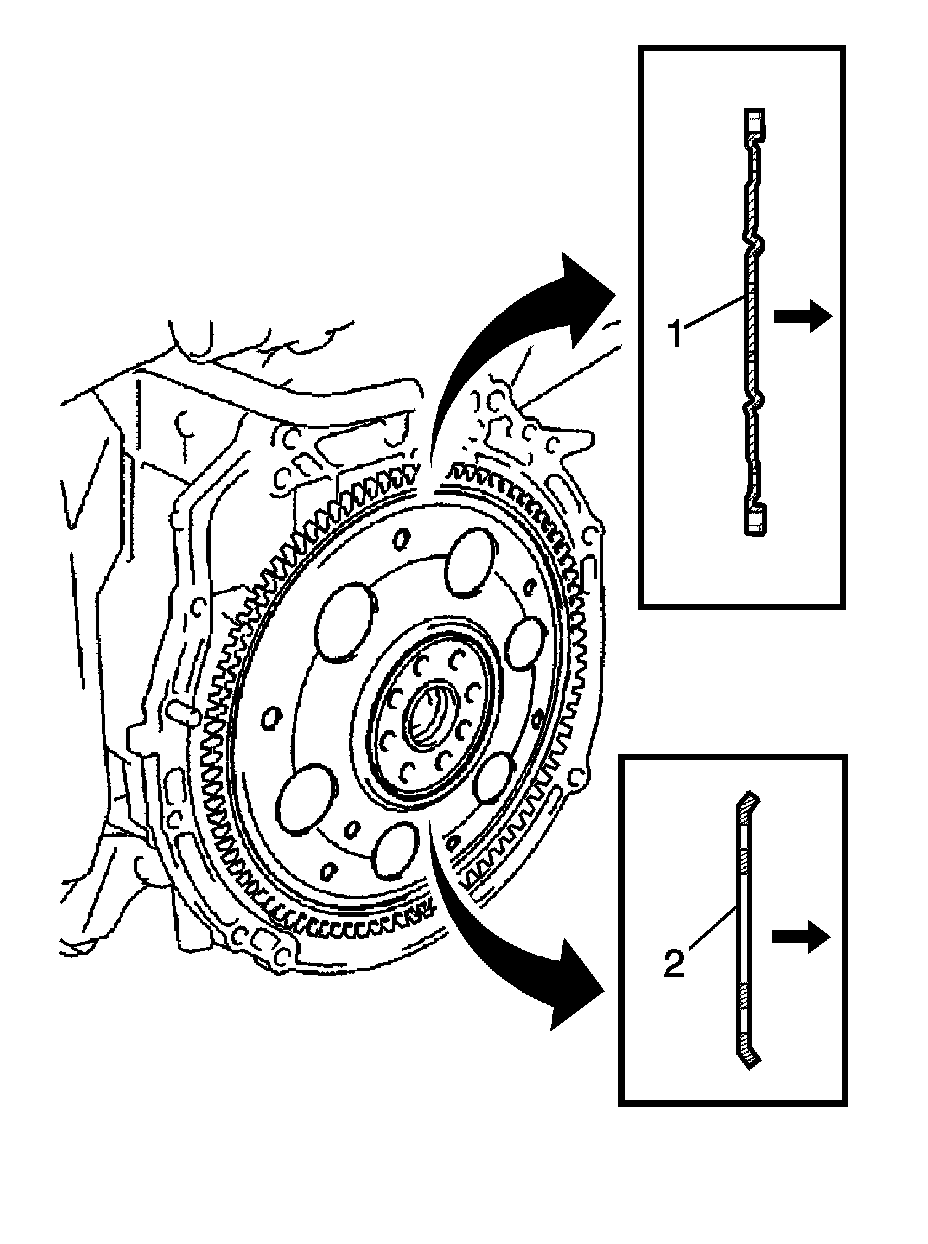

7. Install the drive plate (1) and rear drive plate spacer (2) onto the crankshaft.





Caution: Refer to Fastener Caution (Fastener Caution).

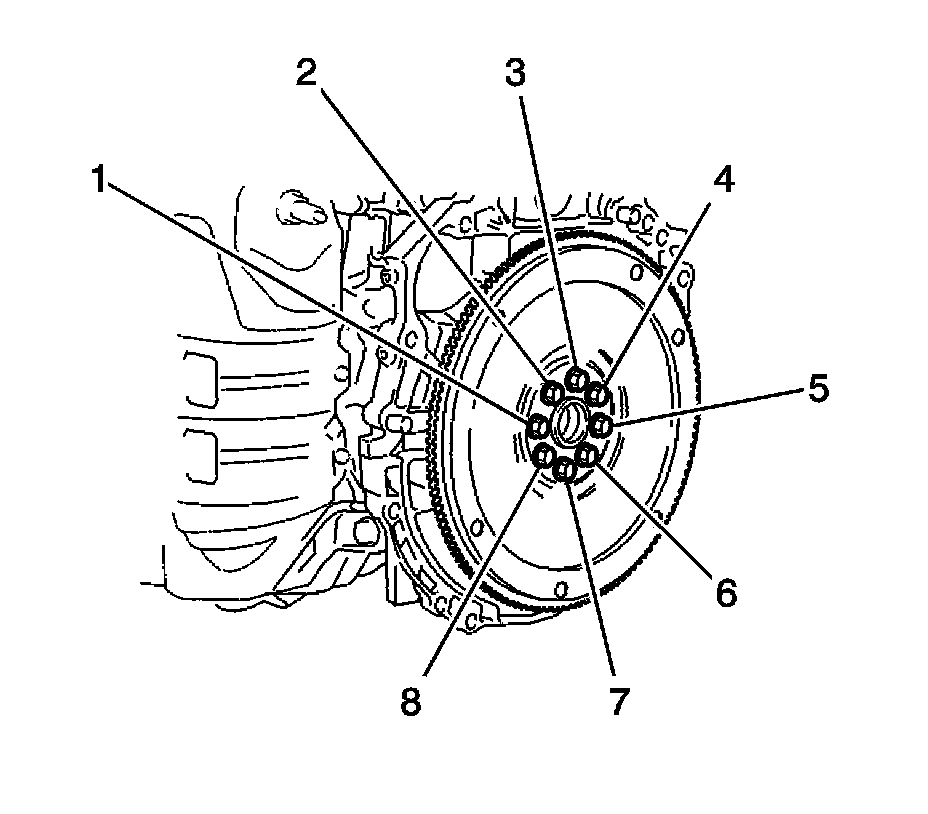

8. In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration to 98 Nm (72 lb ft).
9. For manual transaxle, clean the 8 bolts and 8 bolt holes.
10. Apply adhesive to the end 2 or 3 threads of the 8 bolts.

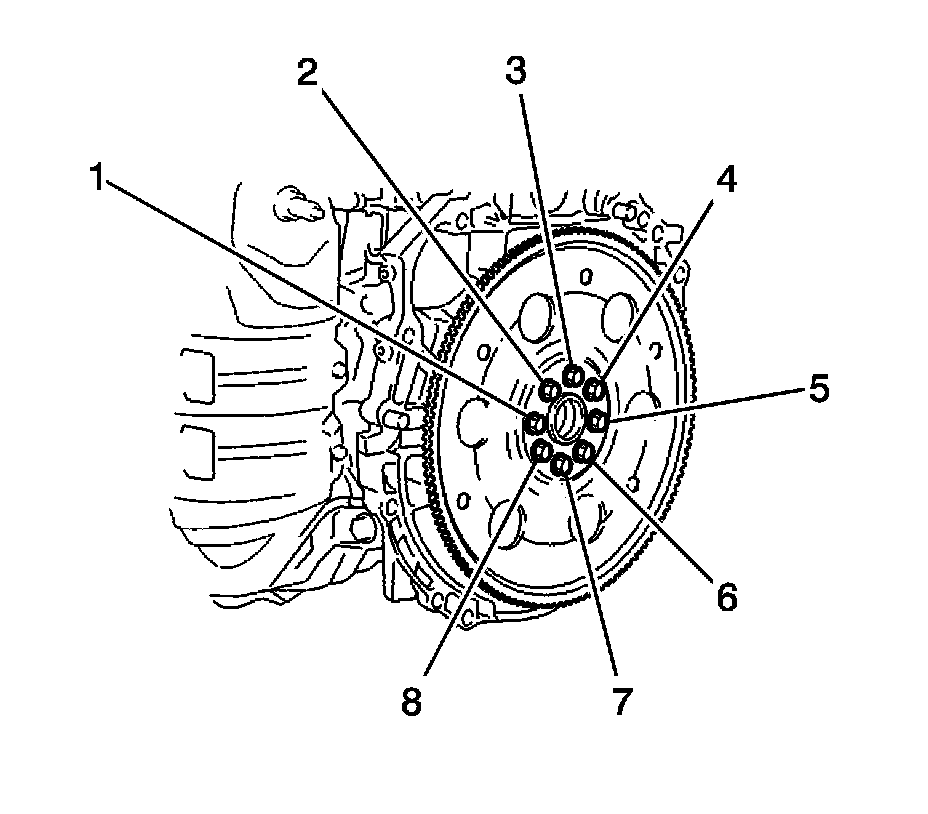

11. In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration to 130 Nm (96 lb ft).
12. Install the clutch disc assembly (for manual transaxle).
13. Install the clutch cover assembly (for manual transaxle).
14. Install the automatic transaxle assembly. Refer to Transmission Disassemble (2. Transmission Disassemble) , Transmission Replacement () for the MVB 4 speed transmission or Transmission Replacement () for the MVD 5 speed transmission.
15. Install the manual transaxle assembly. Refer to Transmission Replacement (Transmission Replacement) for the MVC 5 speed transmission or Transmission Replacement (Transmission Replacement) for the MVE 5 speed transmission.
