Underdrive Clutch Drum Sub-Assembly

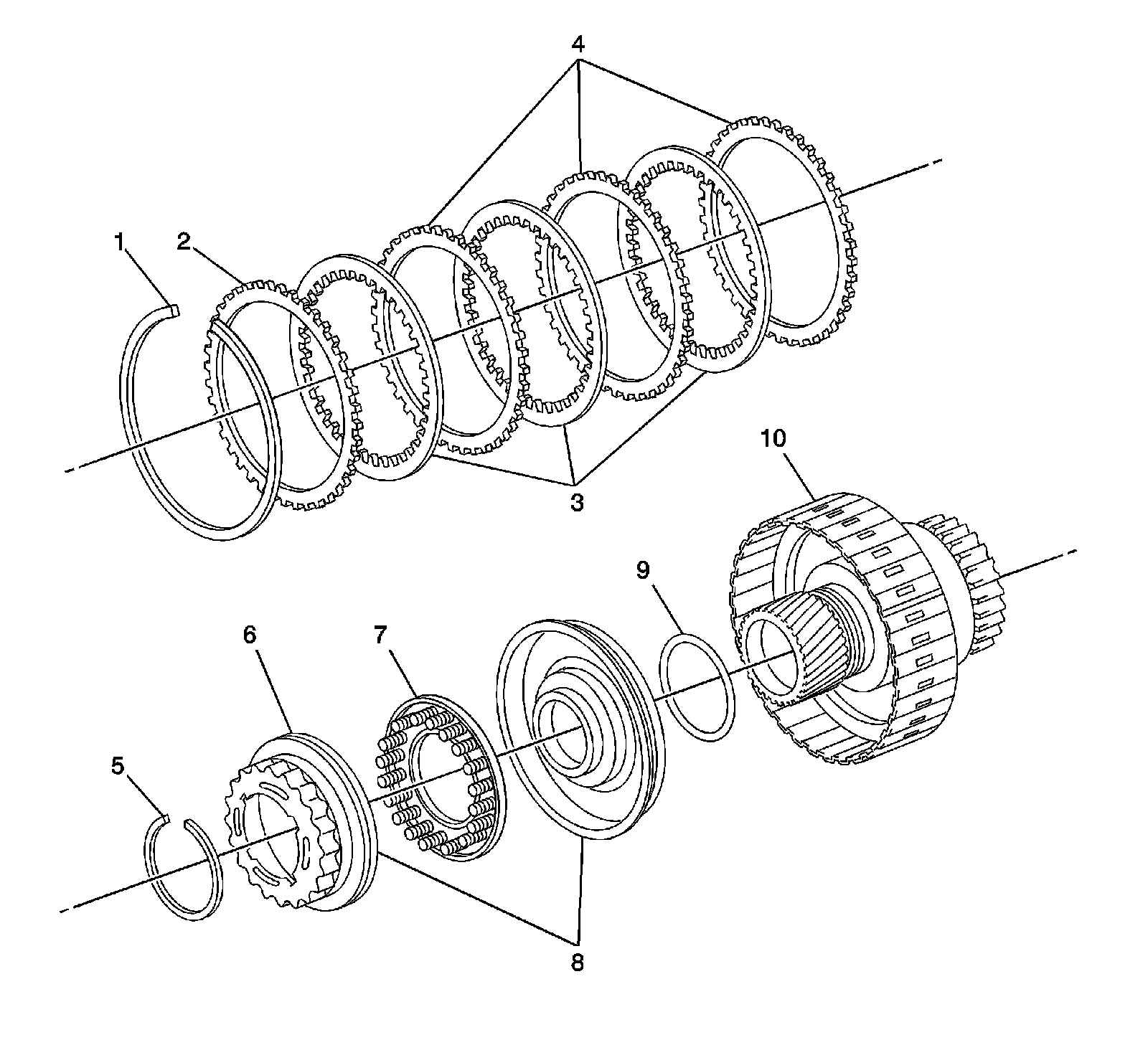

Disassembled Views

Underdrive Clutch Drum Sub-Assembly




1 - No. 2 Underdrive Clutch Flange Hole Snap Ring
2 - No. 1 Underdrive Clutch Flange
3 - No. 1 Underdrive Clutch Disc
4 - No. 1 Underdrive Clutch Plate
5 - Underdrive Return Spring Shaft Snap Ring
6 - Clutch Balancer
7 - Underdrive Clutch Return Spring Sub-Assembly
8 - Underdrive Clutch Piston Set
9 - Underdrive Clutch Drum O-Ring
10 - Underdrive Clutch Drum Sub-Assembly
