Valve Body and Related Components

Disassembled Views

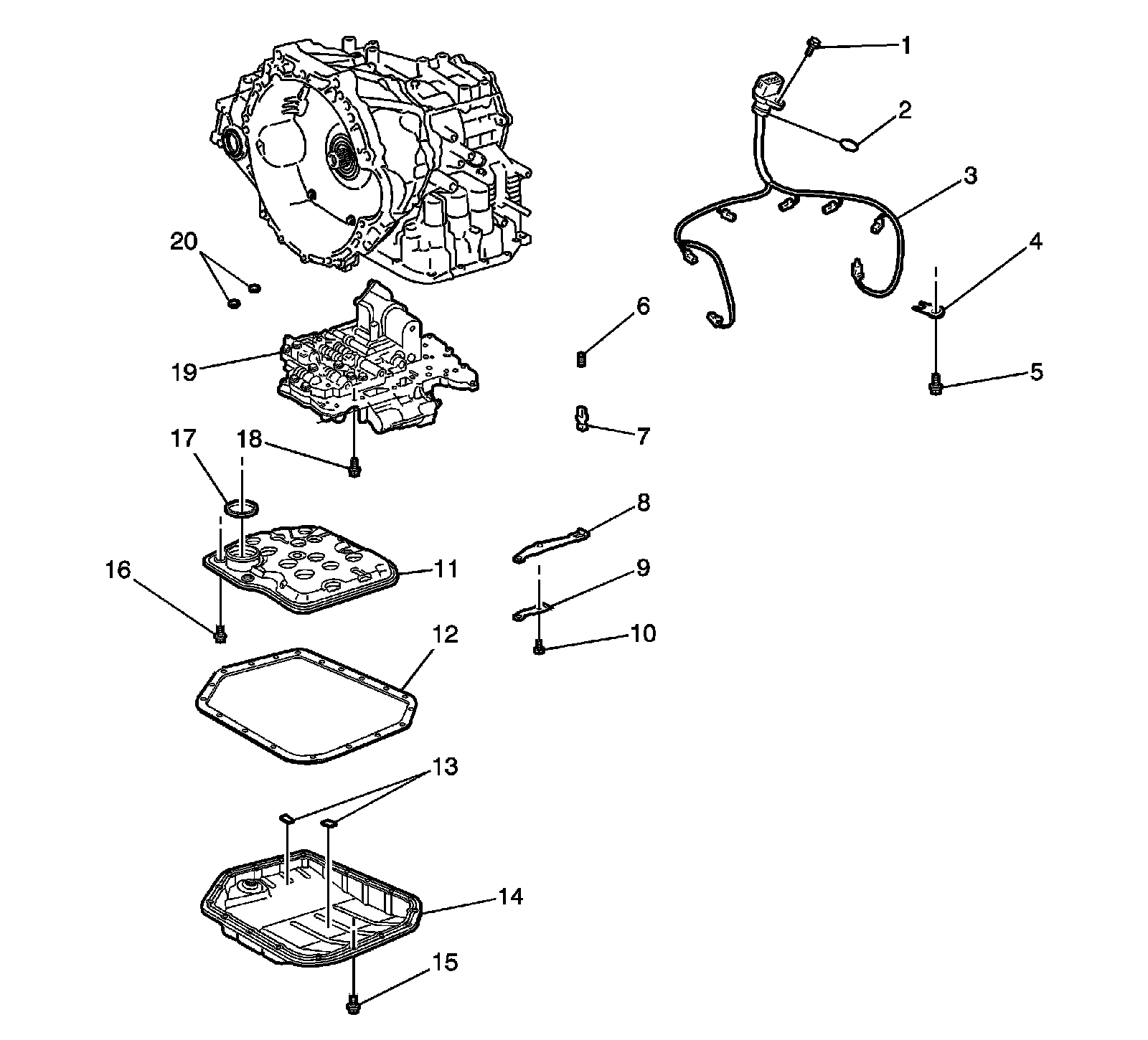

Valve Body and Related Components




1 - Bolt
2 - O-ring
3 - Transmission Wire
4 - Lock Plate
5 - Bolt
6 - Check Ball Body Spring
7 - Check Ball Body
8 - Manual Detent Spring
9 - Manual Detent Spring Cover
10 - Bolt
11 - Valve Body Oil Strainer Assembly
12 - Oil Pan Gasket
13 - Magnet
14 - Automatic Transaxle Oil Pan Sub-Assembly
15 - Bolt
16 - Bolt
17 - Oil Strainer Gasket
18 - Bolt
19 - Transmission Valve Body Assembly
20 - Transaxle Case 2nd Brake Gasket
