Information Bus





Data Communication Schematics

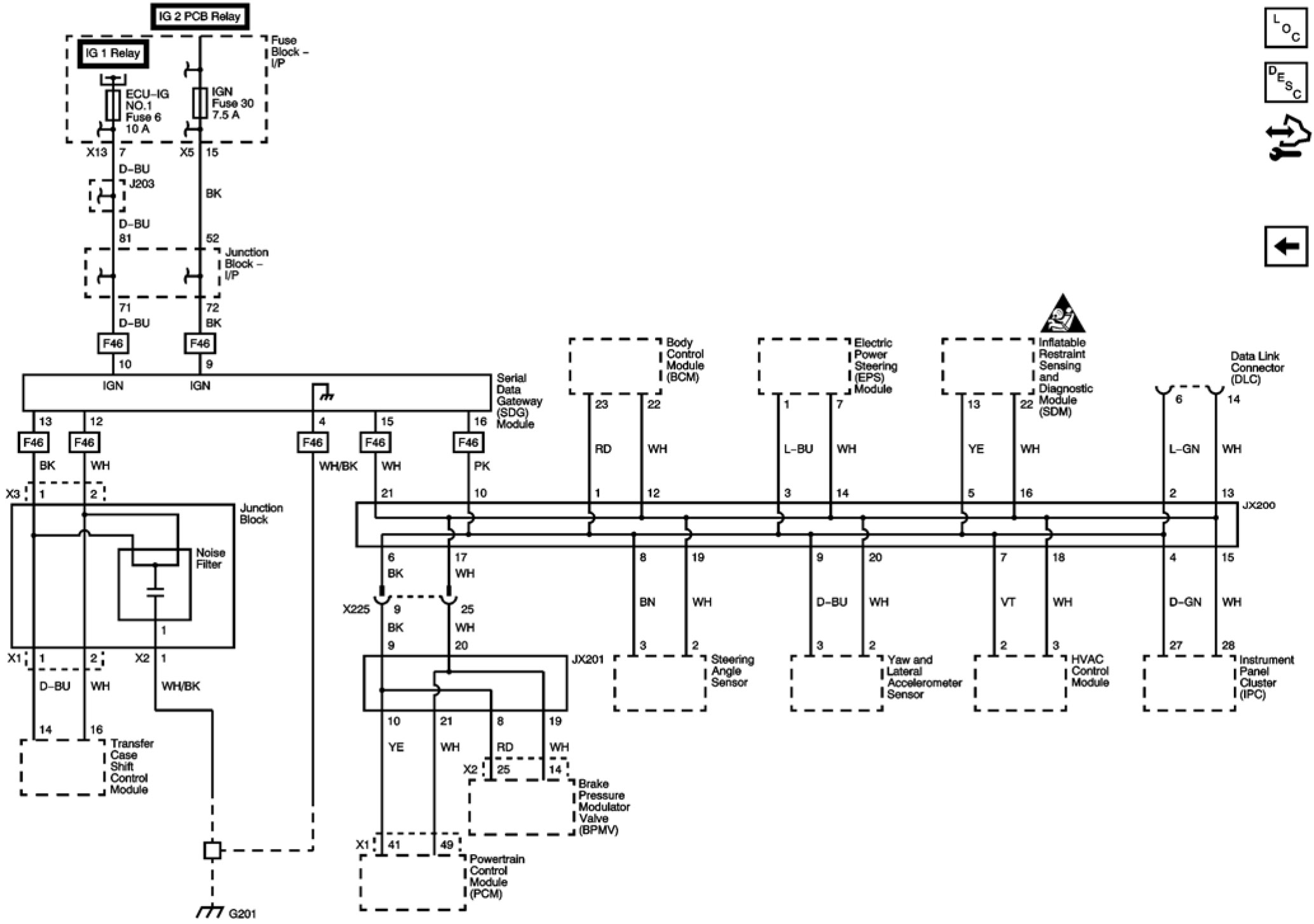

Power, Ground, and Low Speed GMLAN Serial Data






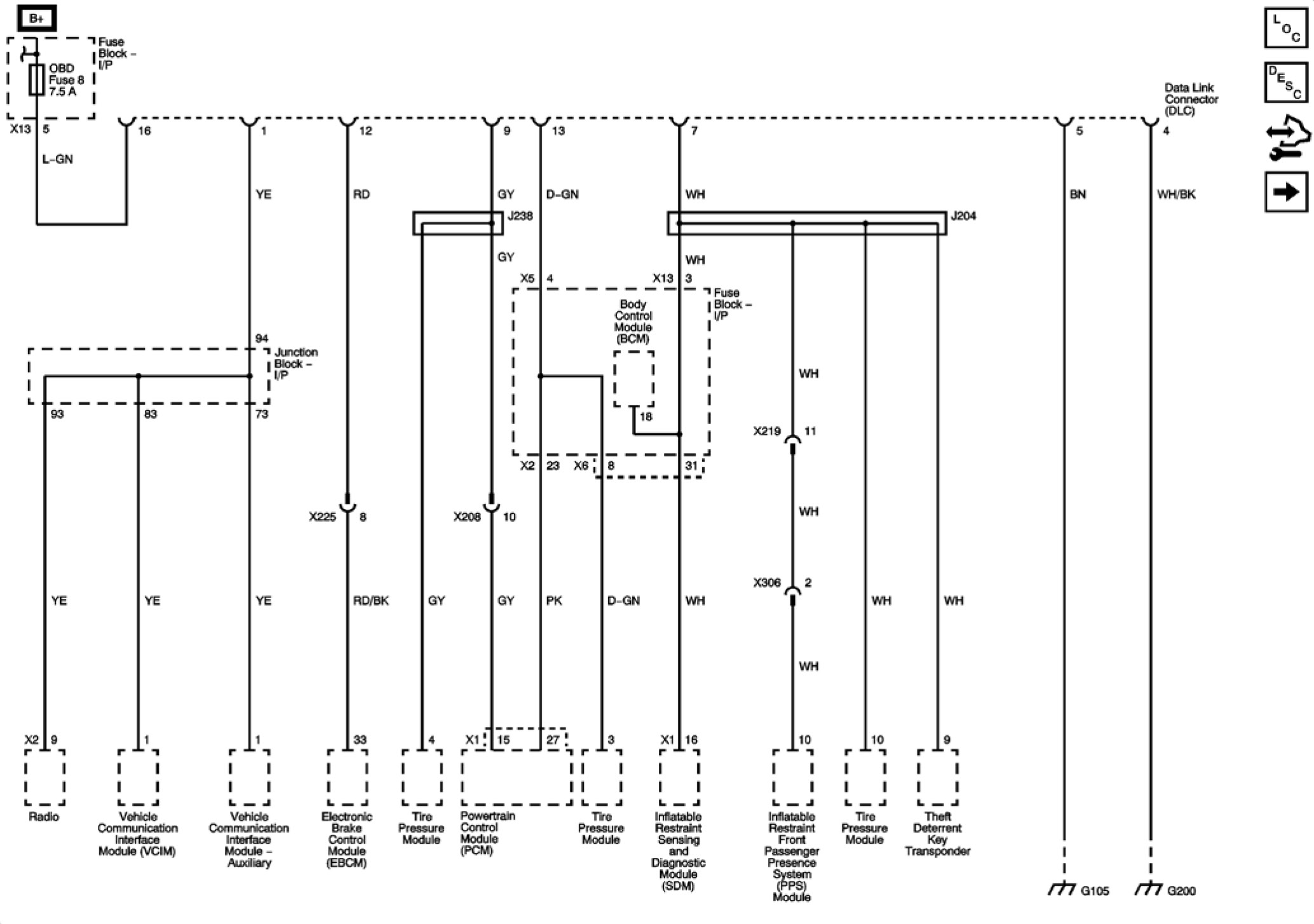

High Speed GMLAN Serial Data
