Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> System Diagram

System Diagram




Door Lock/Indicator Schematics

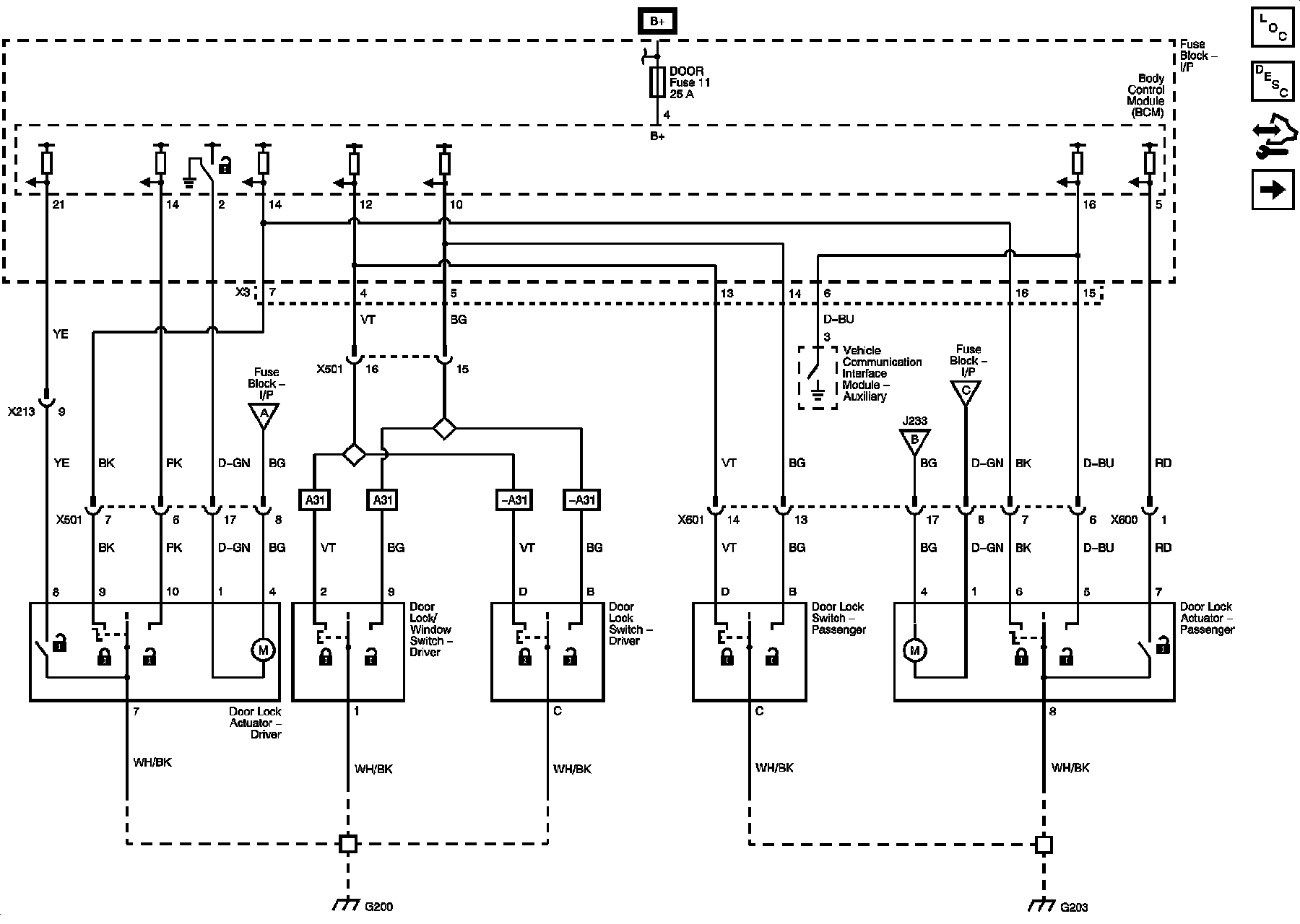

Door Locks 1 of 2

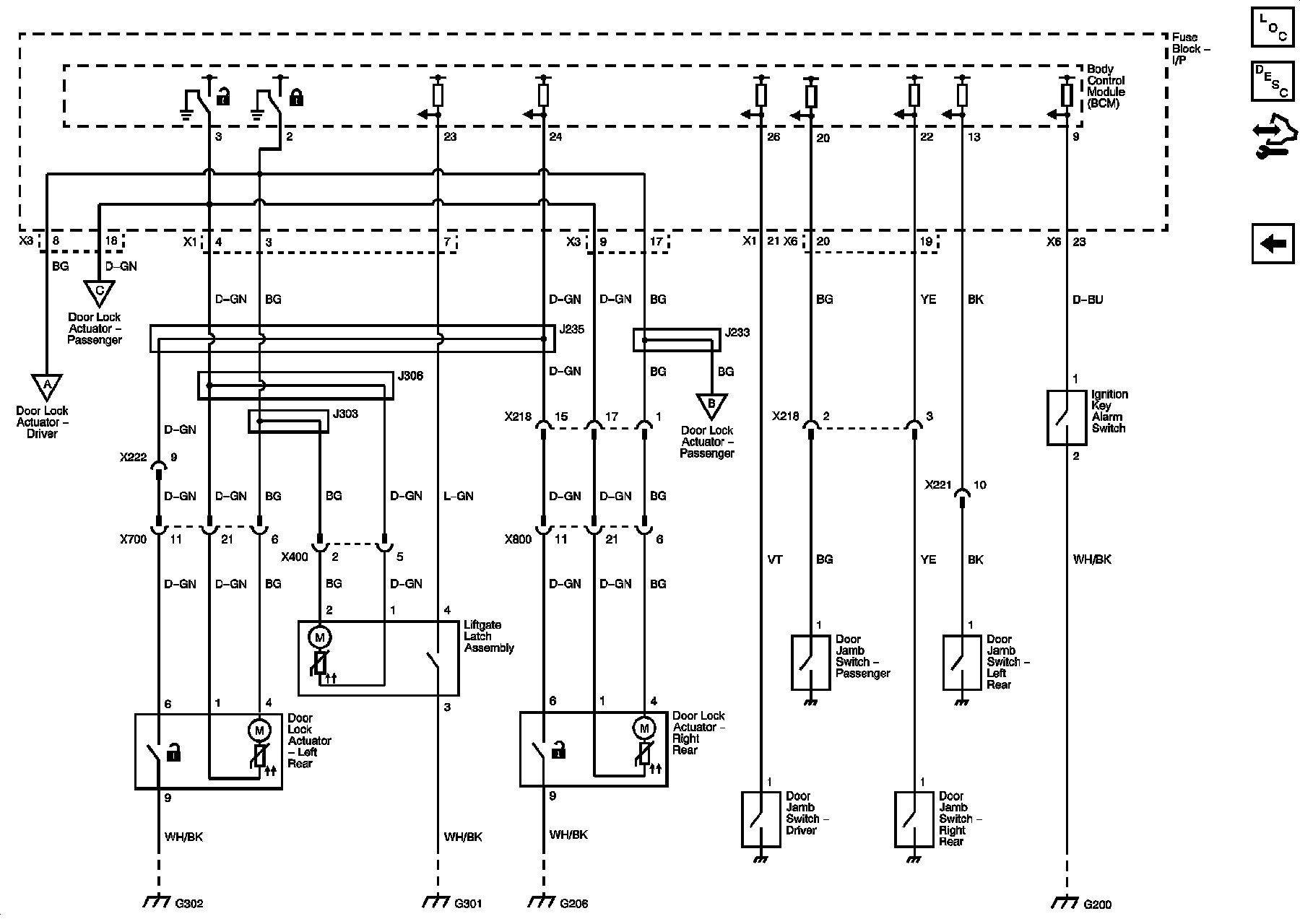

Door Locks 2 of 2
