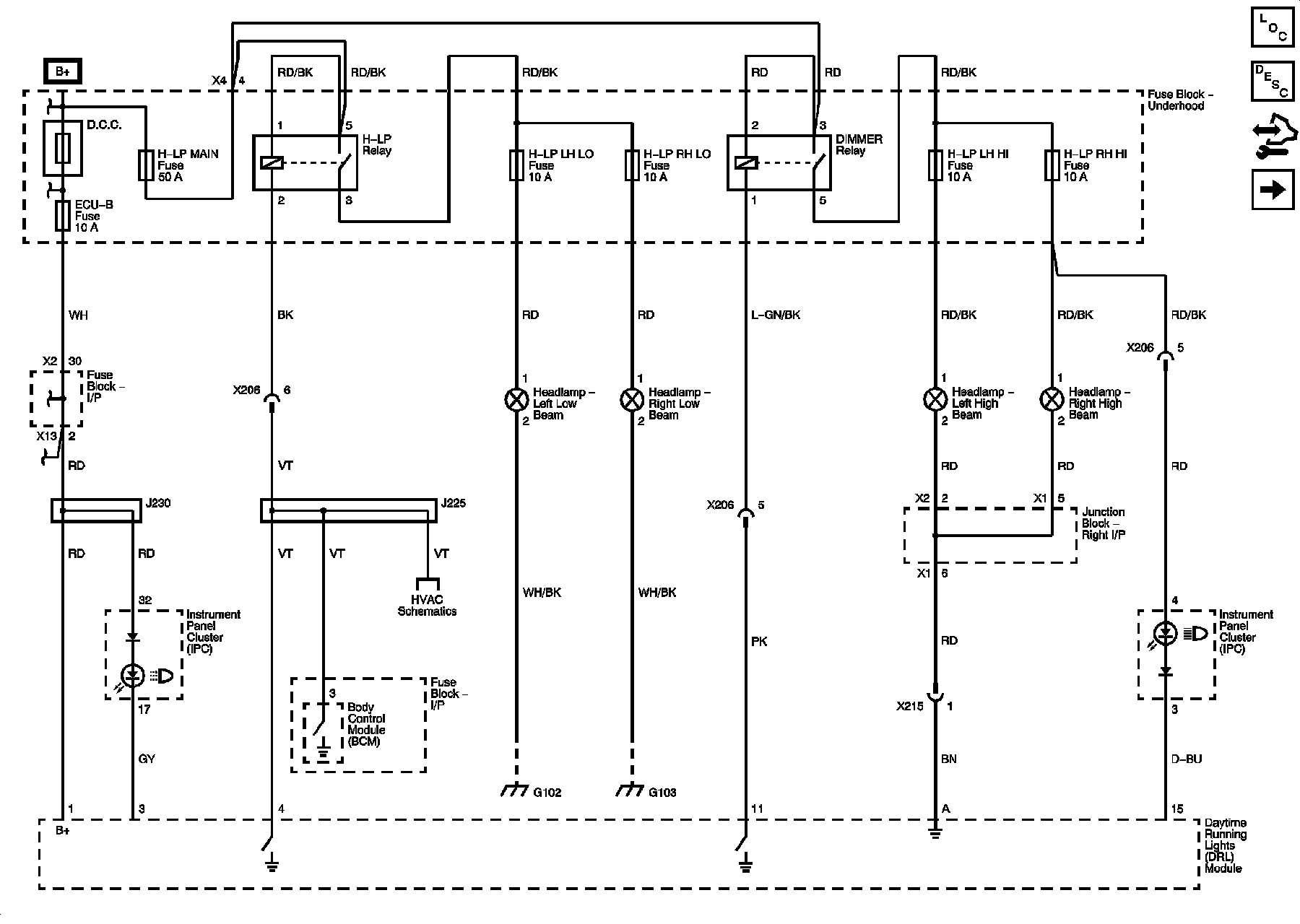

Headlights Schematic 1




Headlights/Daytime Running Lights (DRL) Schematics

Headlamps, Daytime Running Lamps (DRL) Control Module
