Instrument Cluster Schematics




Instrument Cluster Schematics

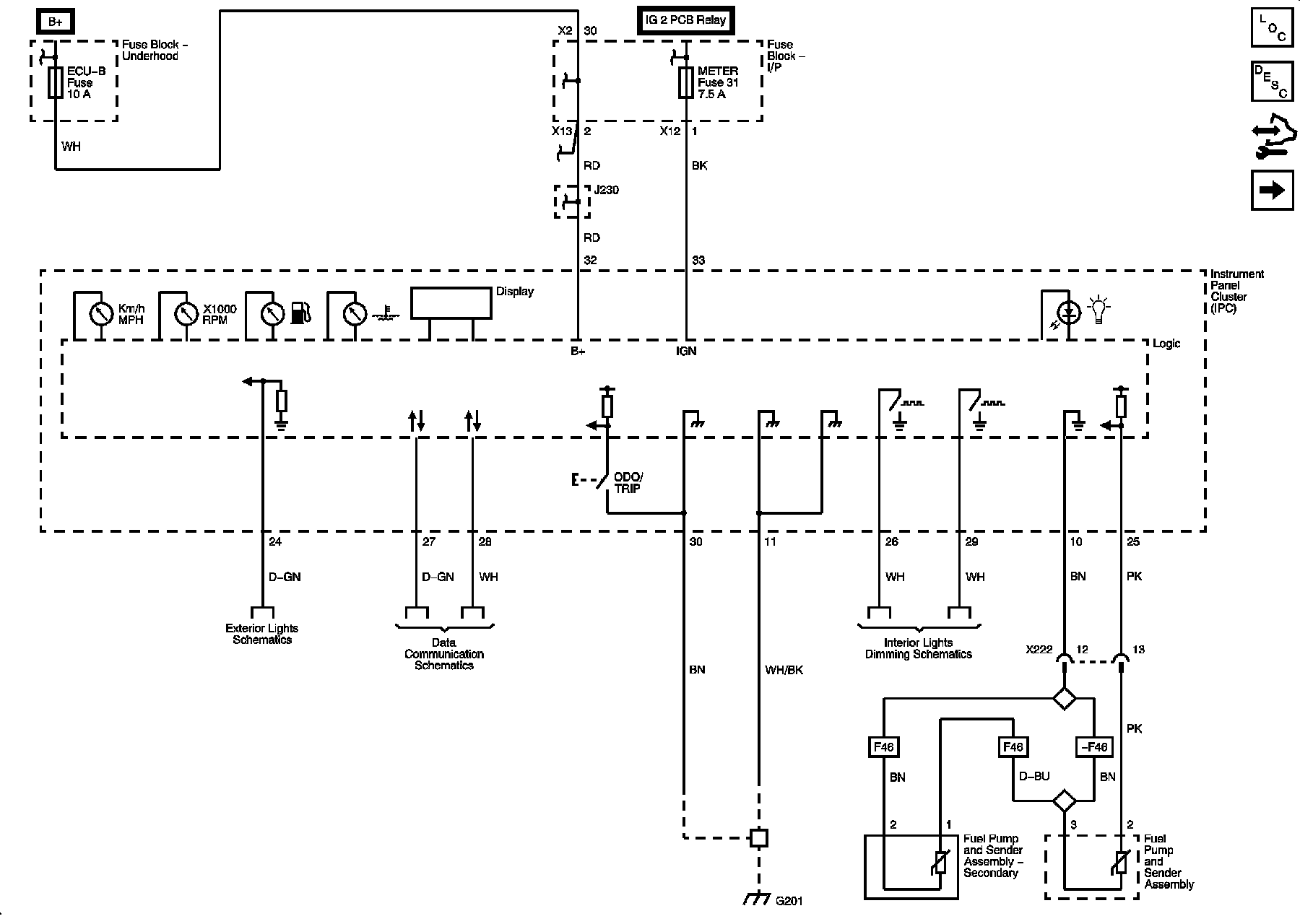

Power, Ground, Serial Data, and Indicators (1 of 3)

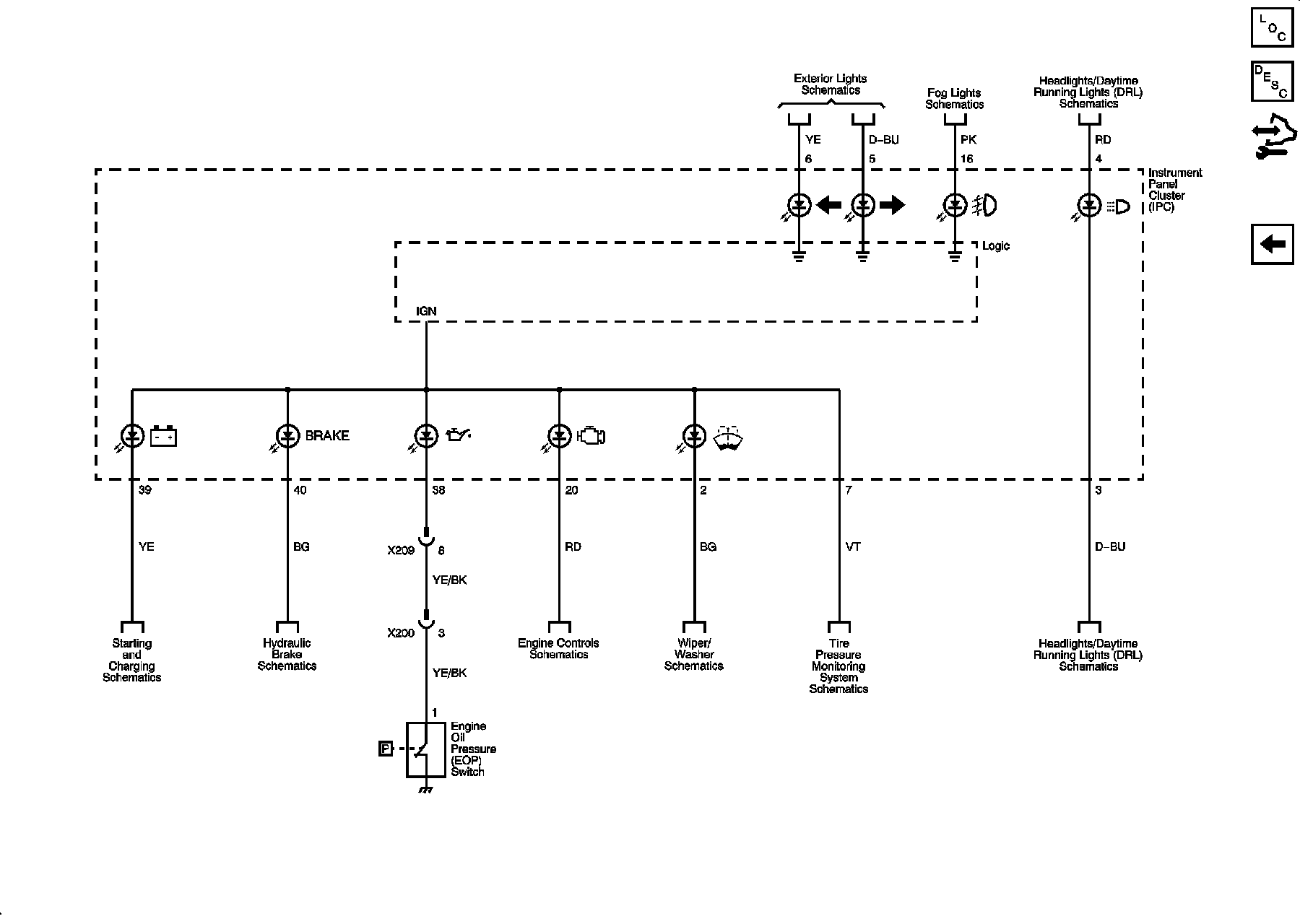

Indicators (2 of 3)

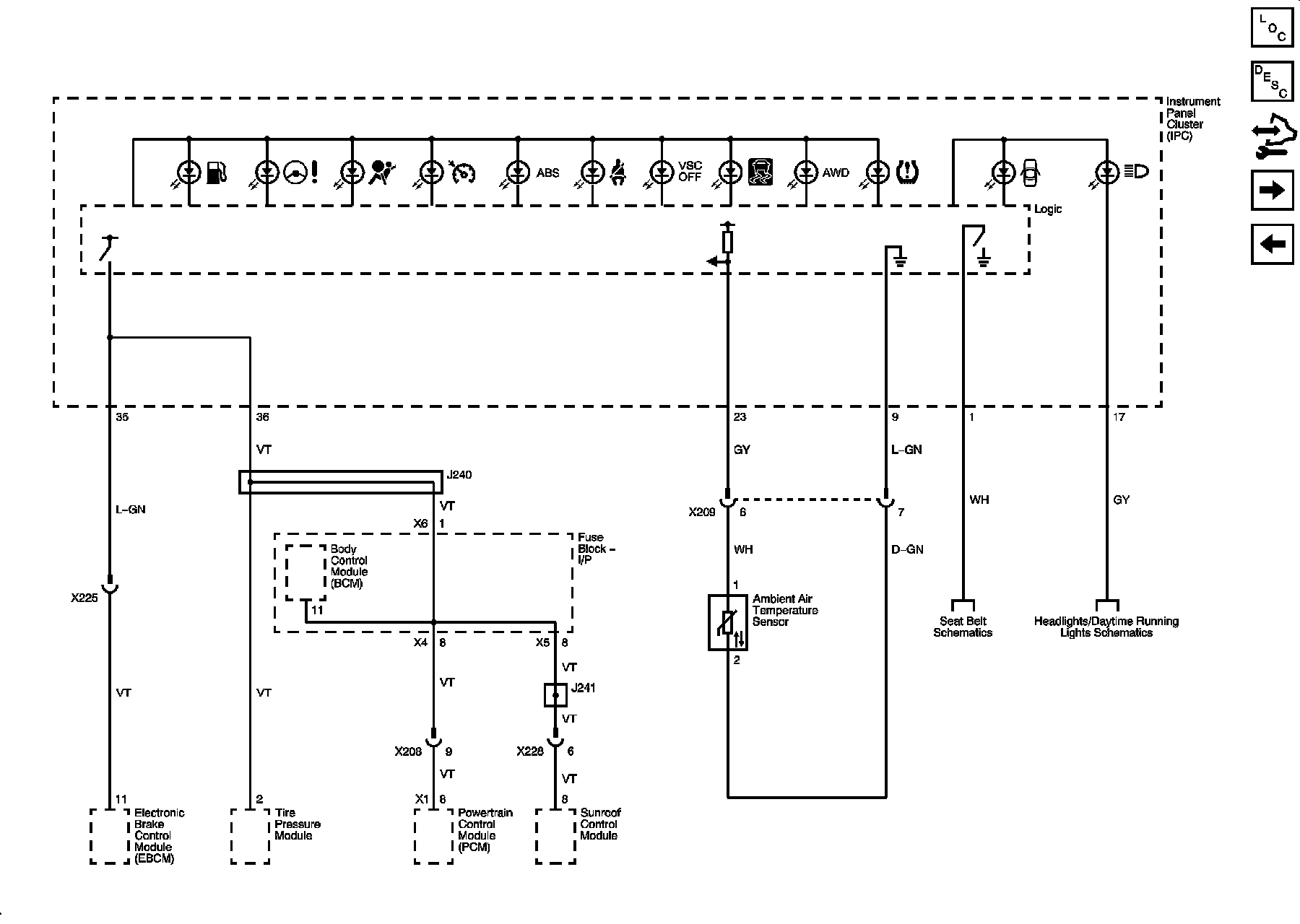

Indicators (3 of 3)
