MVD 5 Speed - Automatic Transmission

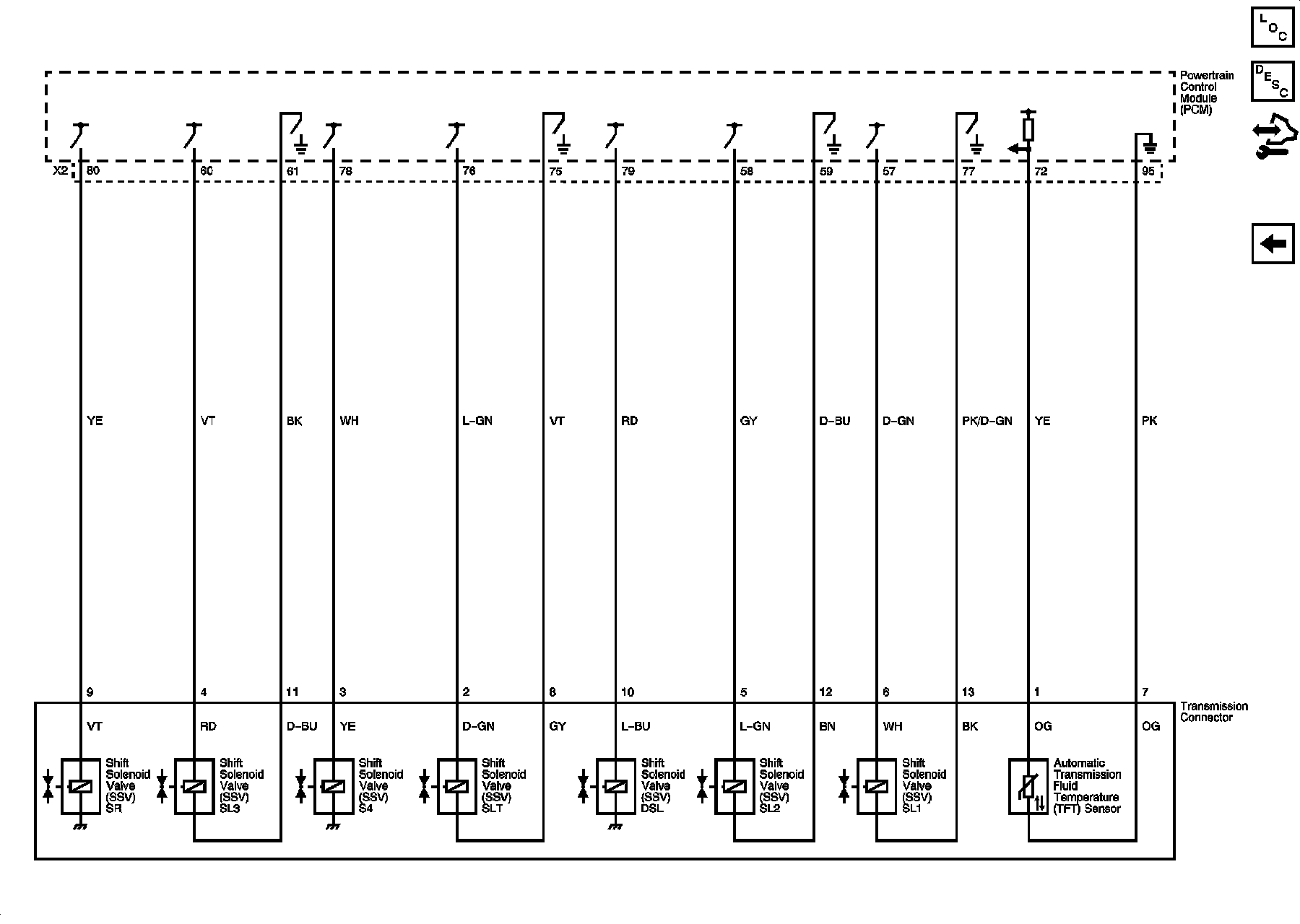

Automatic Transmission Controls Schematics

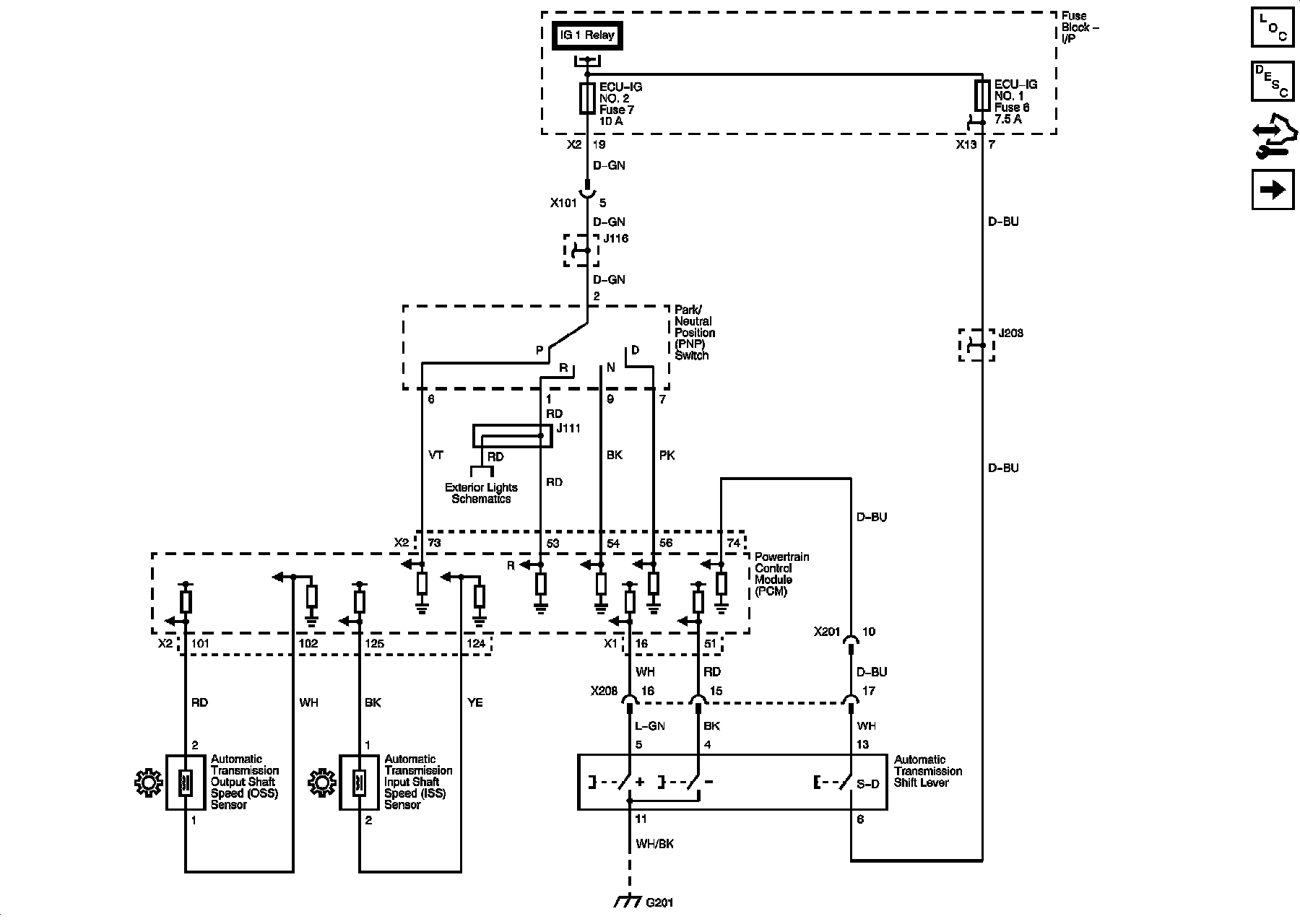

Power, Ground, PNP Switch, Shift Lever, Sensors





Transaxle Controls
