Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> MVB 4 Speed - Automatic Transmission

MVB 4 Speed - Automatic Transmission

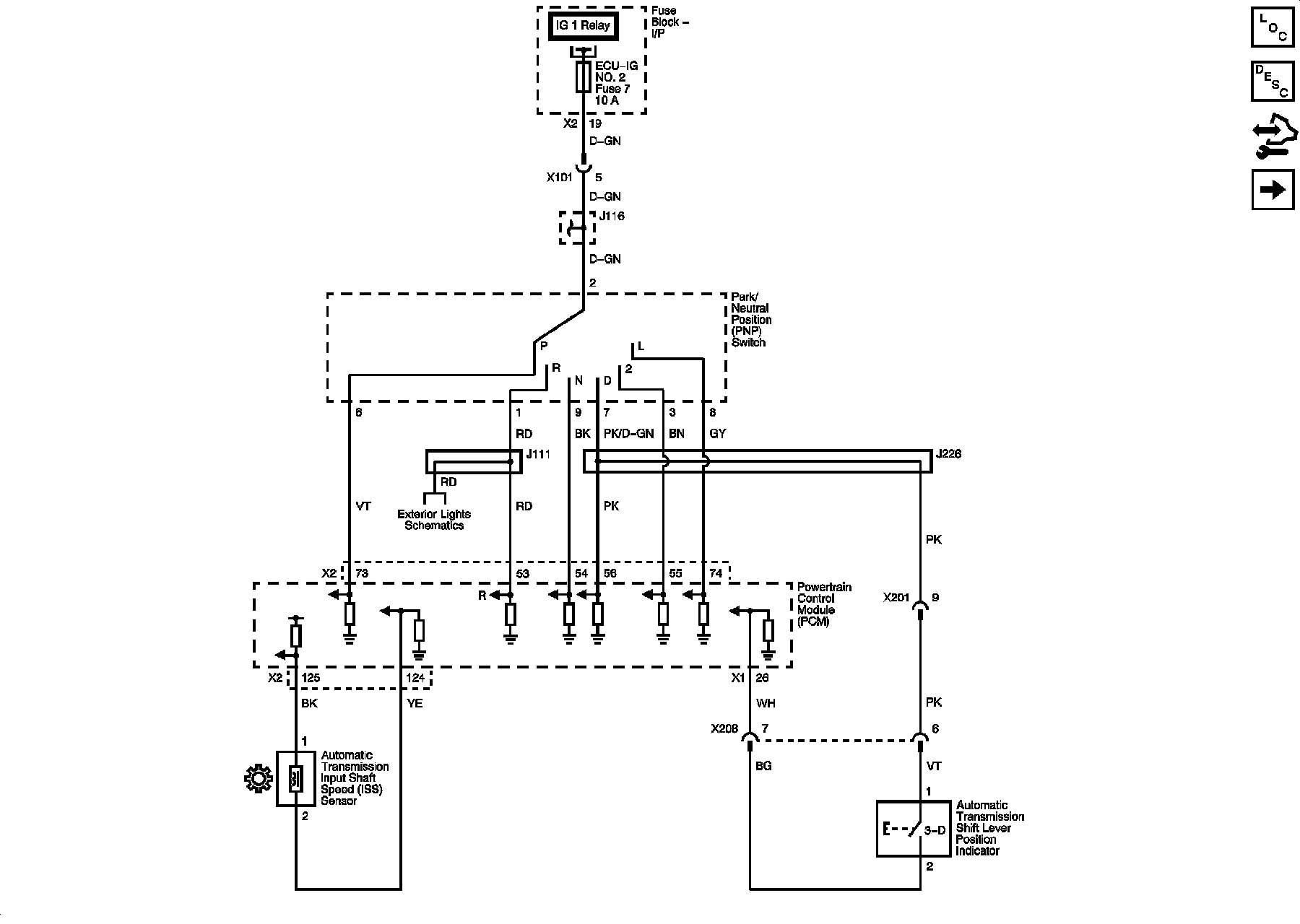

Automatic Transmission Controls Schematics

Power, PNP Switch, Shift Lever, Sensors

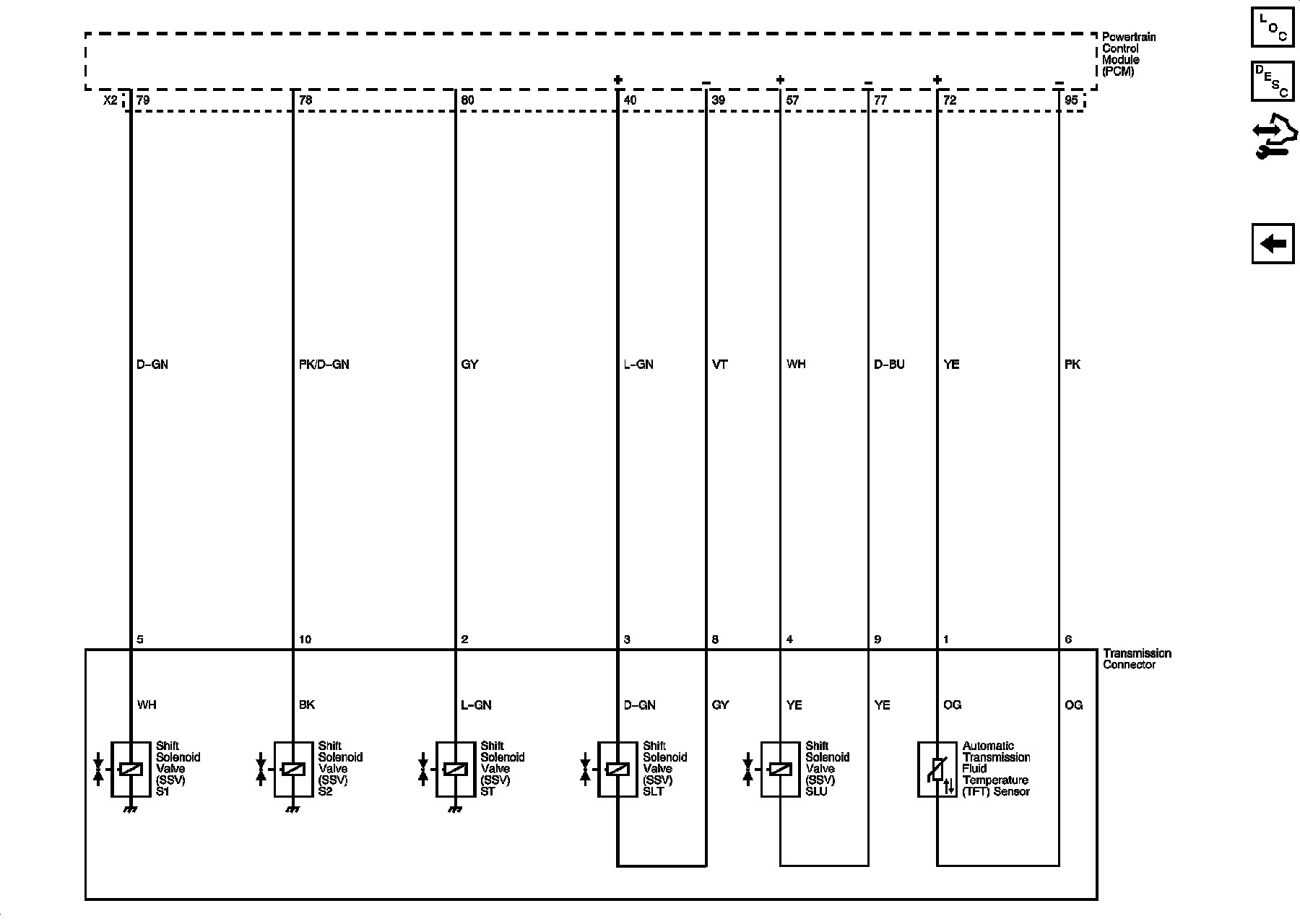

Transaxle Controls
