Wiper Switch




Component Connector End Views

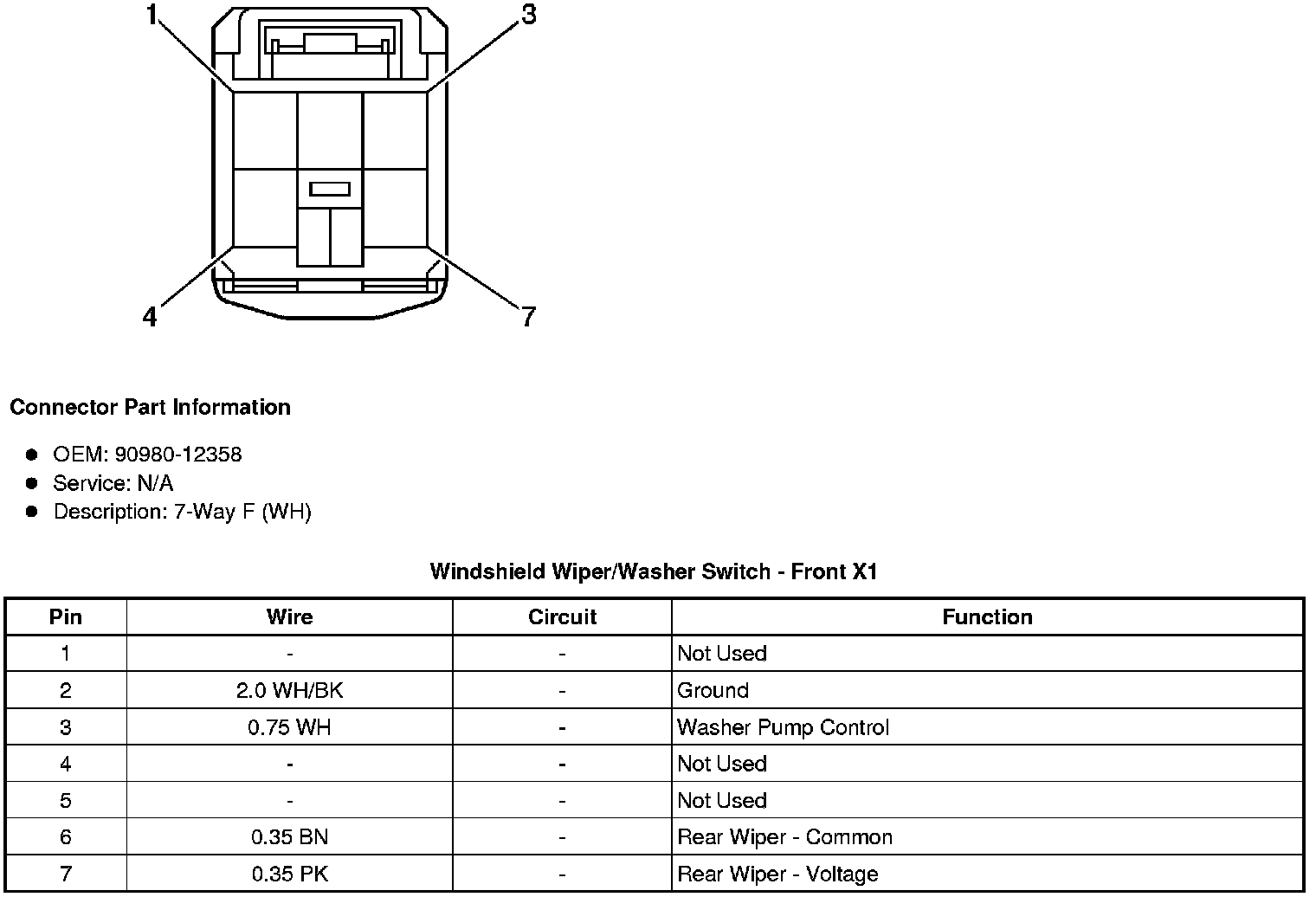

Windshield Wiper/Washer Switch - Front X1

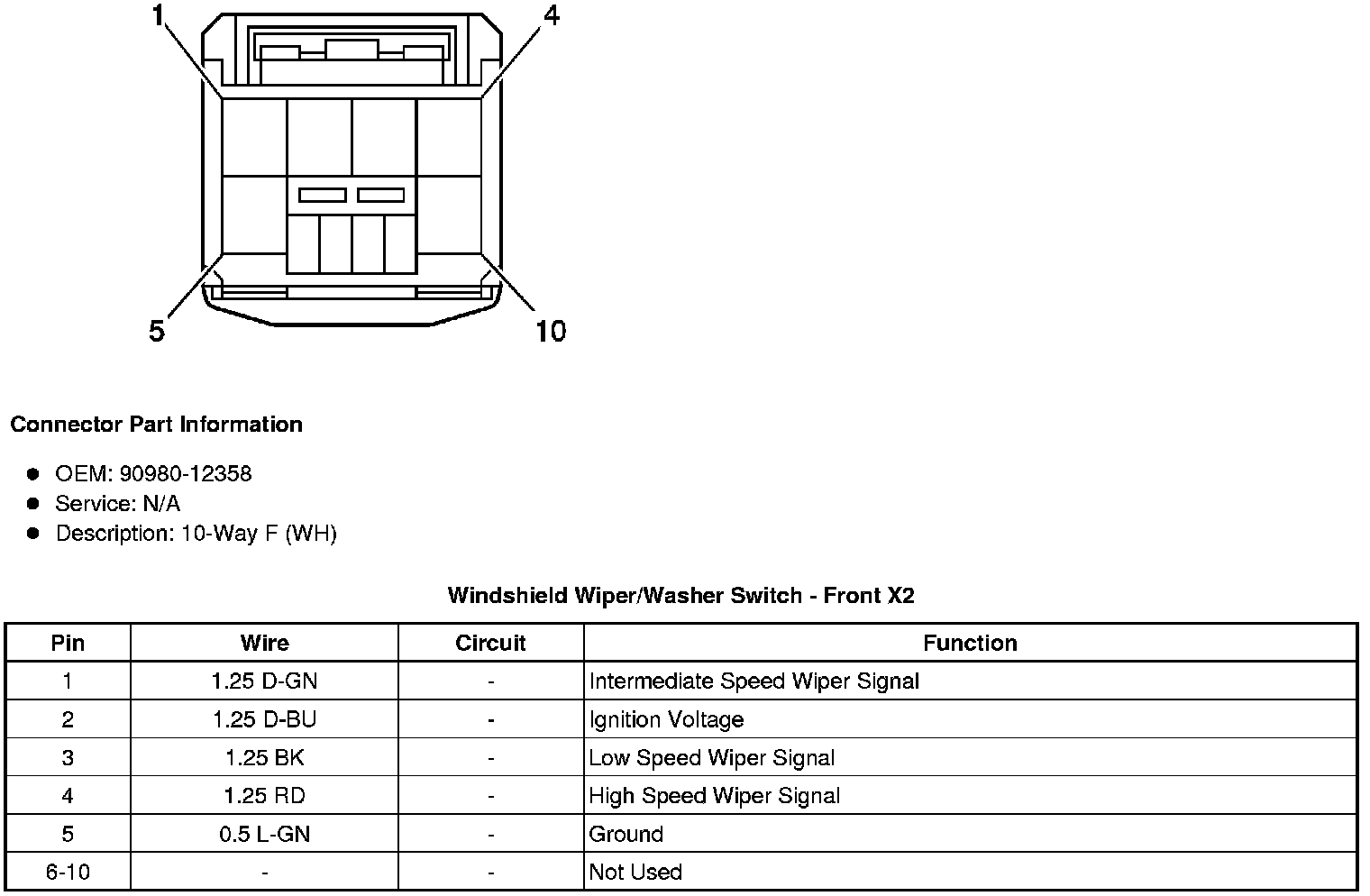

Windshield Wiper/Washer Switch - Front X2
