Home
>>
Pontiac
>>
2010
>>
Vibe FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting System
>>
Clutch Switch
Clutch Switch
Component Connector End Views

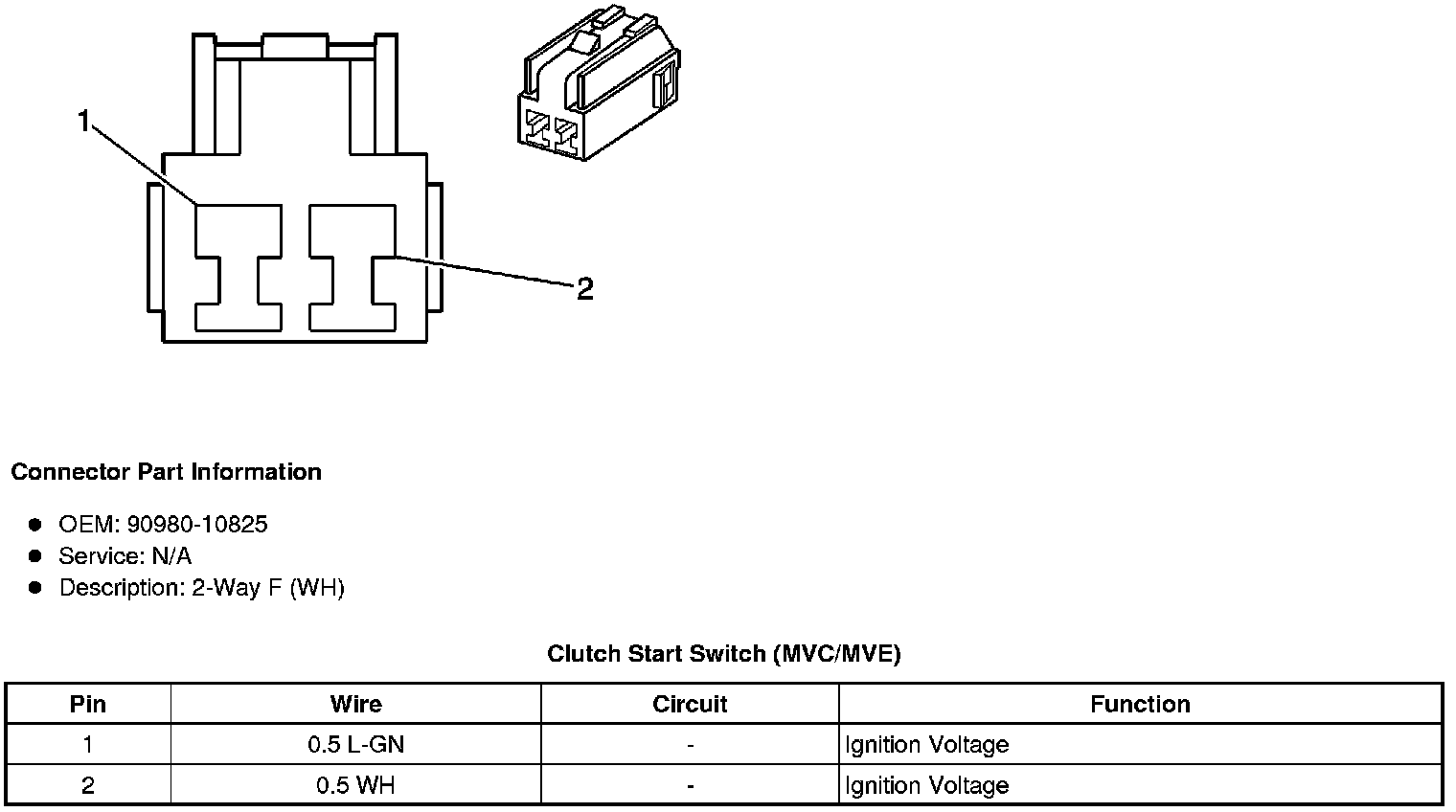

Clutch Start Switch (MVC/MVE)
