Speaker




Component Connector End Views

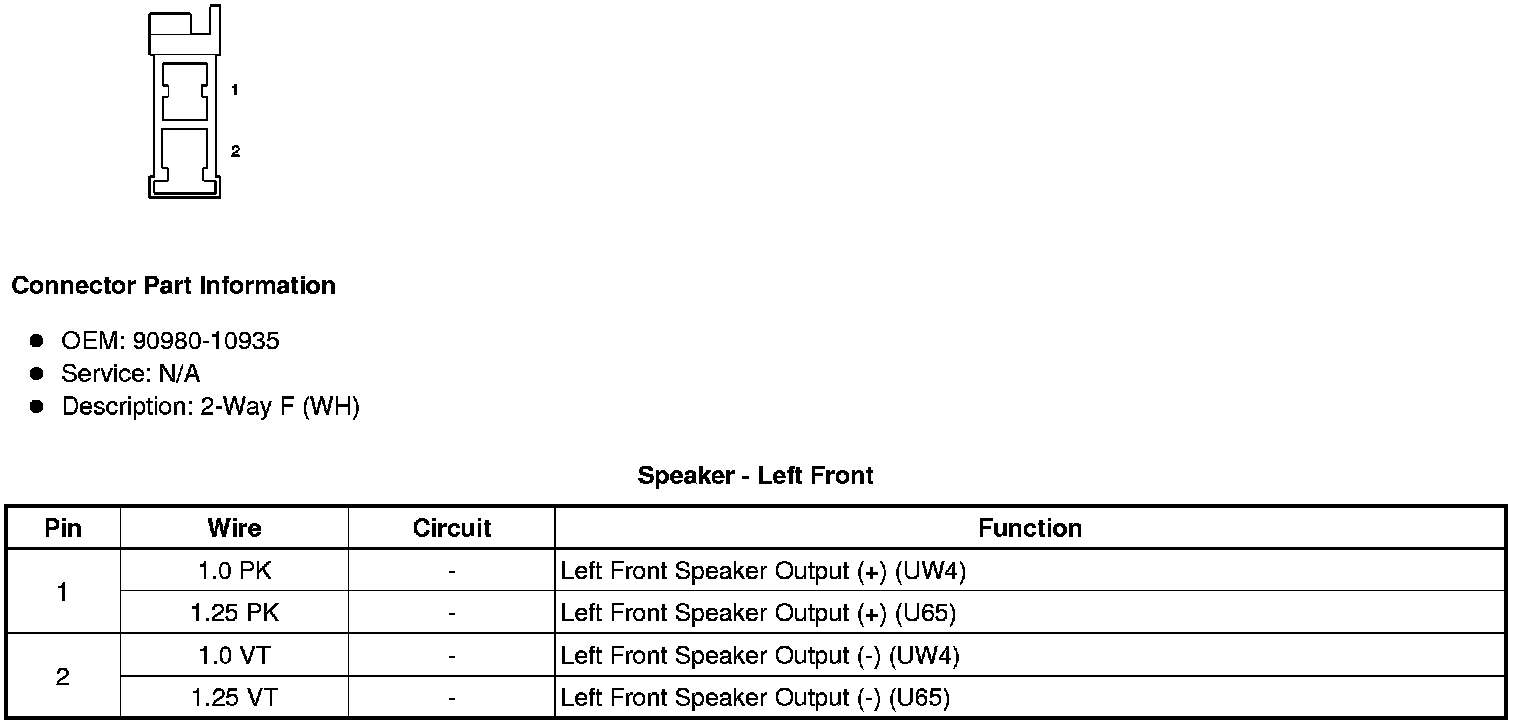

Speaker - Left Front

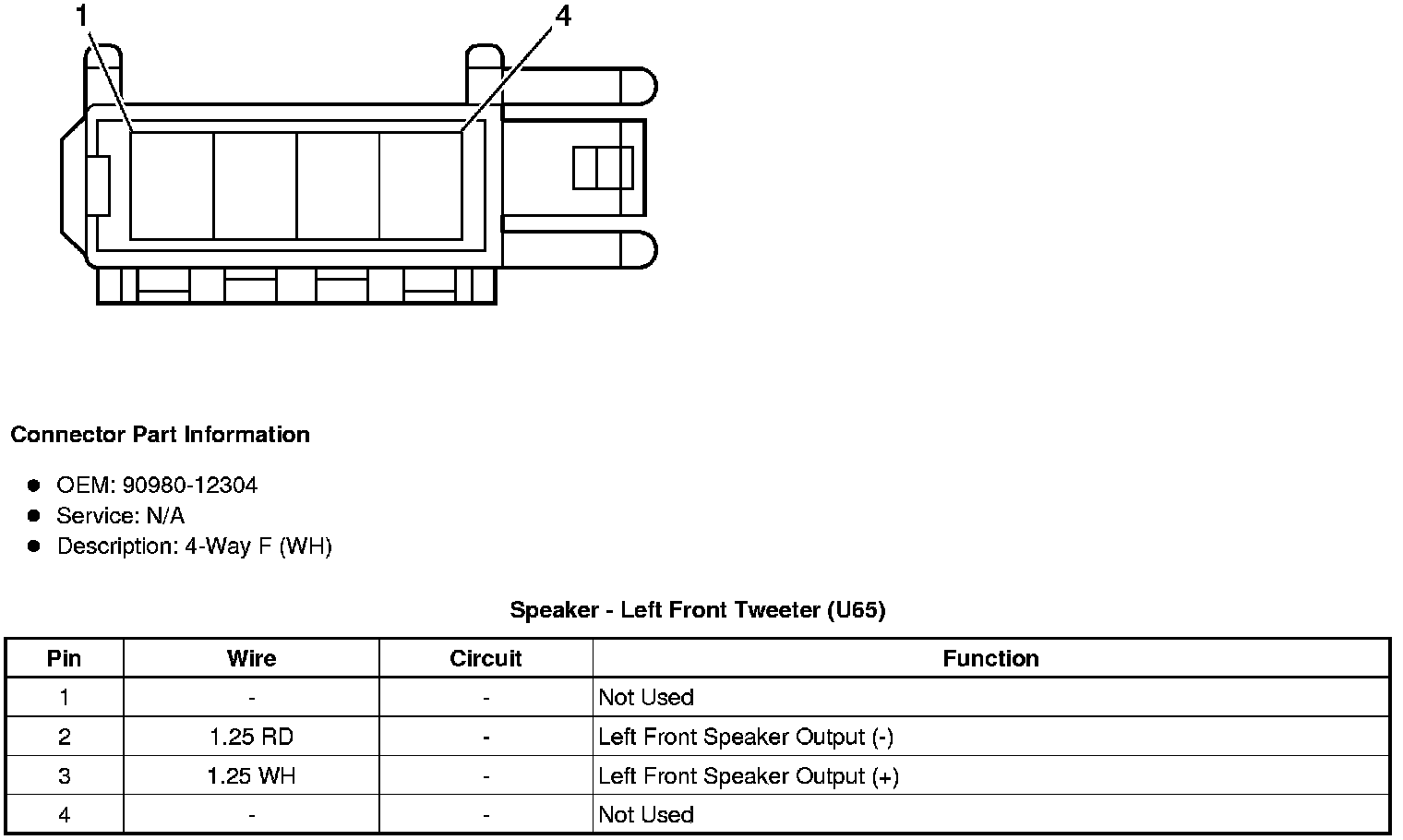

Speaker - Left Front Tweeter (U65)

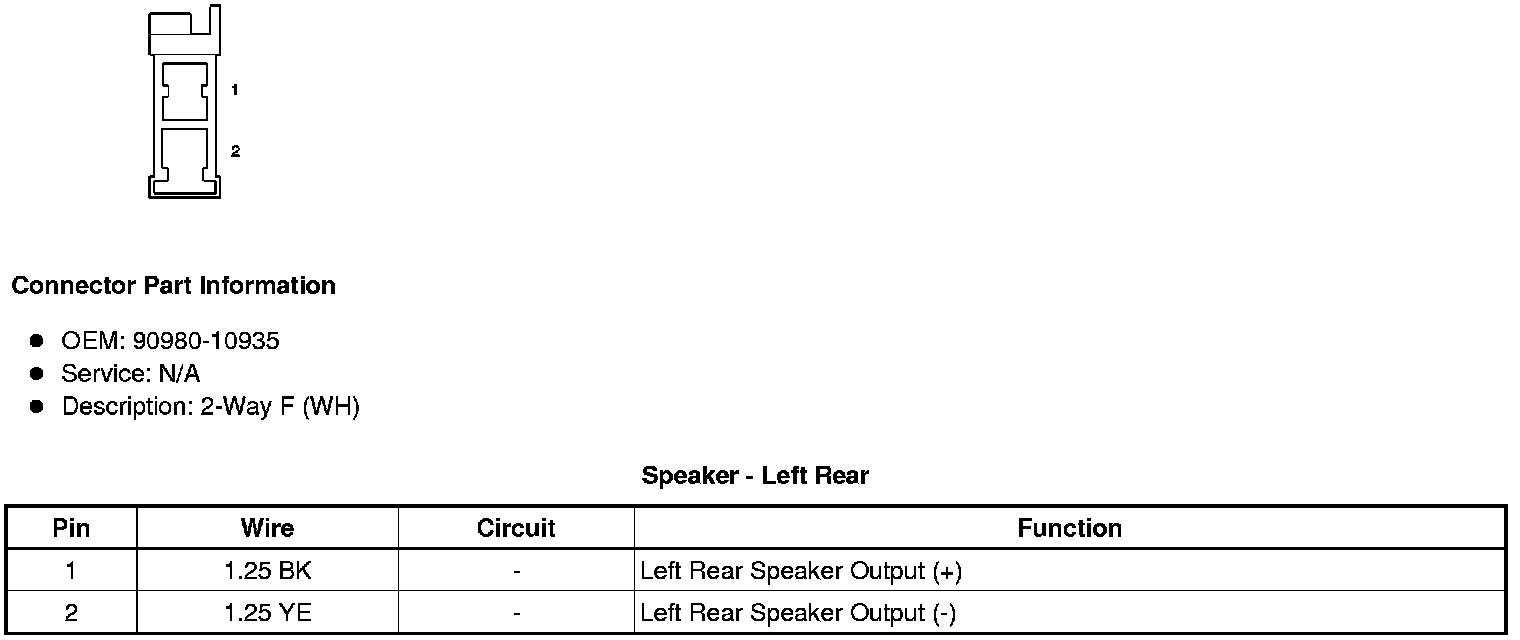

Speaker - Left Rear

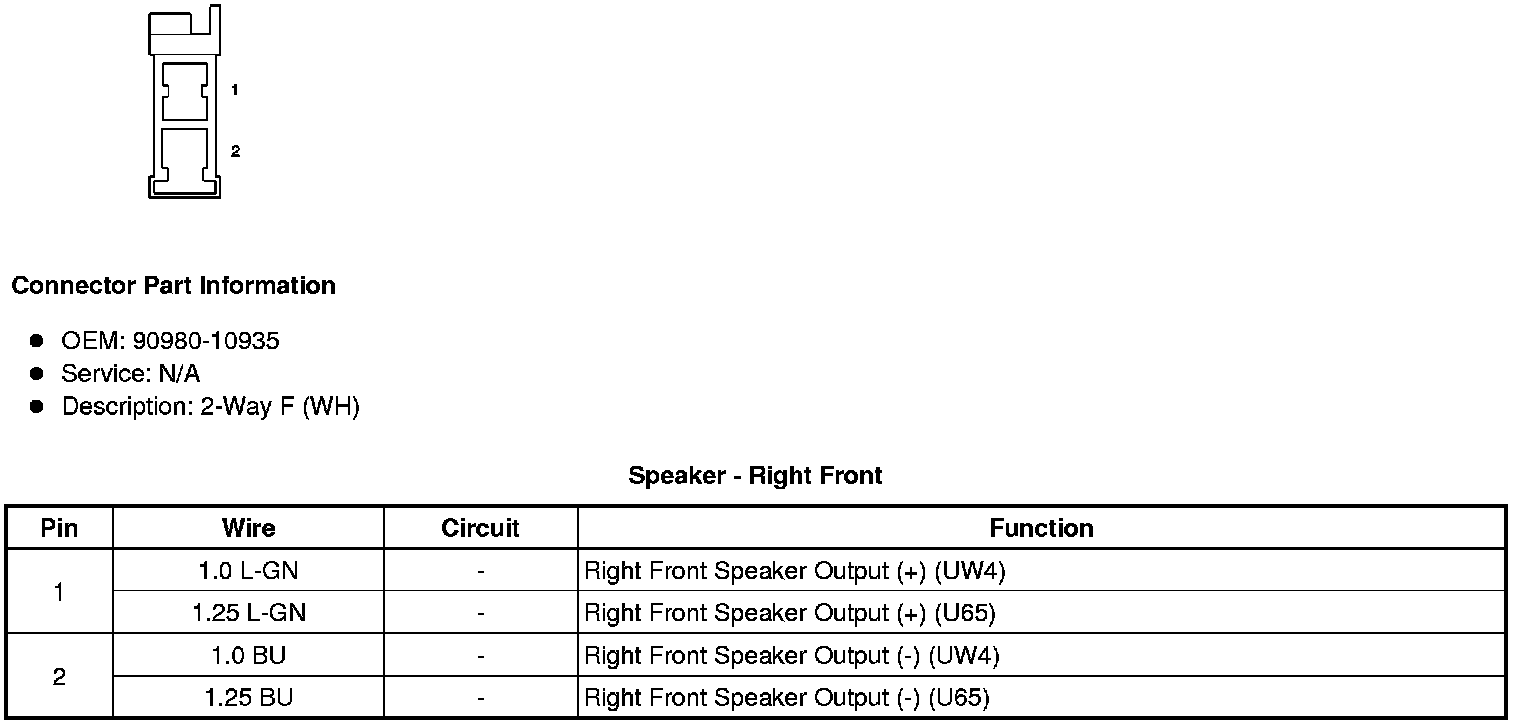

Speaker - Right Front





Speaker - Right Front Tweeter (U65)

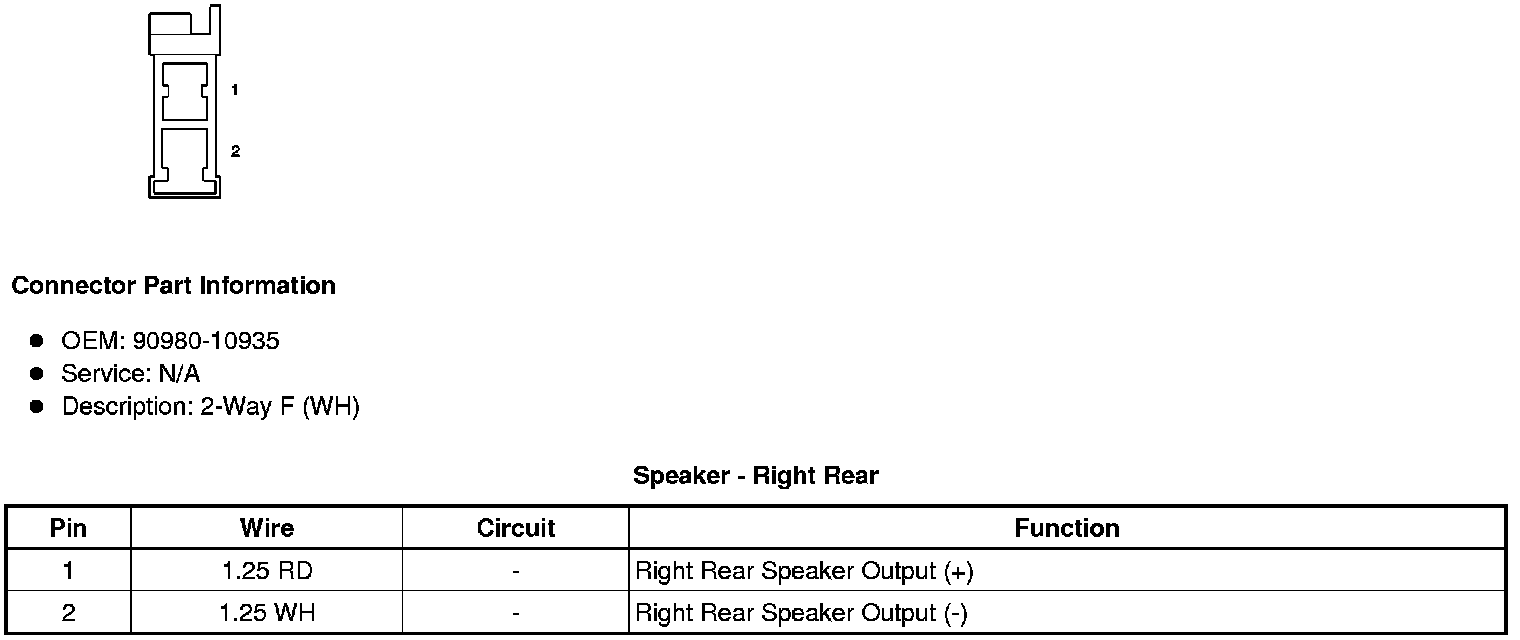

Speaker - Right Rear

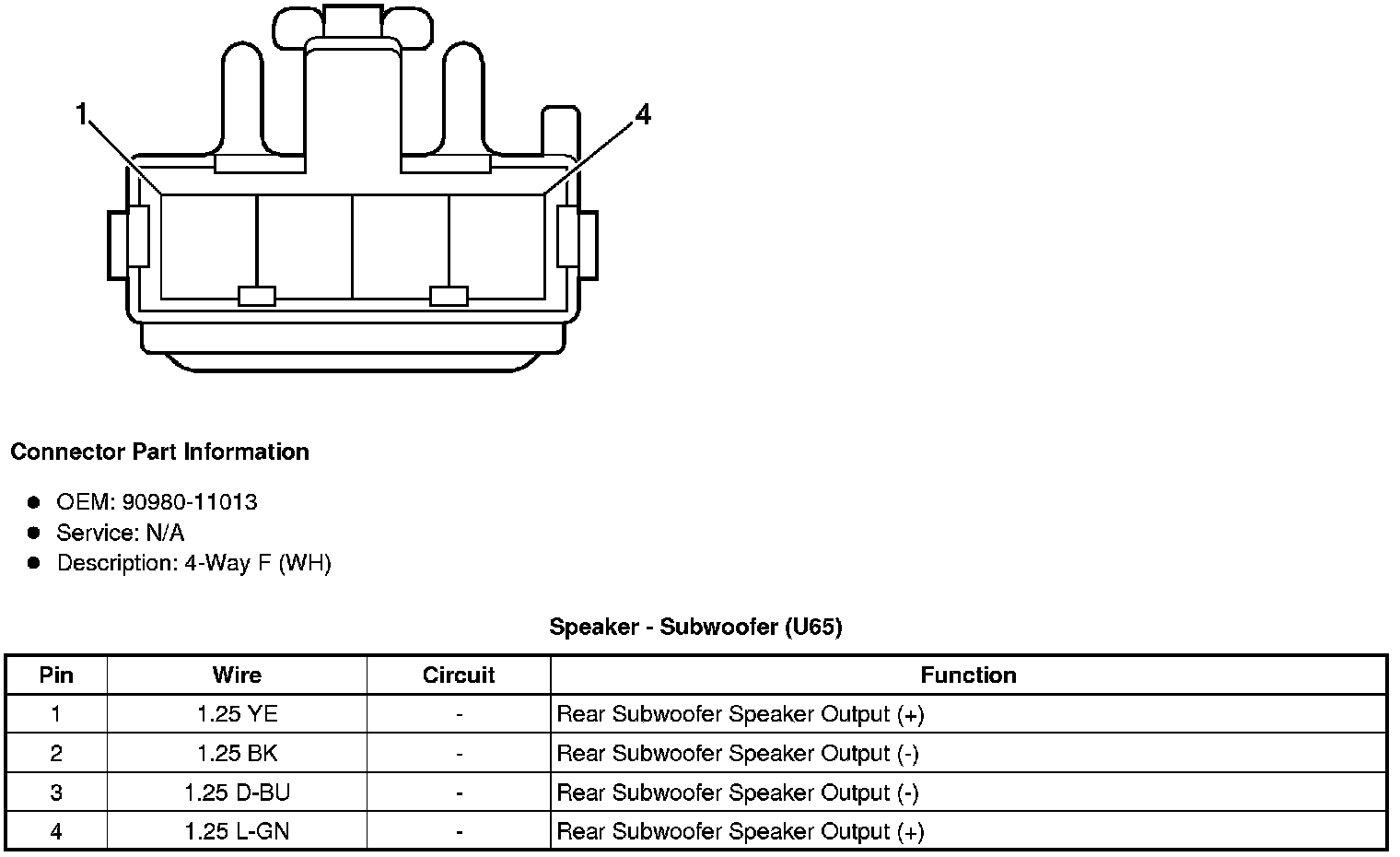

Speaker - Subwoofer (U65)
