Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Retractor

Seat Belt Retractor

Component Connector End Views

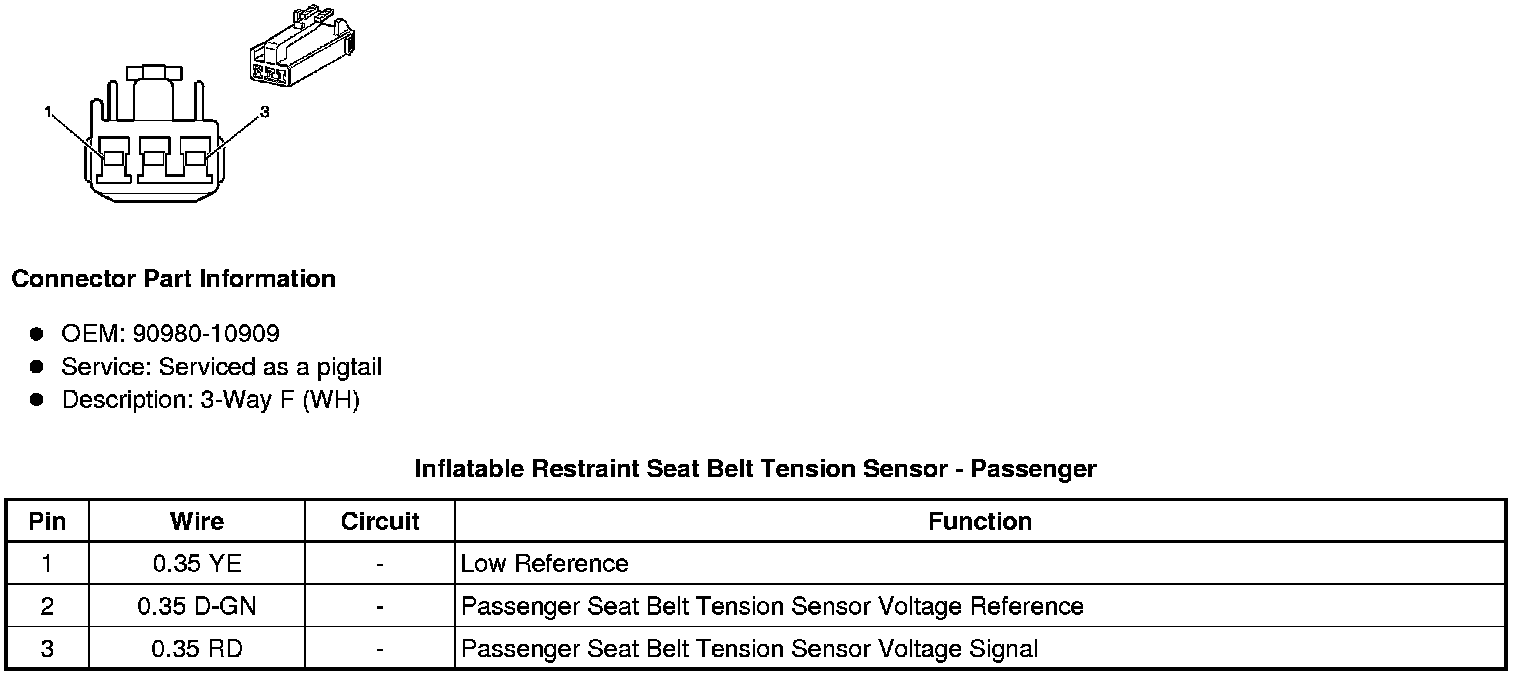

Inflatable Restraint Seat Belt Tension Sensor - Passenger

Seat Belt Retractor - Driver

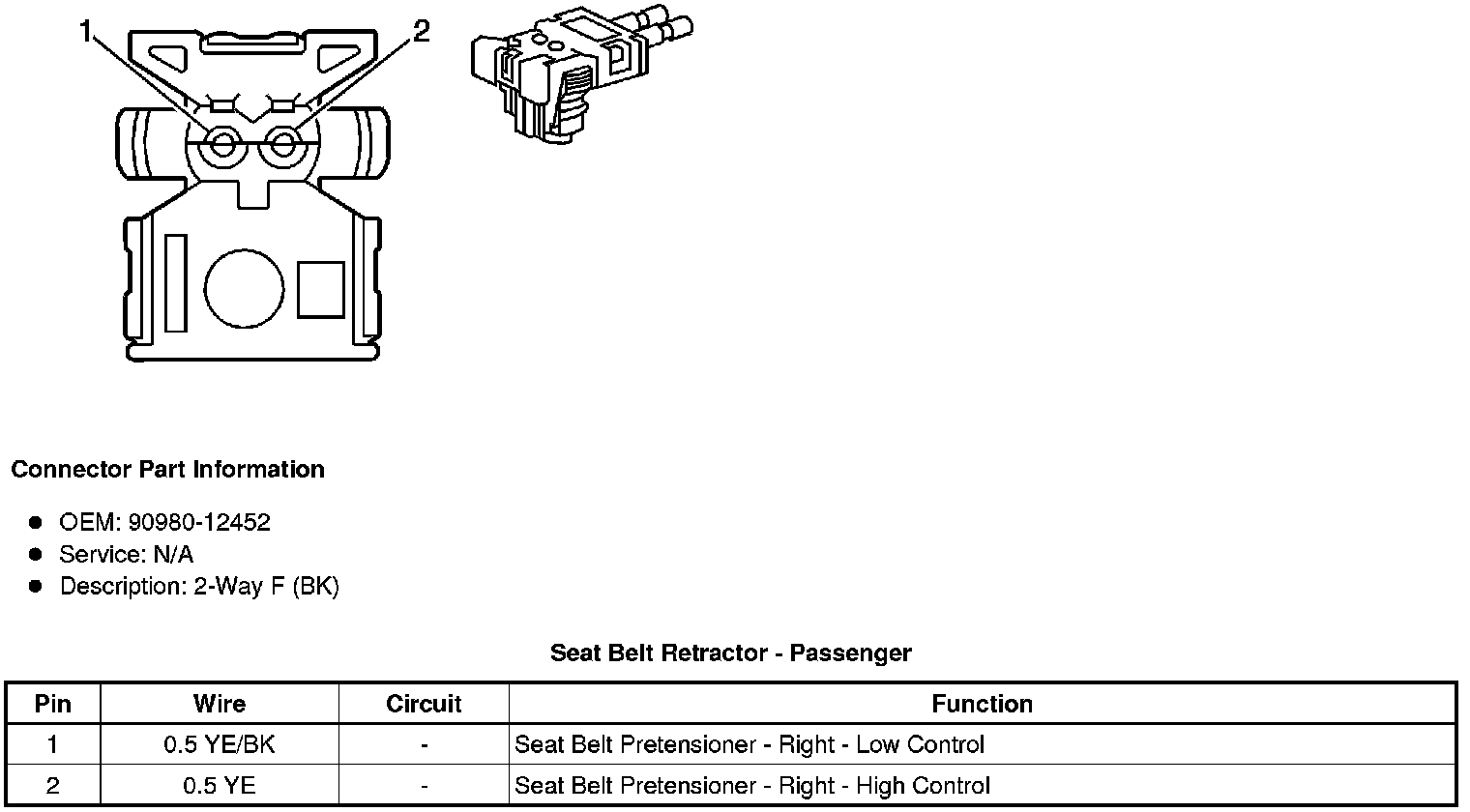

Seat Belt Retractor - Passenger
