Impact Sensor




Component Connector End Views

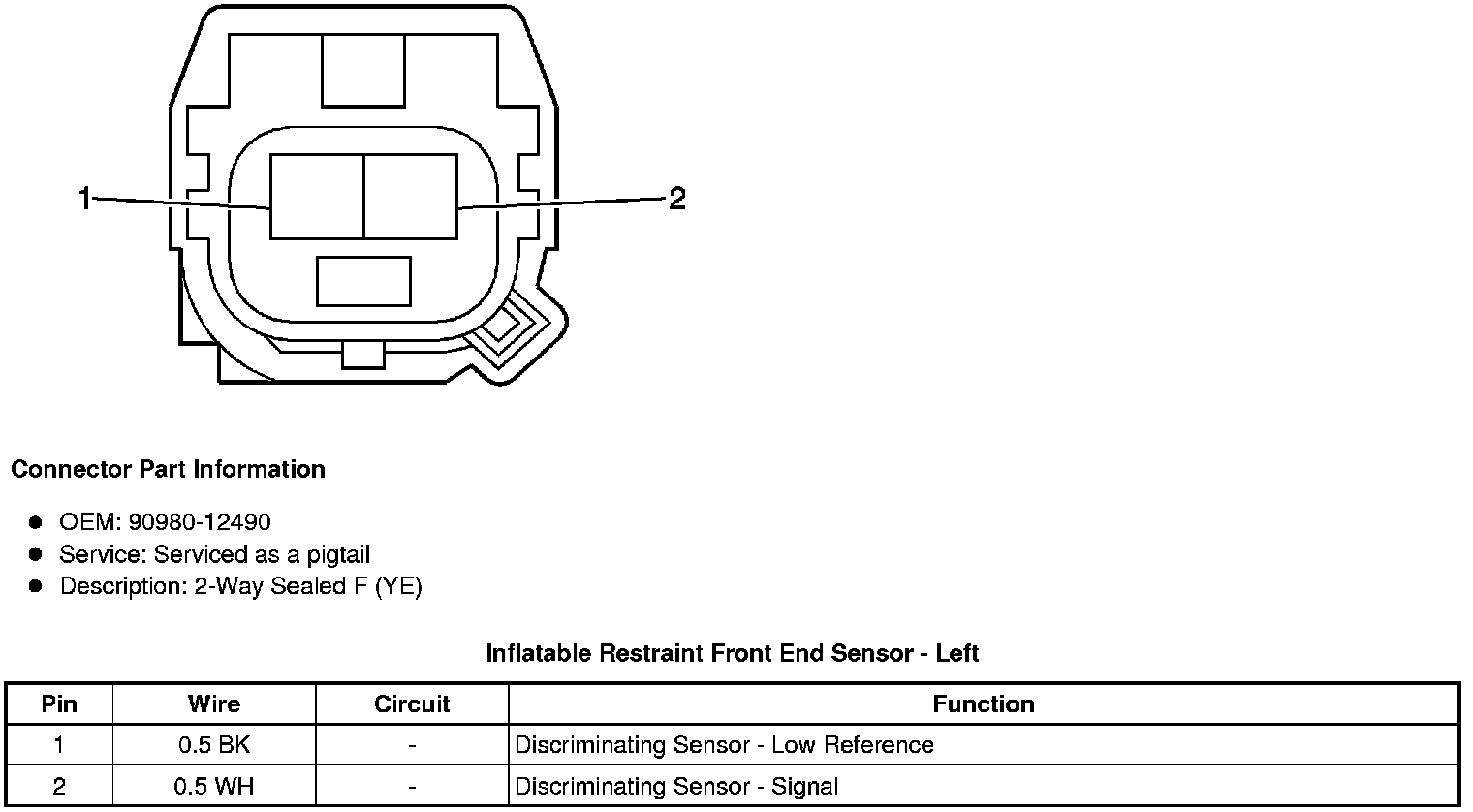

Inflatable Restraint Front End Sensor - Left

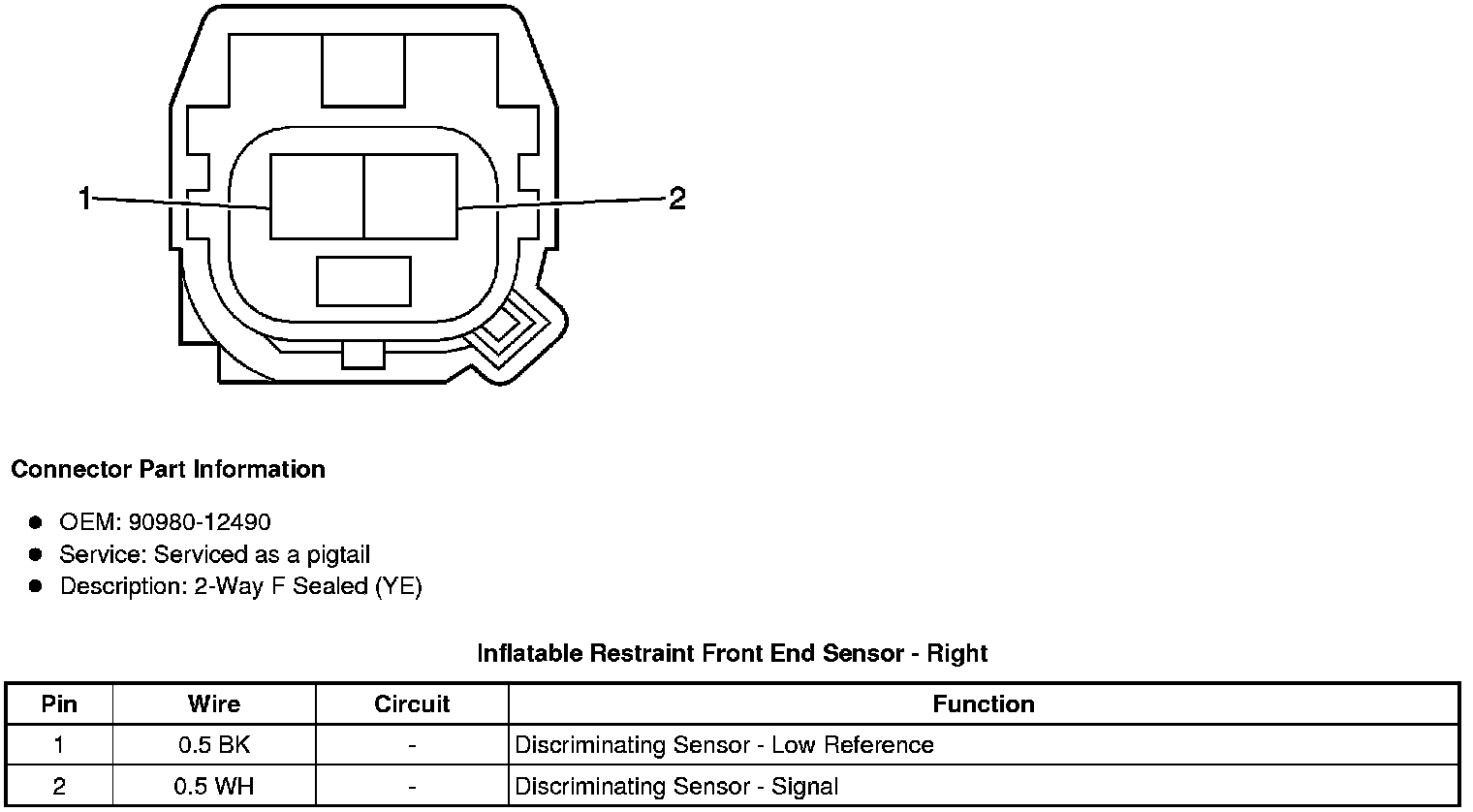

Inflatable Restraint Front End Sensor - Right





Inflatable Restraint Side Impact Sensor (SIS) - Left

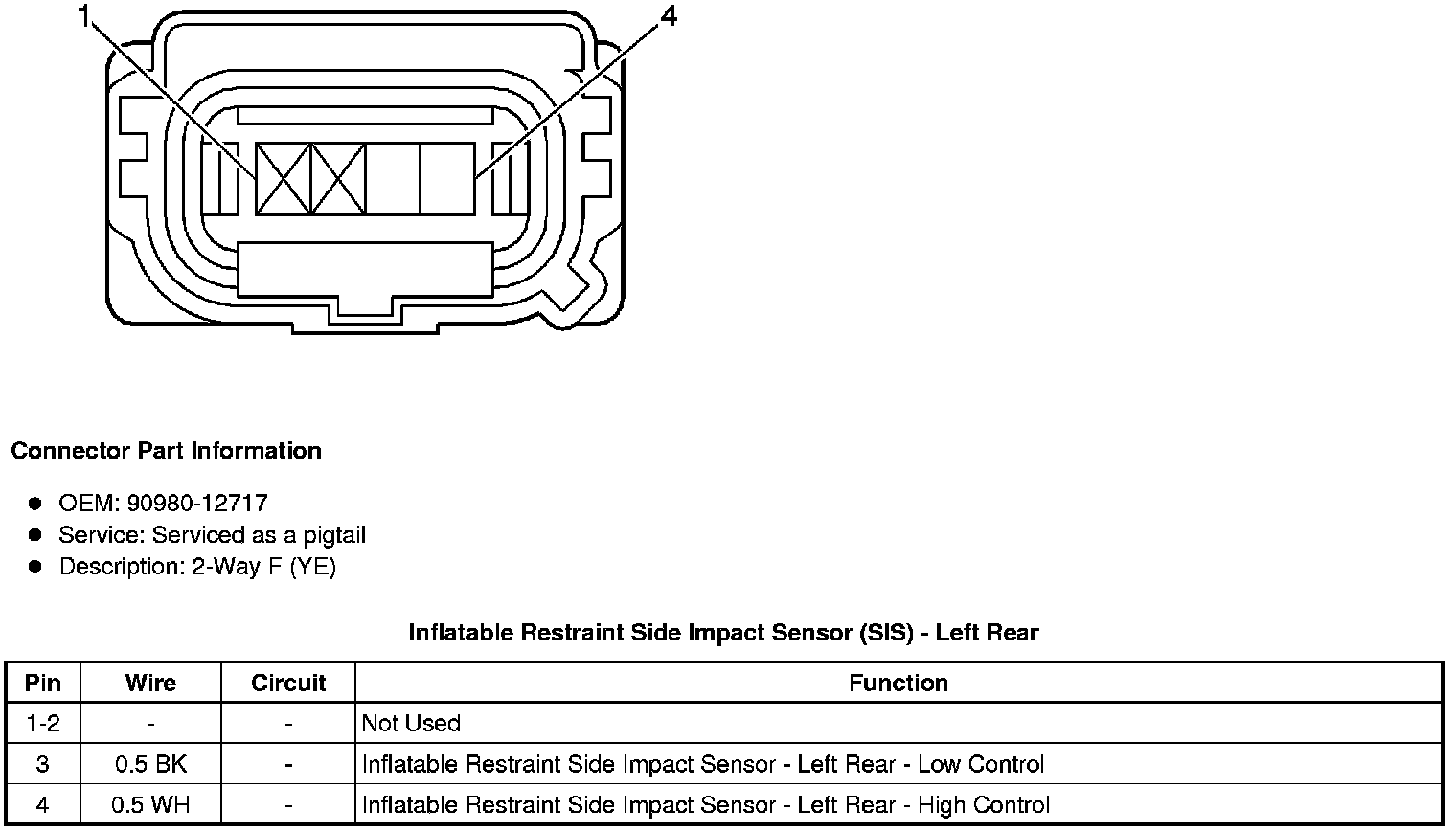

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear

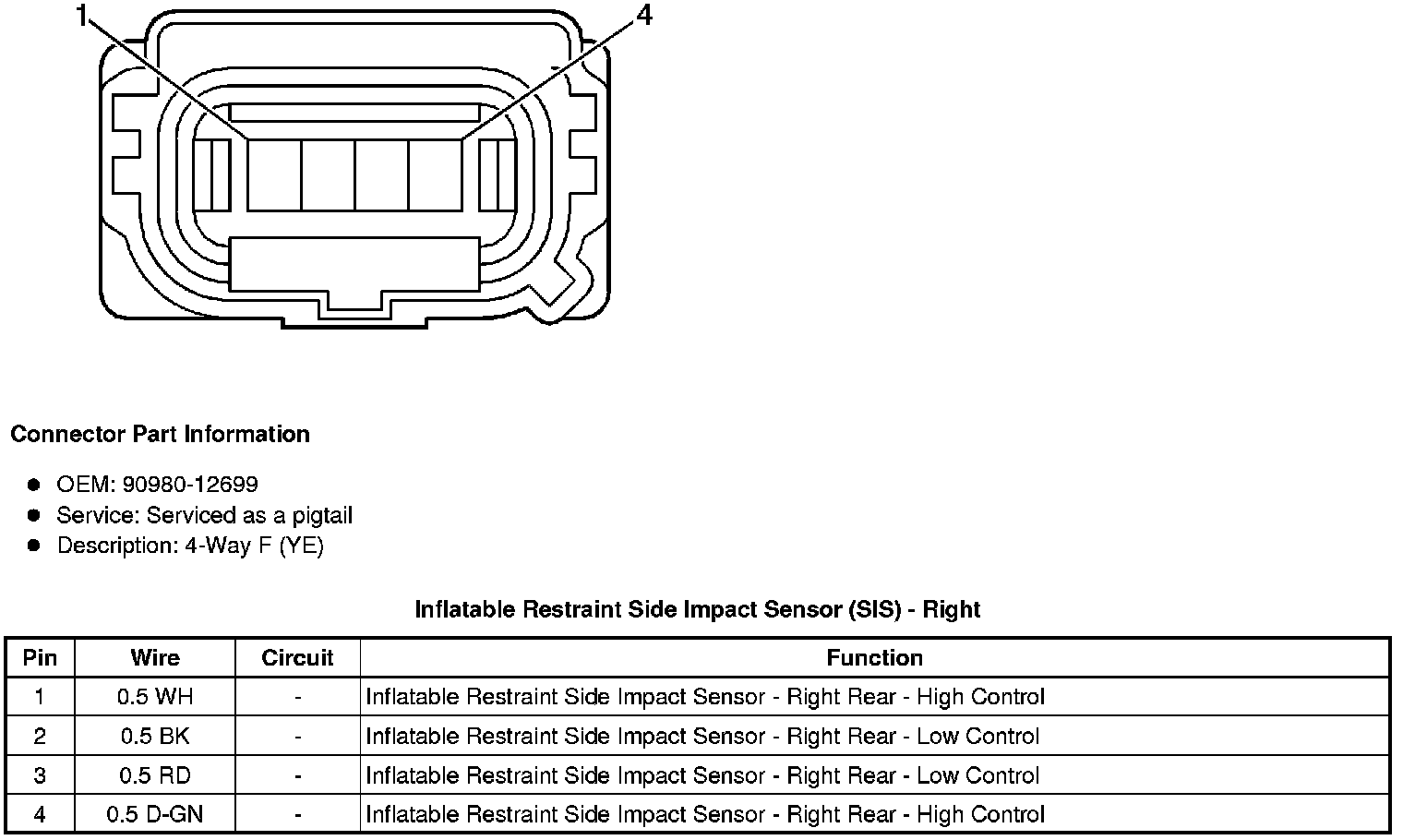

Inflatable Restraint Side Impact Sensor (SIS) - Right

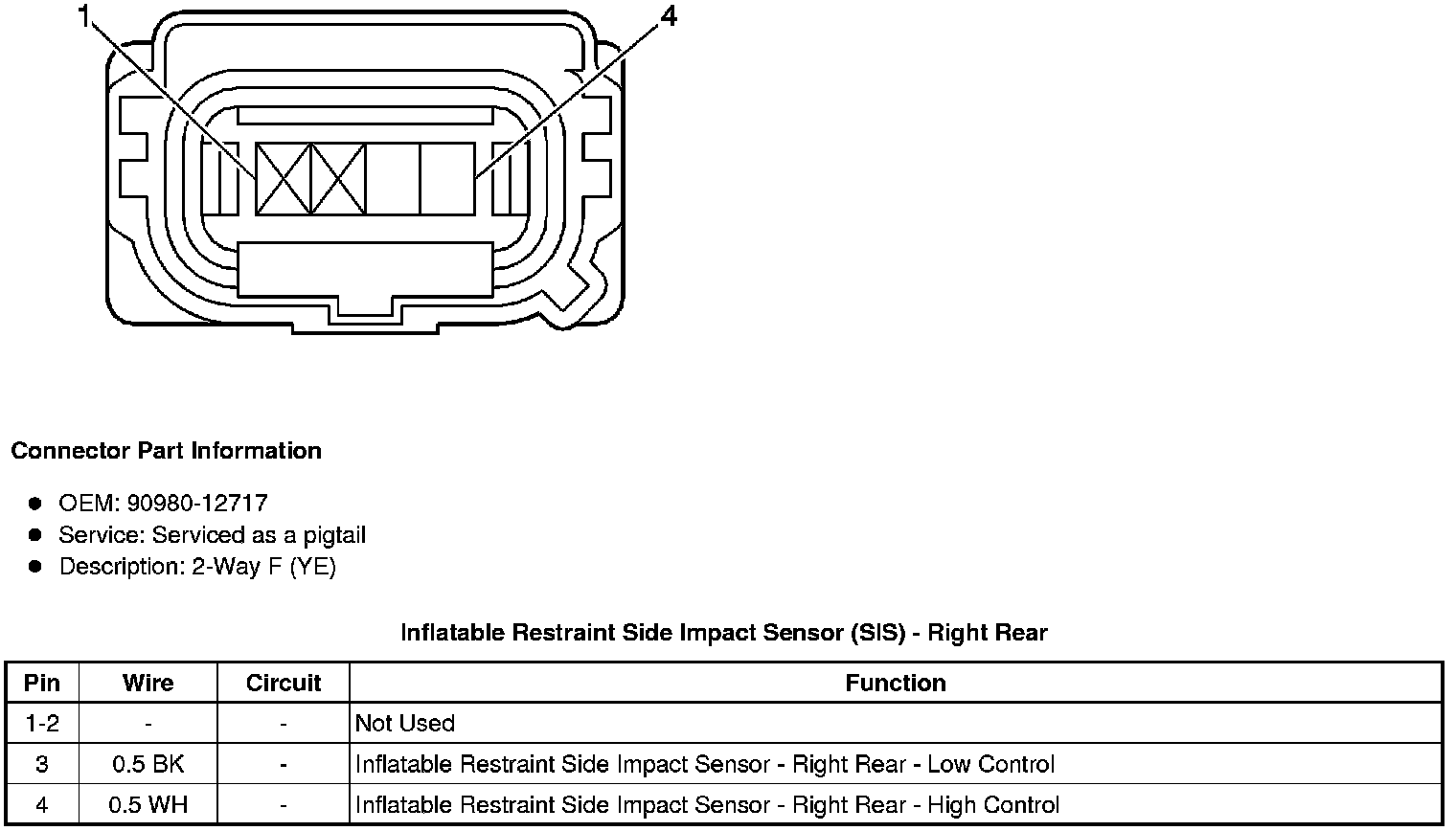

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
