Backup Lamp
>>
Backup Lamp Switch
Backup Lamp Switch
Component Connector End Views

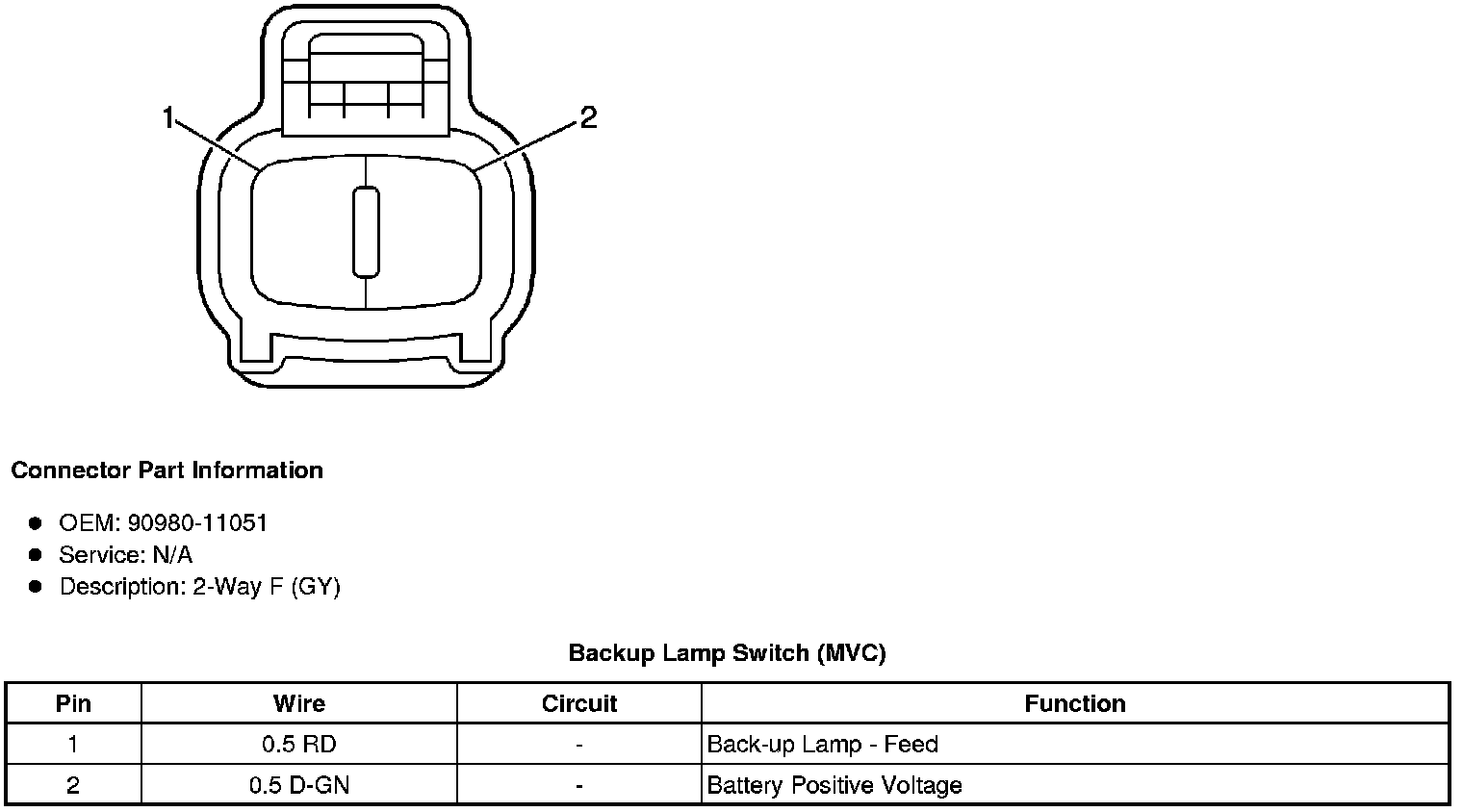

Backup Lamp Switch
(MVC)

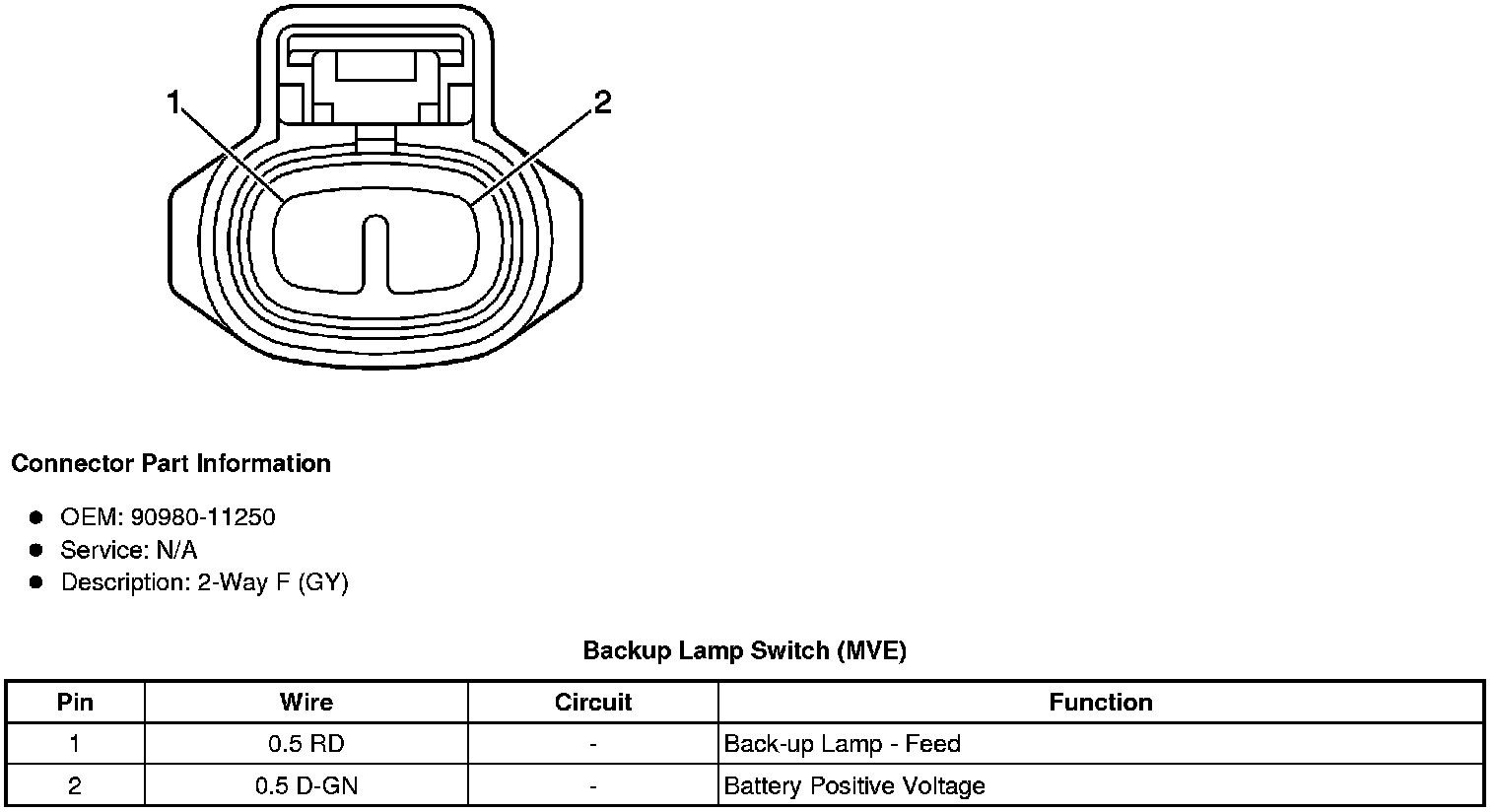

Backup Lamp Switch
(MVE)
