Air Bag Control Module
Component Connector End Views

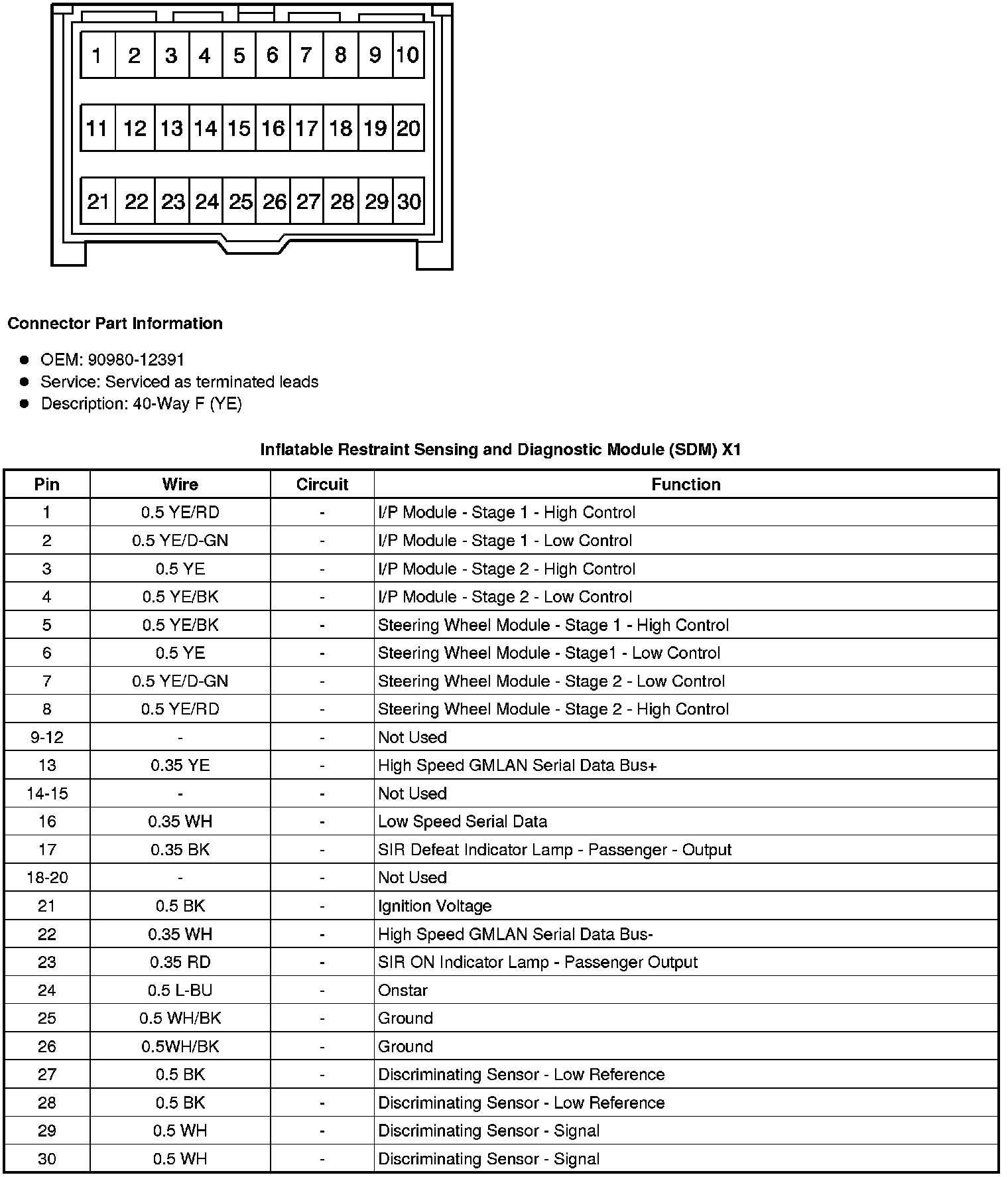

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1

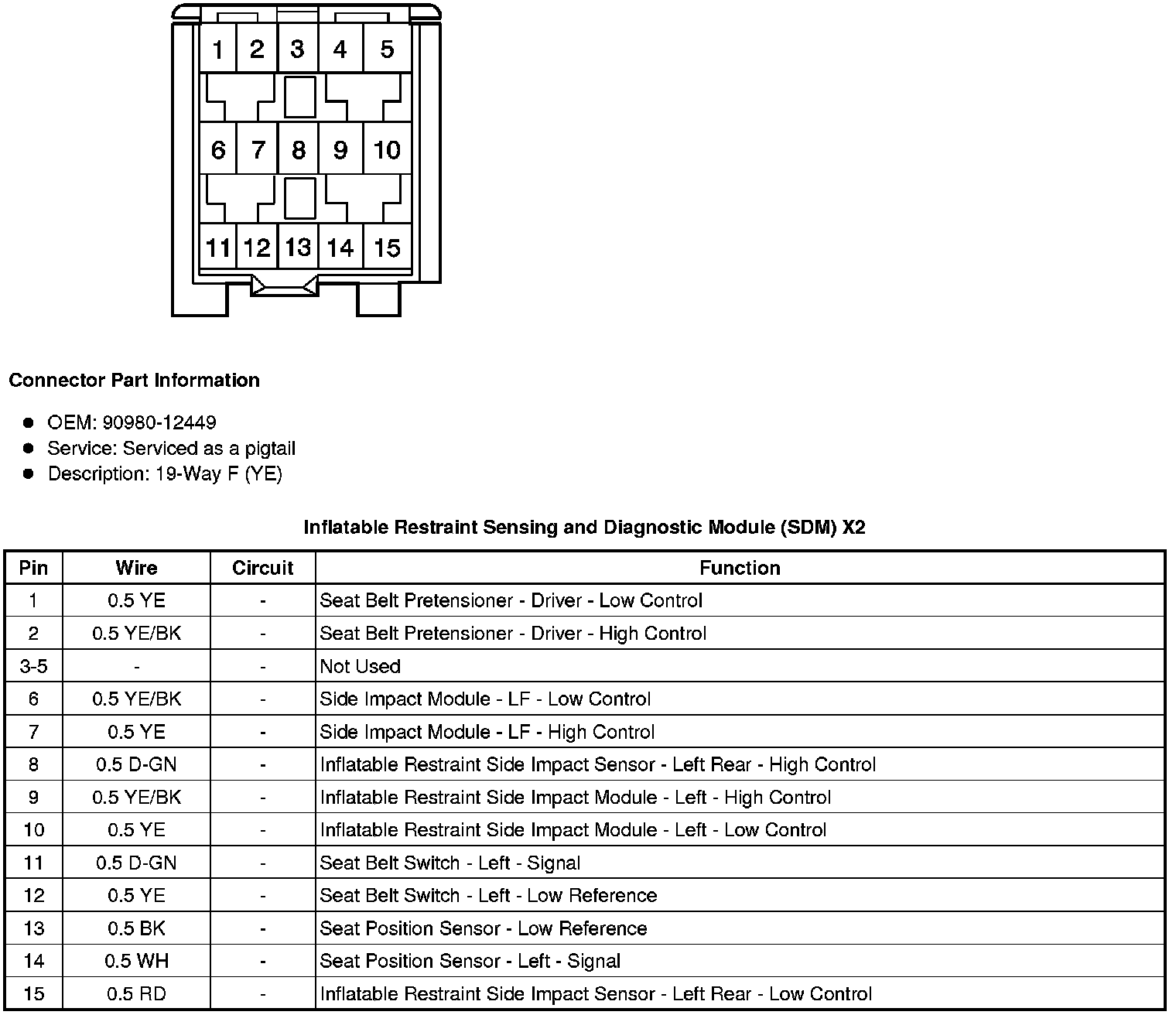

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2

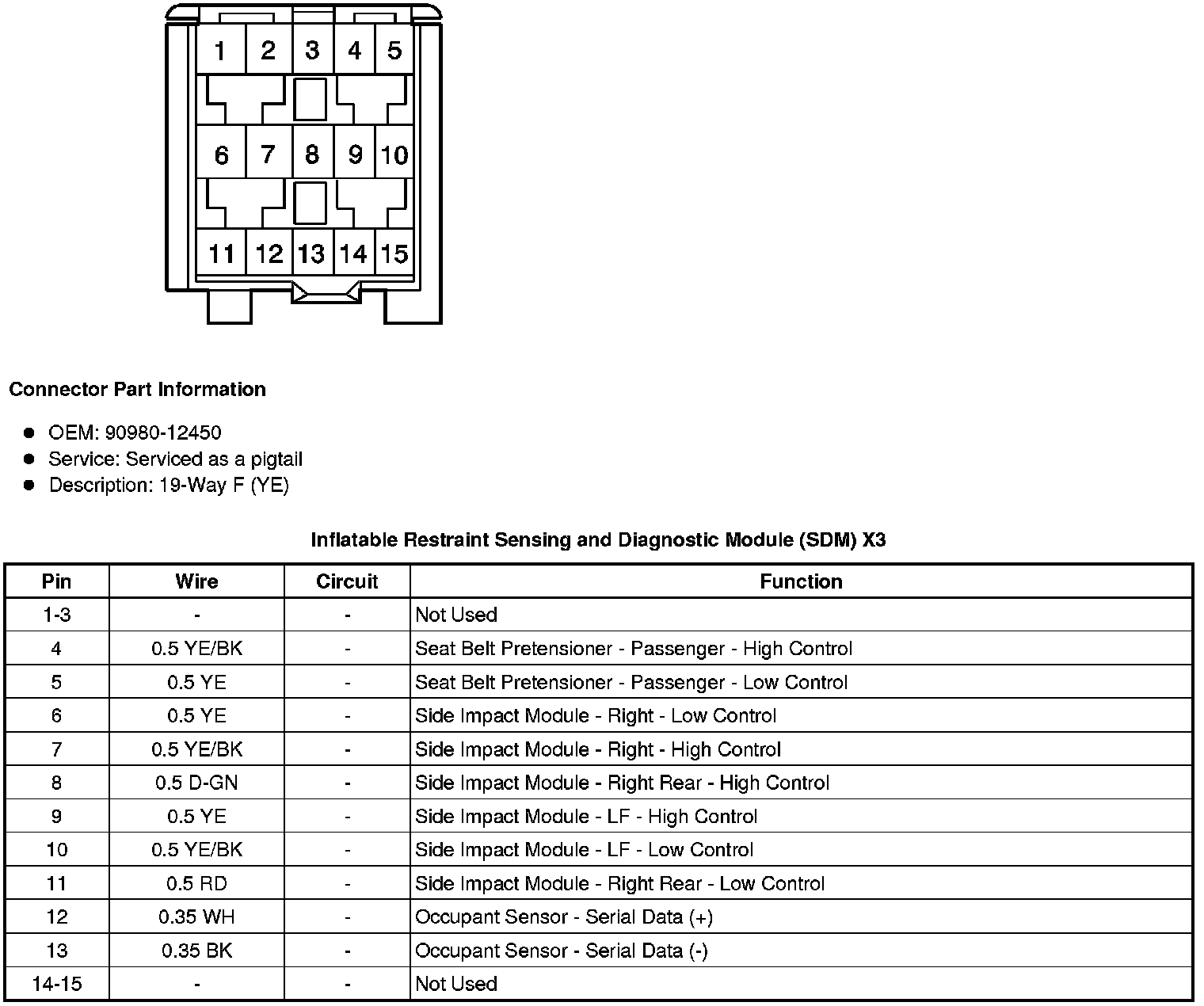

Inflatable Restraint Sensing and Diagnostic Module (SDM) X3
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Inflatable Restraint Sensing and Diagnostic Module (SDM) X3
