Front Brake Hose Replacement

Front Brake Hose Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Service and Repair).
3. Clean the brake hose and the fittings.

Note: The left and right front brake hoses are not interchangeable.

4. Place tags or marks on the brake hose in order to identify the installed position of the brake hose.




Warning: Refer to Brake Fluid Irritant Warning (Brake Fluid Irritant Warning).


Caution: Refer to Brake Fluid Effects on Paint and Electrical Components Caution (Vehicle Damage Warnings).

5. Remove the fitting (1) from the caliper.
6. Remove the brake hose from the caliper.
7. Remove the brake hose gasket.
Discard the brake hose gasket.
8. Install a cap or a plug to the caliper in order to prevent brake fluid loss and contamination.




9. Use a wrench in order to hold the brake hose. Remove the brake hose from the brake pipe.
10. Remove the brake hose retainer.
Discard the brake hose retainer.
11. Install a cap or a plug to the brake pipe fitting in order to prevent brake fluid loss and contamination.

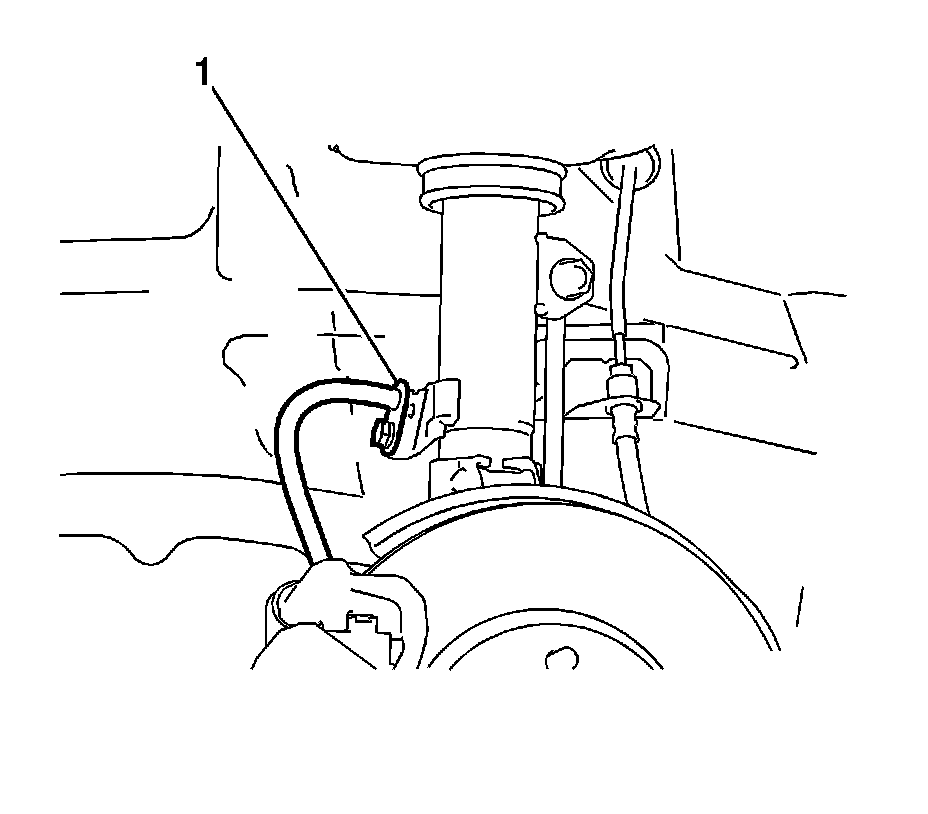

12. Remove the bolt and separate the brake hose (1) from the bracket.
13. Remove the brake hose from the vehicle.

Installation Procedure

1. If you are reusing the brake hose, align the tags or marks in order to install the hose in the correct position.
If you are installing a new brake hose, verify the part number.
2. Remove the cap or the plug from the caliper.
3. Install a NEW brake hose gasket and the brake hose to the caliper.





Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the fitting (1) and tighten to 29 Nm (21 lb ft).
5. Remove the cap or the plug from the brake pipe.
6. Position the brake hose on the brake pipe. Ensure the brake hose is not kinked or twisted.
7. Install a NEW retainer as far as the retainer will go.
8. Use a wrench in order to hold the brake hose. Use a torque wrench with a fulcrum length of 250 mm (9.84 in) and a union nut wrench in order to tighten the fitting to 14 Nm (124 lb in).
9. Ensure the wheel speed sensor harness bracket is in the correct position.




10. Install the brake hose (1) to the bracket.
11. Install the bolt and tighten to 29 Nm (21 lb ft).
Warning: Refer to Brake Fluid Warning (Dangers, Warnings, and Cautions).


Caution: Refer to Filling the Master Cylinder Caution (Filling the Master Cylinder Caution).

12. Bleed the hydraulic brake system at the bleeder valve closest to the brake hose. Refer to Hydraulic Brake System Bleeding (Service and Repair).
13. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Service and Repair).
14. Lower the vehicle.
