Front Brake Caliper Bracket Replacement

Front Brake Caliper Bracket Replacement

Removal Procedure

1. Remove the disc brake hardware and the slide pin boots. Refer to Front Brake Caliper Hardware Replacement (2.4L Engine) (Front Brake Caliper Hardware Replacement)Front Brake Caliper Hardware Replacement (1.8L Engine) (Front Brake Caliper Hardware Replacement).

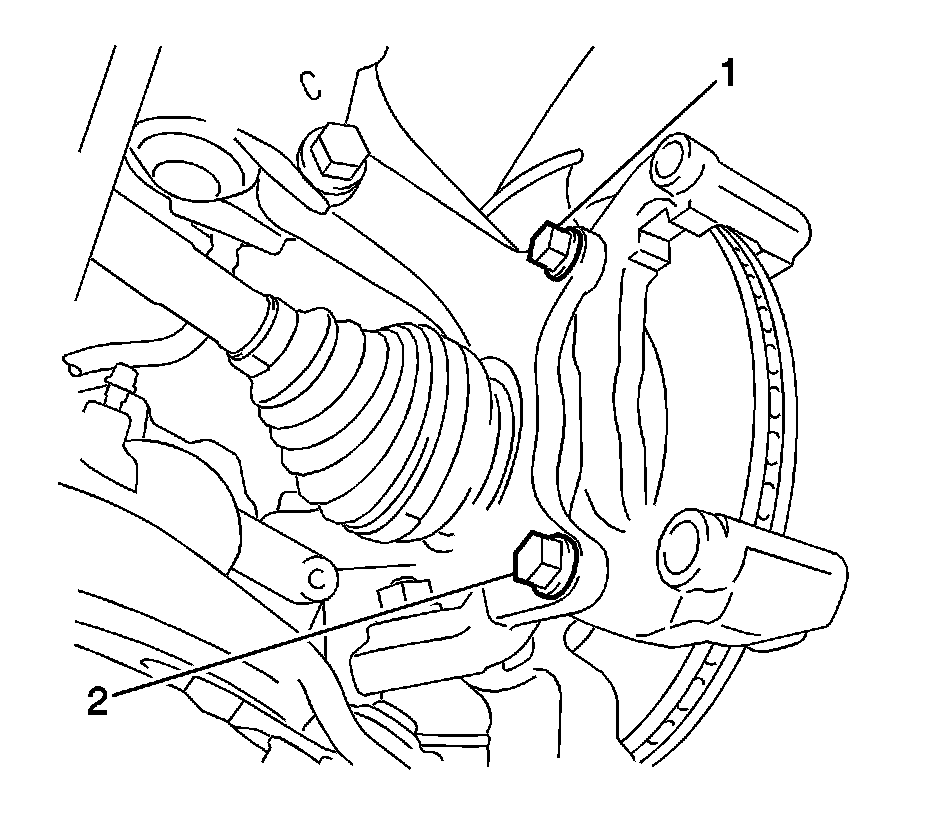

2. Remove the 2 bolts (1, 2).
3. Remove the front brake caliper bracket.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the front brake caliper bracket with the 2 bolts (1, 2) and tighten to 107 Nm (79 lb ft).
2. Install the disc brake hardware and the slide pin boots. Refer to Front Brake Caliper Hardware Replacement (2.4L Engine) (Front Brake Caliper Hardware Replacement)Front Brake Caliper Hardware Replacement (1.8L Engine) (Front Brake Caliper Hardware Replacement).
