Rear Split Folding Seat Back Cushion Cover and Pad Replacement

Rear Split Folding Seat Back Cushion Cover and Pad Replacement

Removal Procedure

1. Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (Rear Seat Head Restraint Replacement).
2. Remove the rear seat back. Refer to Rear Split Folding Seat Back Replacement (Rear Split Folding Seat Back Replacement).

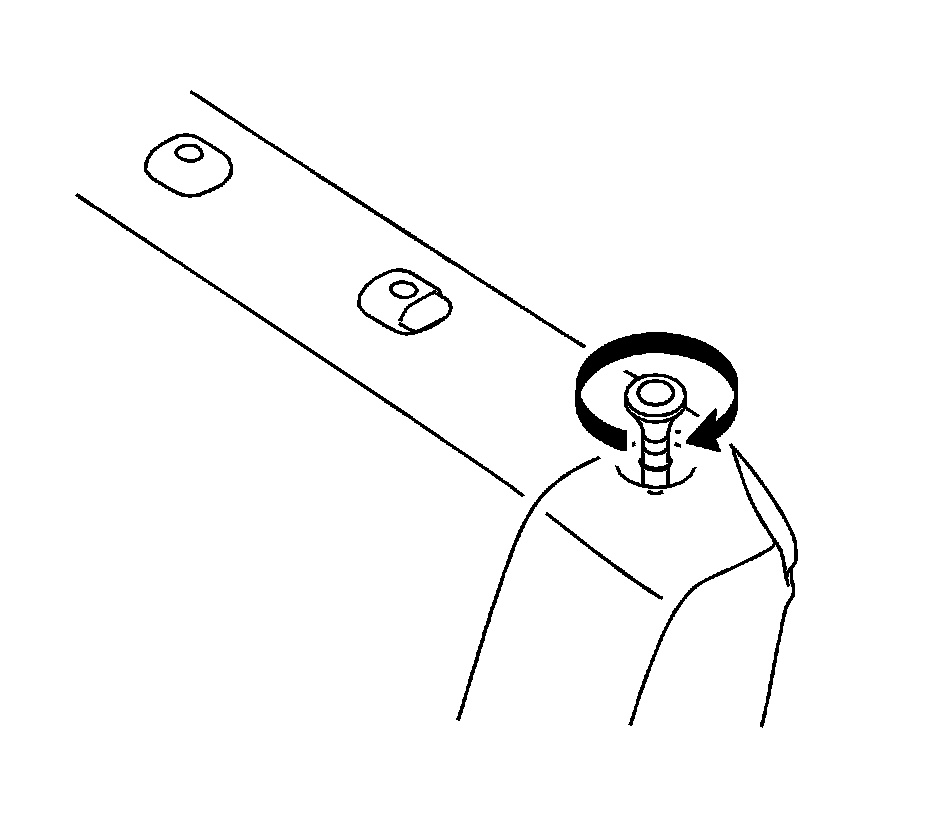

3. Remove rear seat latch knob.

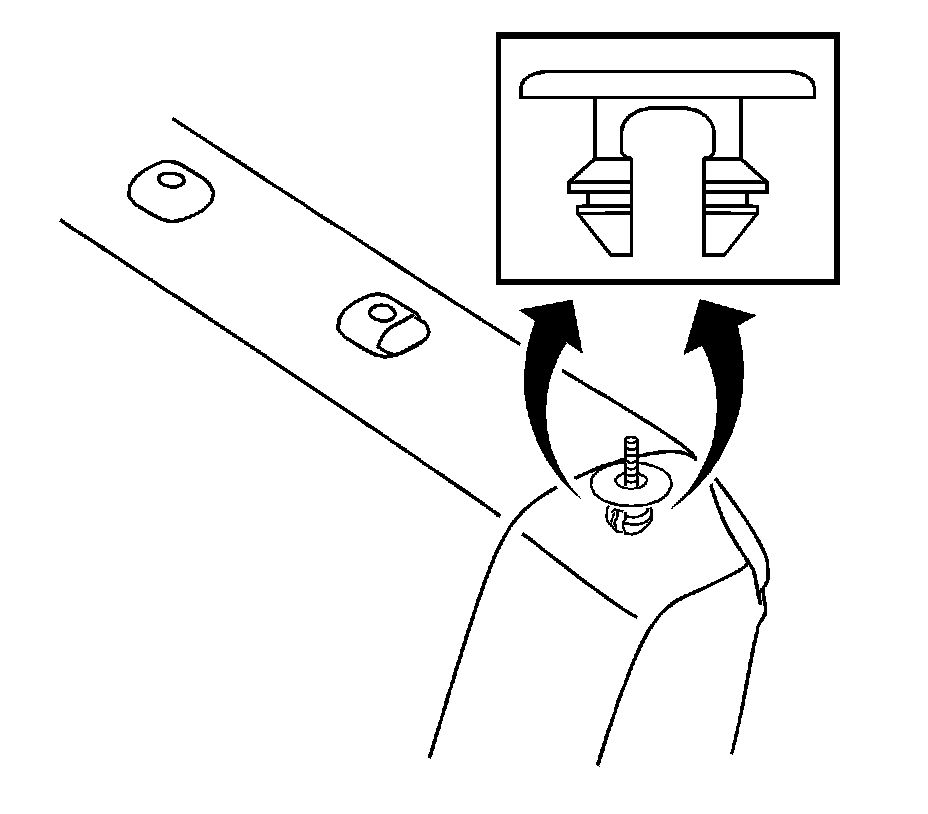

4. Remove rear seat latch knob retainer.

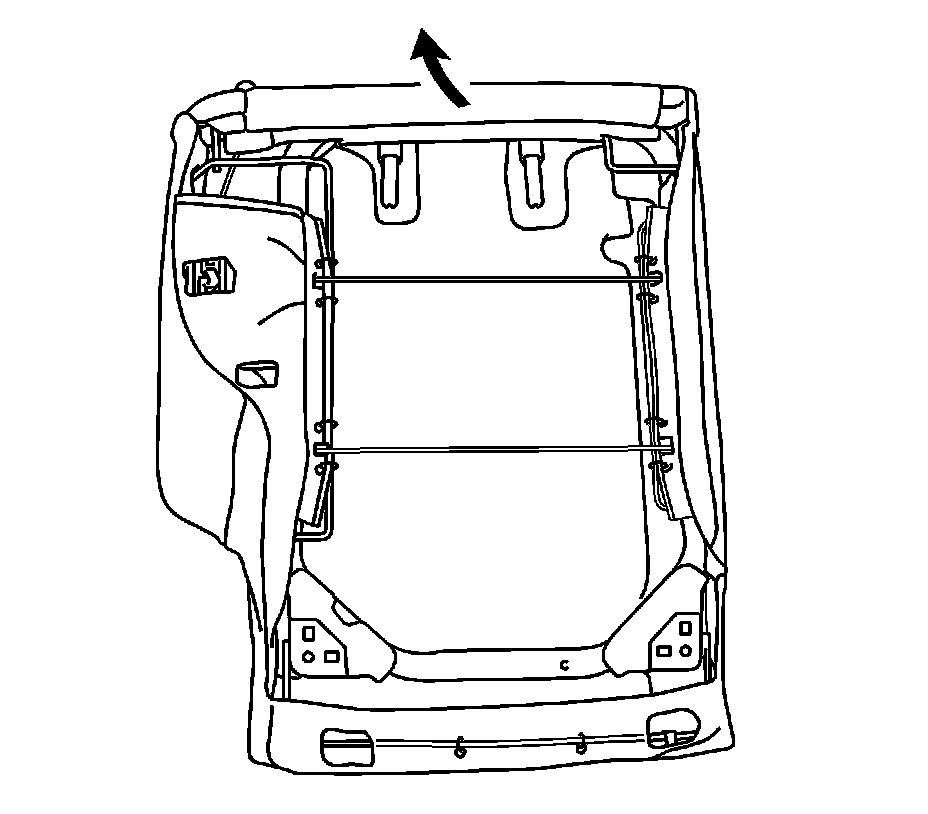

5. Disengage the hook which secures the seat back cushion cover to the seat back.
6. Cut and remove the hog rings around the perimeter of the rear seat back cushion.
7. Remove the rear seat back cushion cover and pad from the frame.

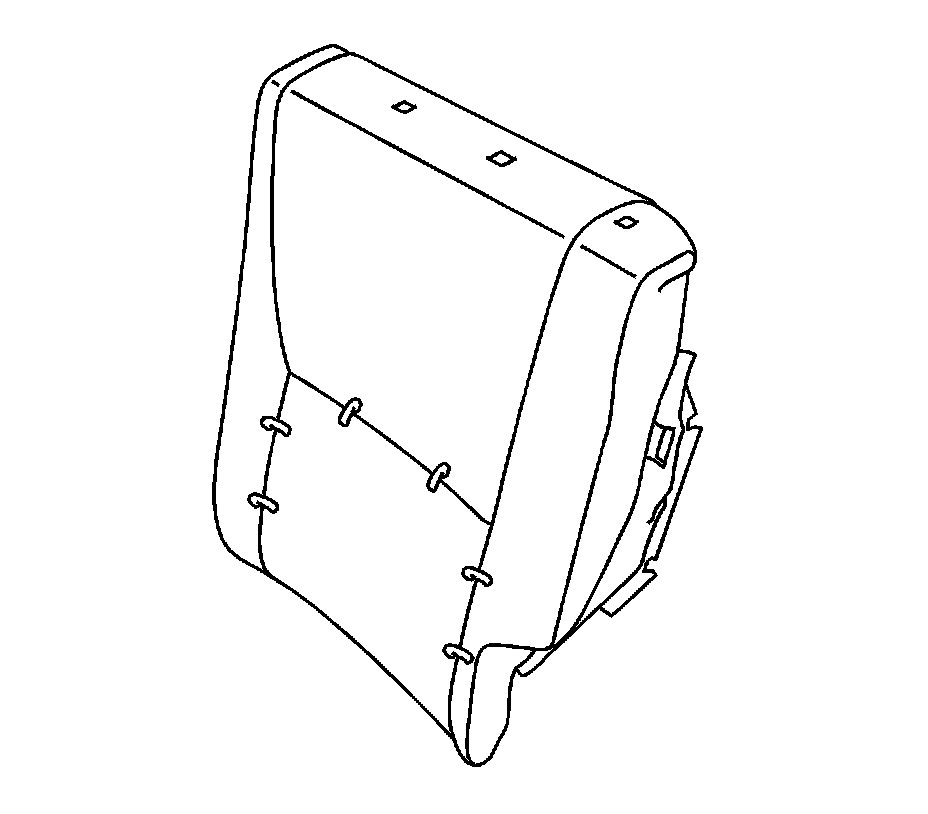

8. Cut and remove the 6 hog rings securing the rear seat back cover to the pad.
9. Remove the rear seat back cushion cover from the pad.
10. Remove the rear seat back cushion pad) from the frame, if necessary.

Installation Procedure

1. Install the rear seat back cushion cover to the seat back pad.

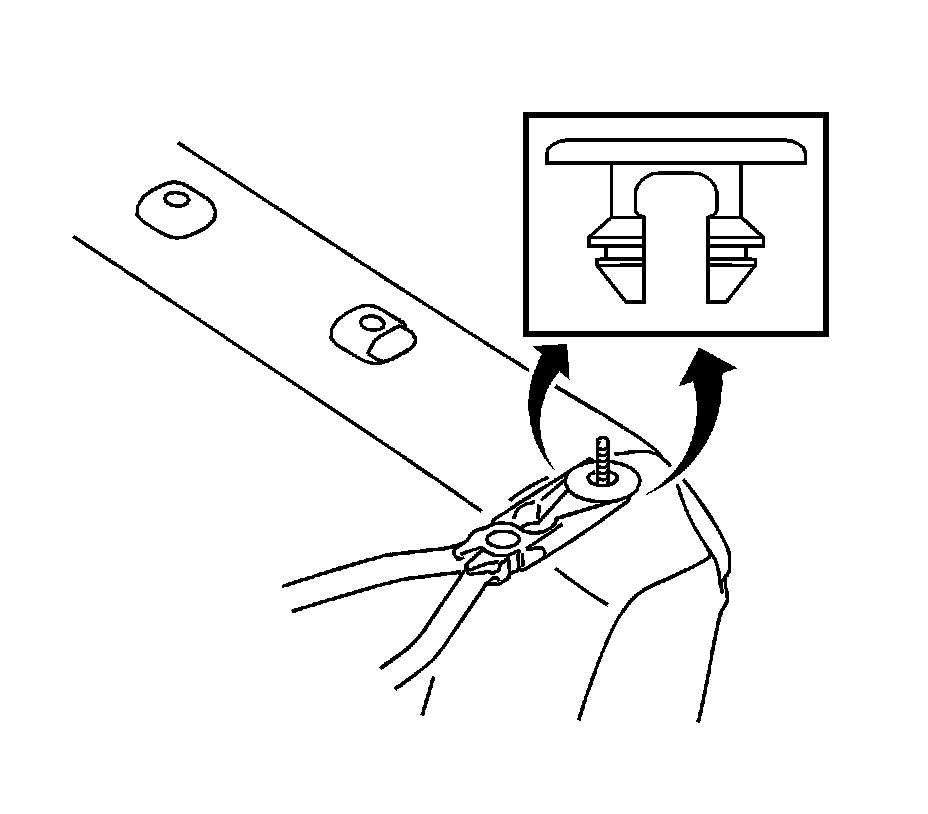

2. Use hog ring pliers, install new hog rings. Ensure that the rear seat back cushion cover is secured to the pad.
3. Install the rear seat back cushion pad and cover to the frame.




4. Use hog ring pliers, install new hog rings. Ensure that the rear seat back cushion cover is secured to the frame.




5. Install rear seat latch knob retainer.




6. Remove rear seat latch knob.
7. Install the rear seat back. Refer to Rear Split Folding Seat Back Replacement (Rear Split Folding Seat Back Replacement).
8. Install the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (Rear Seat Head Restraint Replacement).
