Rear Seat Back Cushion Trim Panel Replacement (Left)

Rear Seat Back Cushion Trim Panel Replacement (Left)

Removal Procedure




1. Fold down the left rear seat back cushion.
2. Remove the 2 bolt covers.

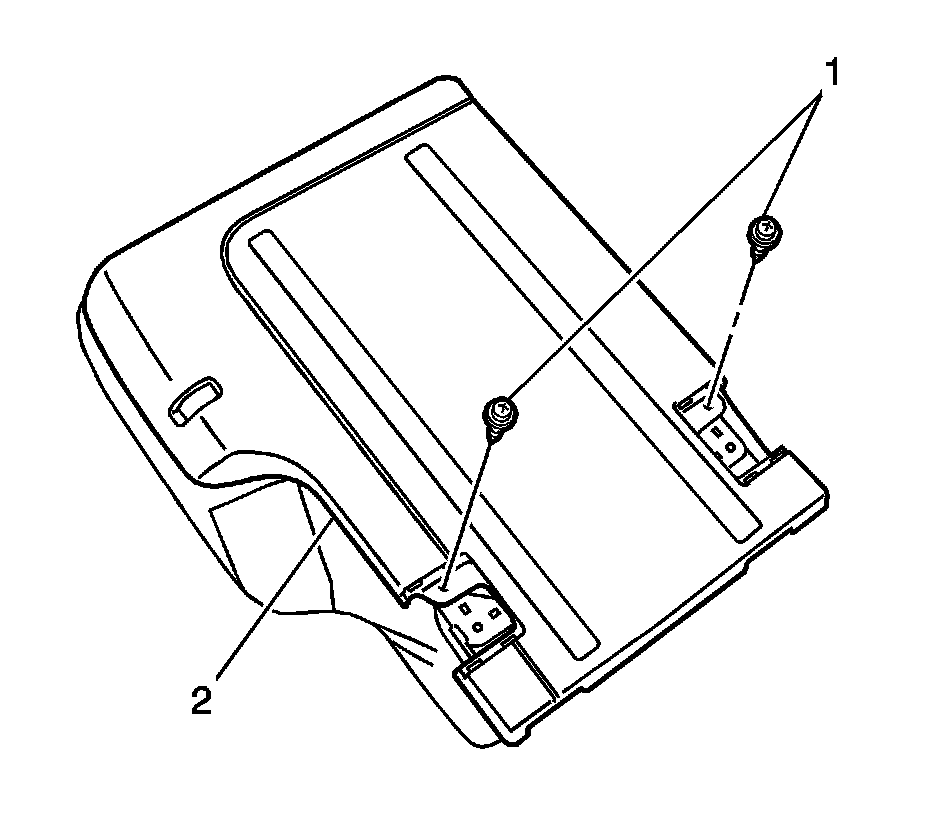

3. Remove the 2 screws (1) from the rear seat back trim panel (2).

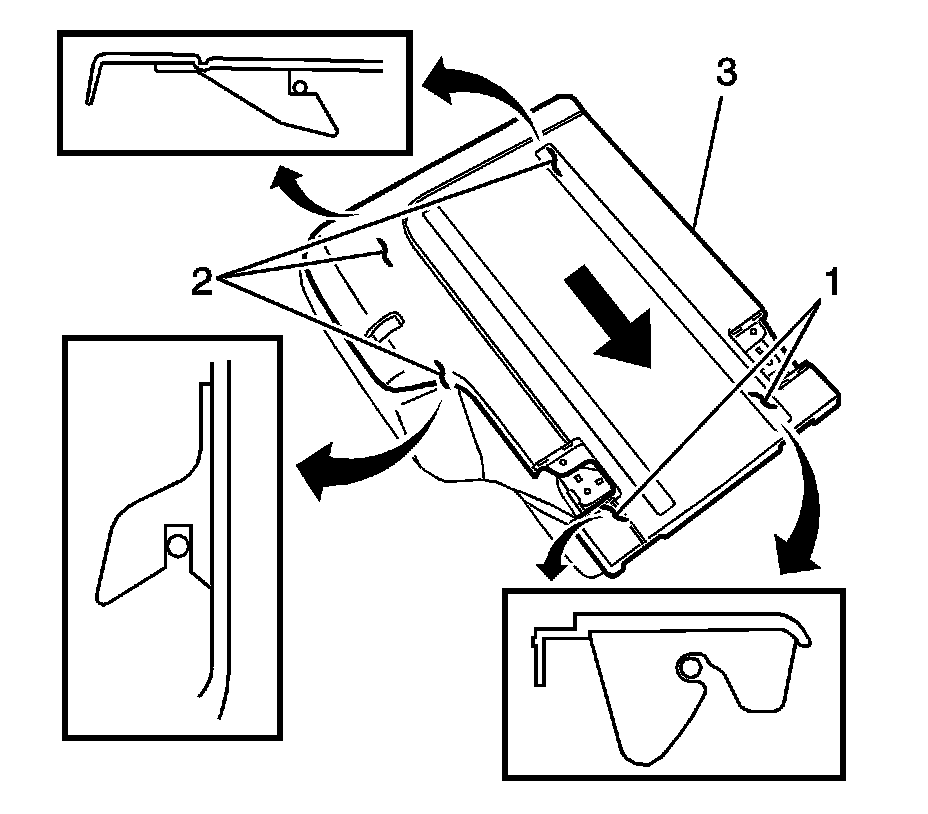

4. Disengage the 2 hooks (1) and 3 guides (2).
5. Remove the left rear seat back trim panel (3).

Installation Procedure




1. Install the left rear seat back trim panel (3) to the left rear seat back.
2. Engage the 2 hooks (1) and 3 guides (2).




3. Secure the trim panel (2) with the 2 screws (1).
4. Install the bolt covers to the trim panel (2).
5. Return the left rear seat to the up right position.
