Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board)

Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board)

Removal Procedure

1. Remove the front seat assembly. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
2. Remove the head restraint from the seat back cushion.

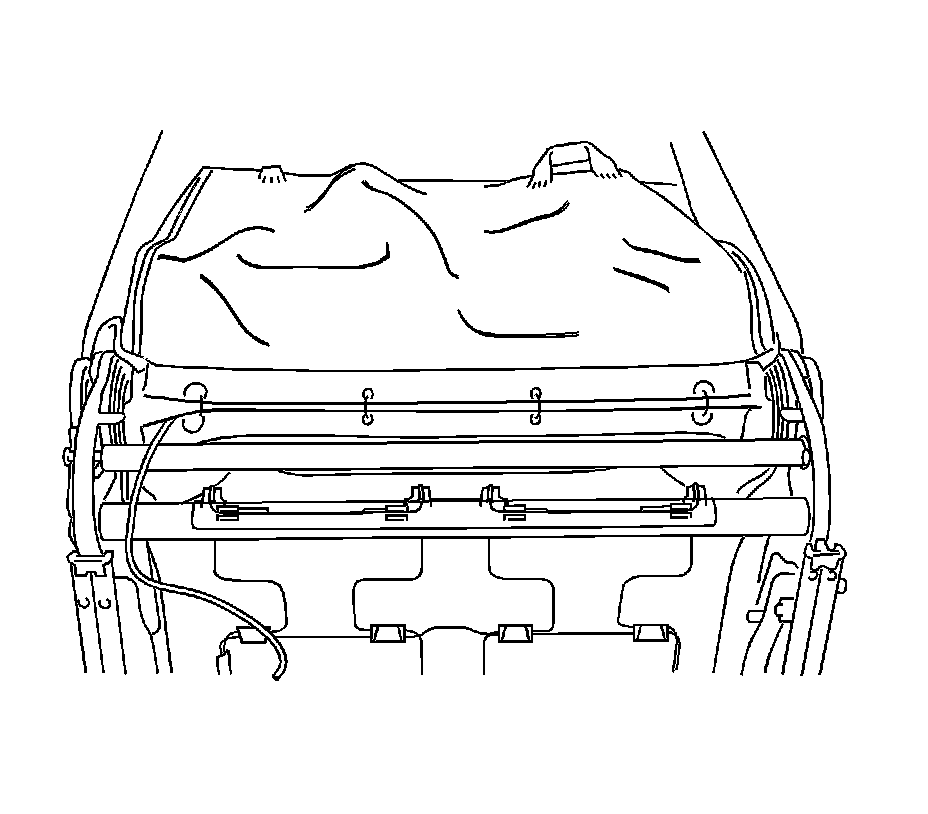

3. Remove the 4 hog rings.

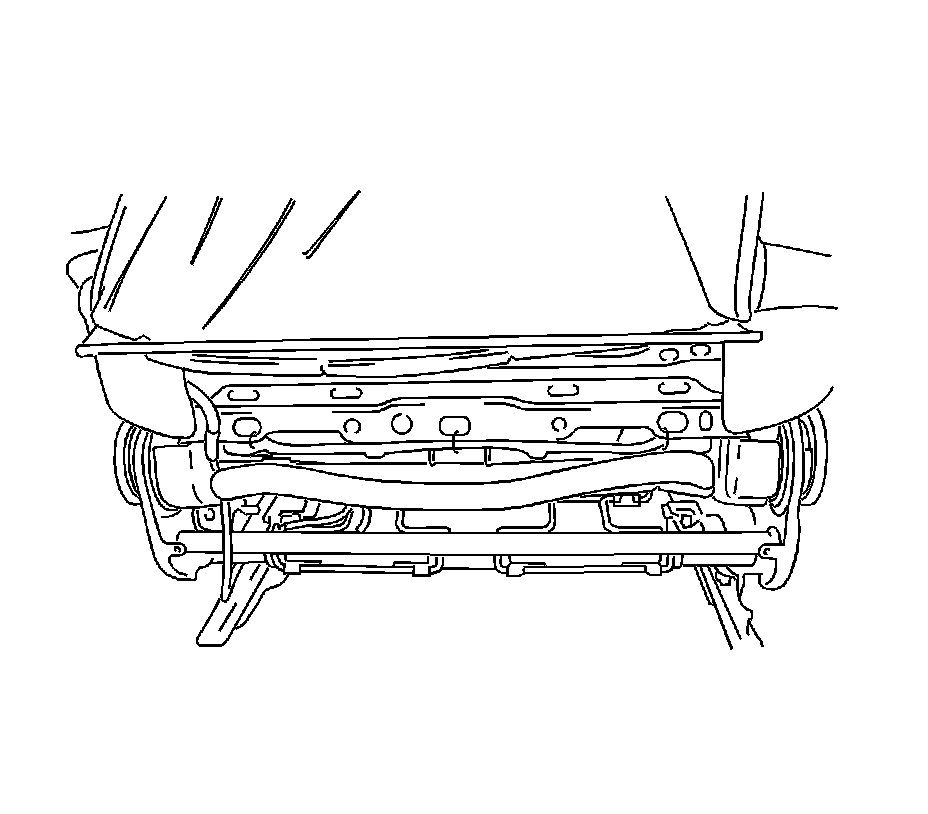

4. Remove the 3 hog rings.

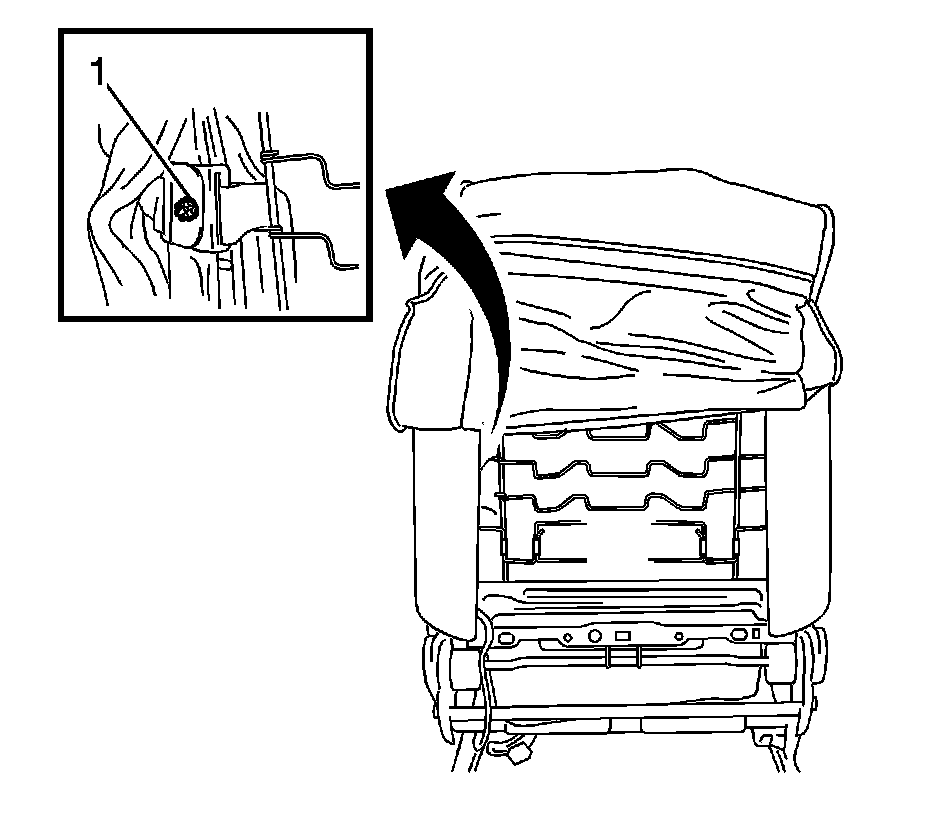

5. Remove the seat back cover bracket nut (1).

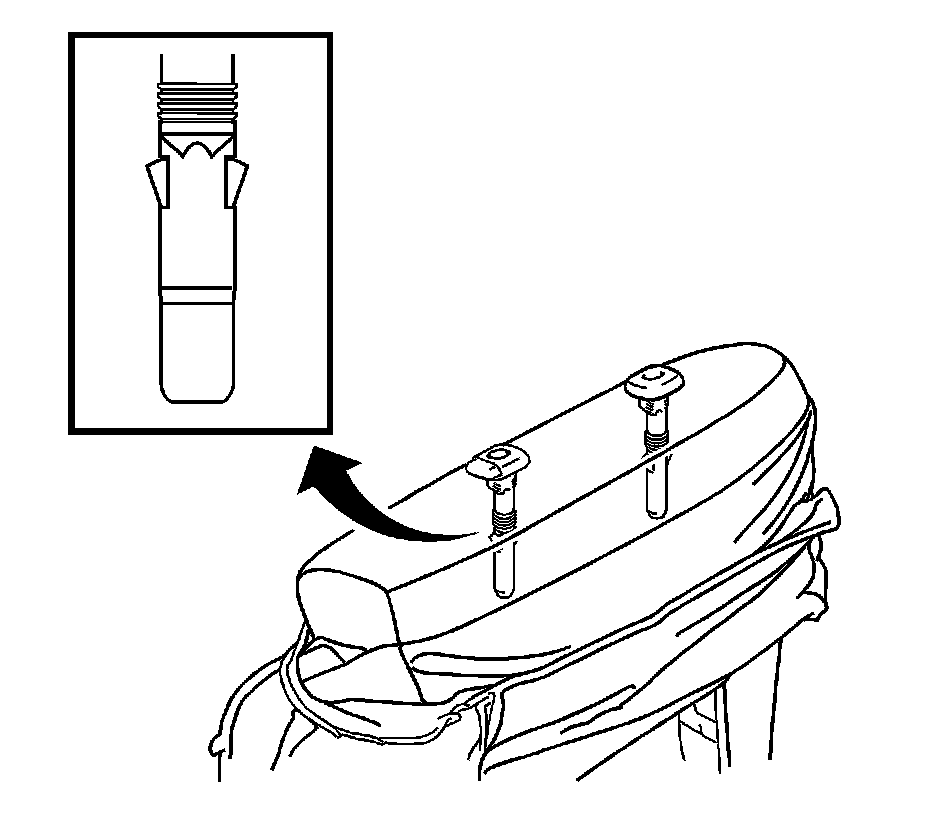

6. Disengage the head restraint guides claws and remove from the seat back.

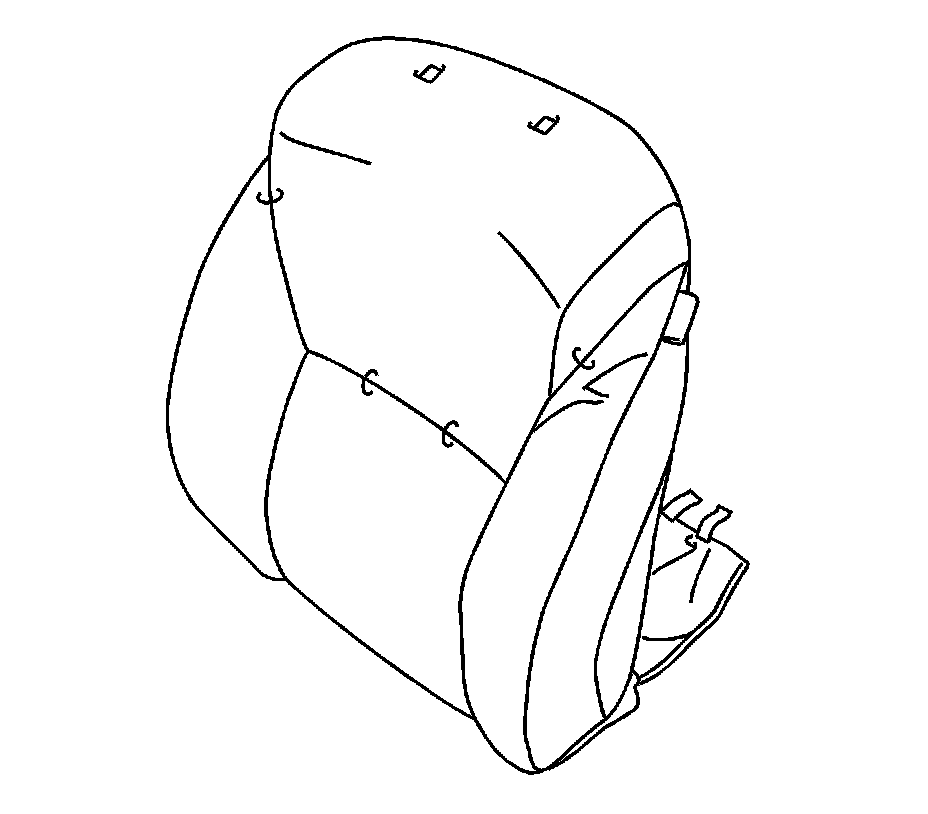

7. Remove the 4 hog rings and separate seat back cushion pad from the cover.
8. Remove the seat back cushion cover and pad from the frame.

Installation Procedure




1. Install the seat back cushion pad to the cover.
2. Use hog ring pliers, install new hog rings. Ensure that the seat back cushion cover is secure.
3. Install the seat back cushion cover and pad to the frame.




4. Install the head restraint guides engaging claws to the seat back.




5. Install the seat back cover bracket nut (1).




6. Install the hog rings.




7. Install the hog rings.
8. Install the head restraint to the seat back cushion.
9. Install the front seat assembly. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
