Sunroof / Moonroof Panel: Service and Repair

Sunroof Glass Panel Replacement

Removal Procedure




1. Tilt the sunroof window into the up position.

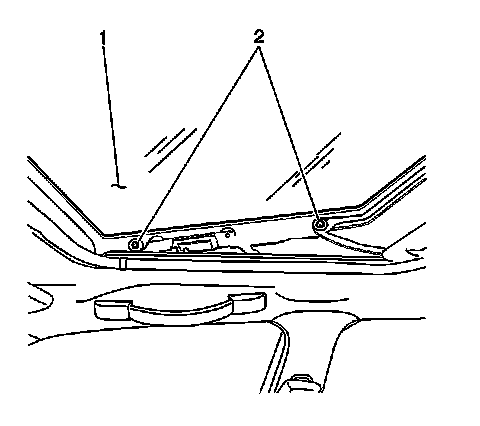

2. Remove the following components from the vehicle:

* The 2 screws (2) which secure each side of the sunroof window
* The sunroof window (1)

Installation Procedure




1. Install the sunroof window (1) to the vehicle. Secure each side of the window with the 2 screws (2). Do not tighten fully.
2. Adjust the sunroof window as necessary. Refer to Sunroof Window Height and Opening Fit Adjustment (Adjustments).
