Sun Shade: Service and Repair

Sunroof Sunshade Replacement

Removal Procedure




1. Remove the sunroof housing. Refer to Sunroof Replacement (Service and Repair).

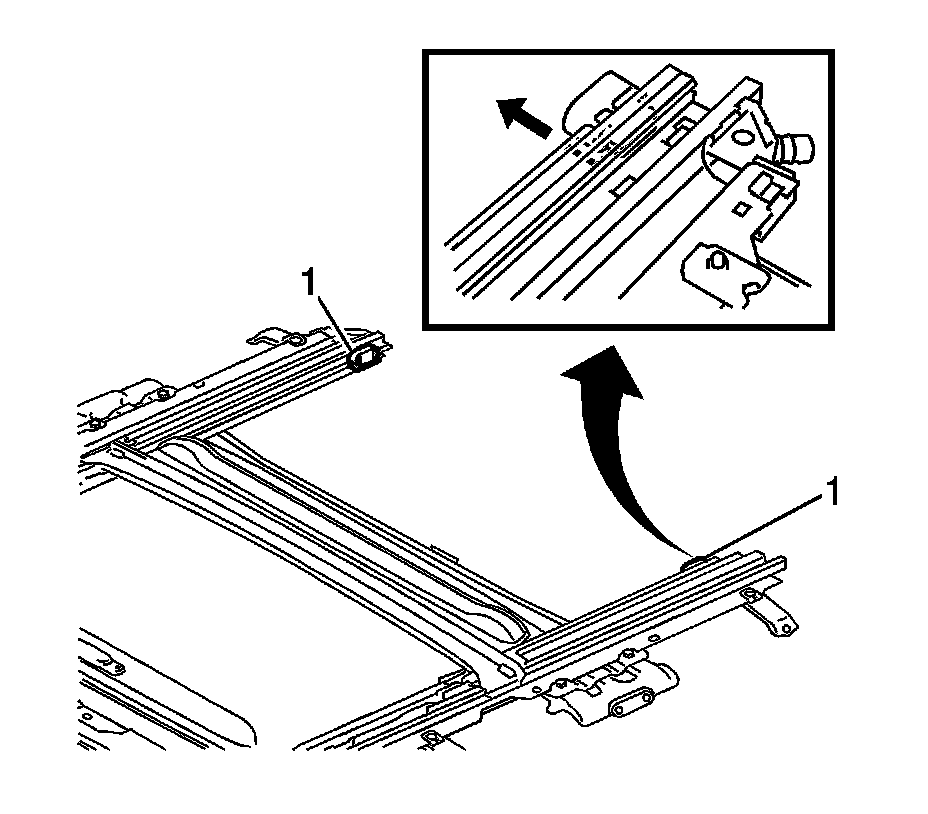

2. Remove the sunshade stop (1) from the sunroof housing.

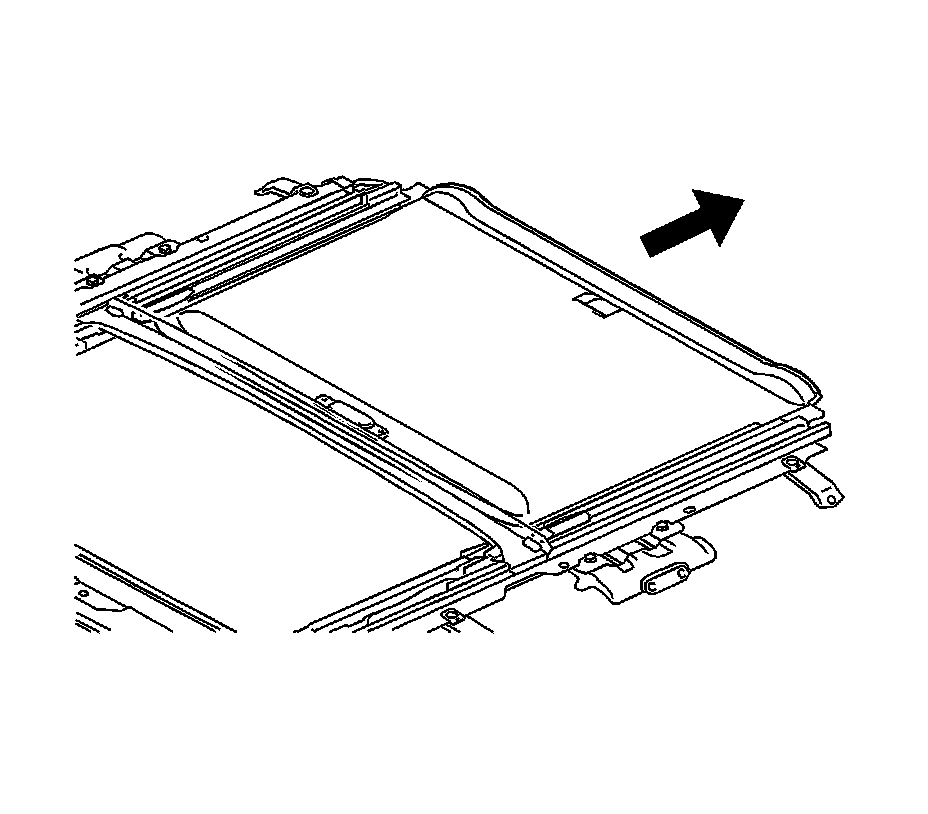

3. Slide and remove the sunshade trim from the sunroof housing.

Installation Procedure

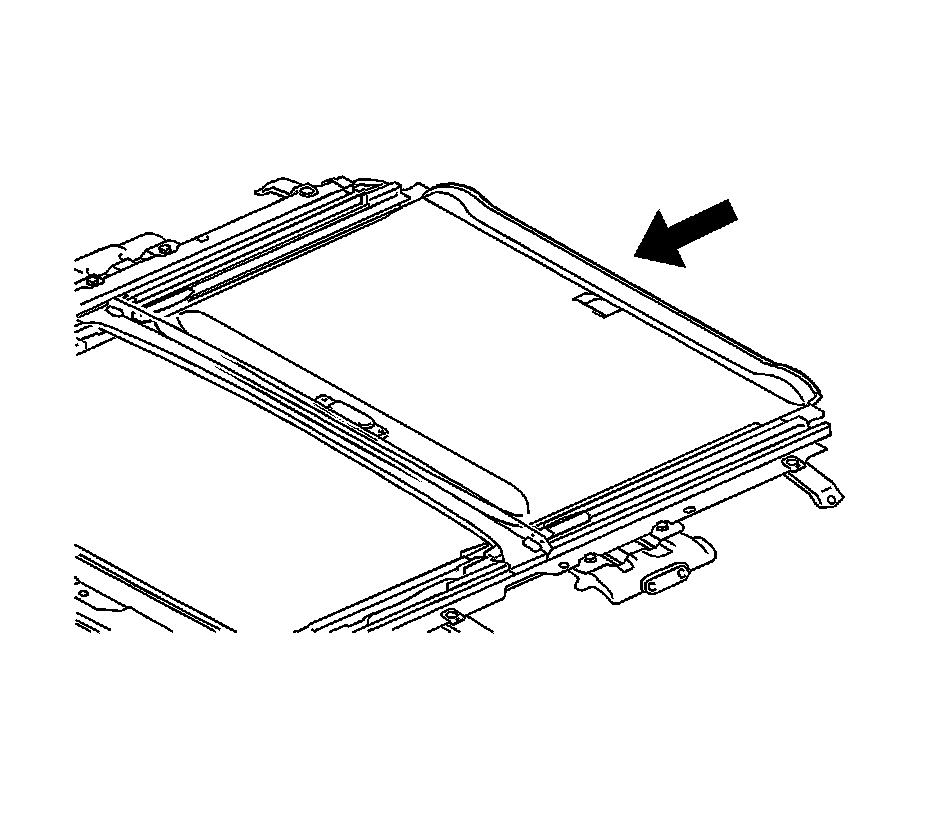

1. Install the sunroof sunshade to the sunroof housing.

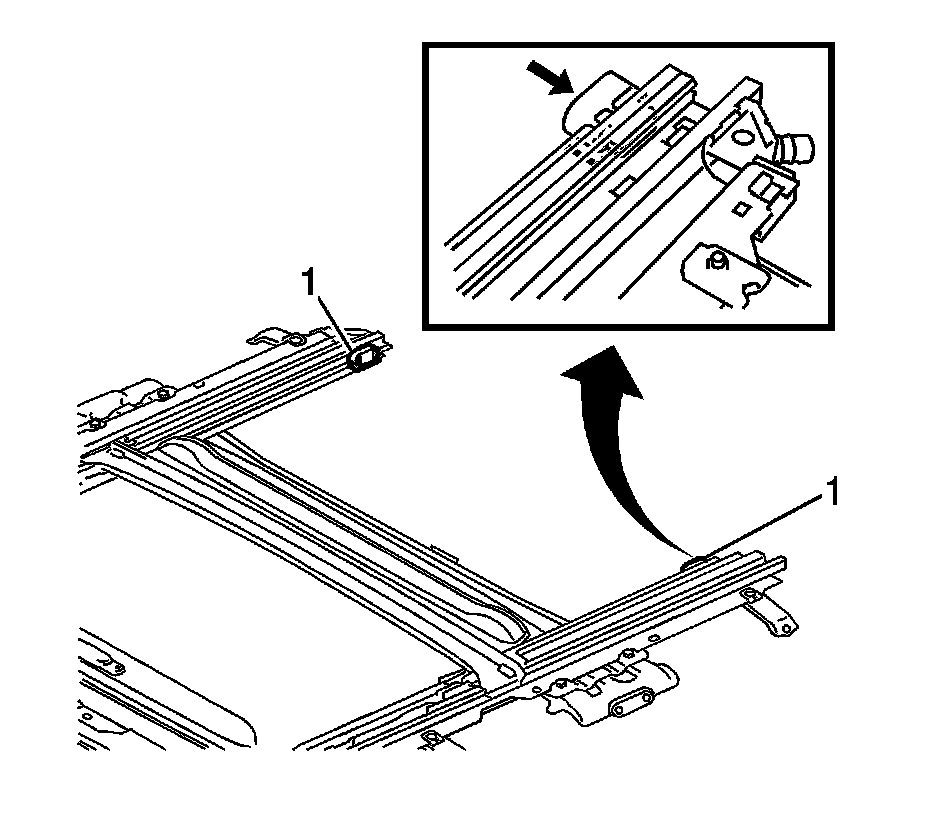

2. Install the sunroof shade stop (1) to the sunroof housing.
3. Install the sunroof housing. Refer to Sunroof Replacement (Service and Repair).
