Rear Storage Compartment Replacement

Rear Storage Compartment Replacement

Removal Procedure

1. Remove the tool storage compartment lid. Refer to Tool Stowage Compartment Replacement (Tool Stowage Compartment Replacement).




2. Turn the knobs (3) counter clockwise.
3. Remove tool storage access panel (1), by lifting up and disengage the two guides (2).
4. Remove the upper child tether anchors. Refer to Child Restraint Tether Anchor Replacement (Child Restraint Tether Anchor Replacement).

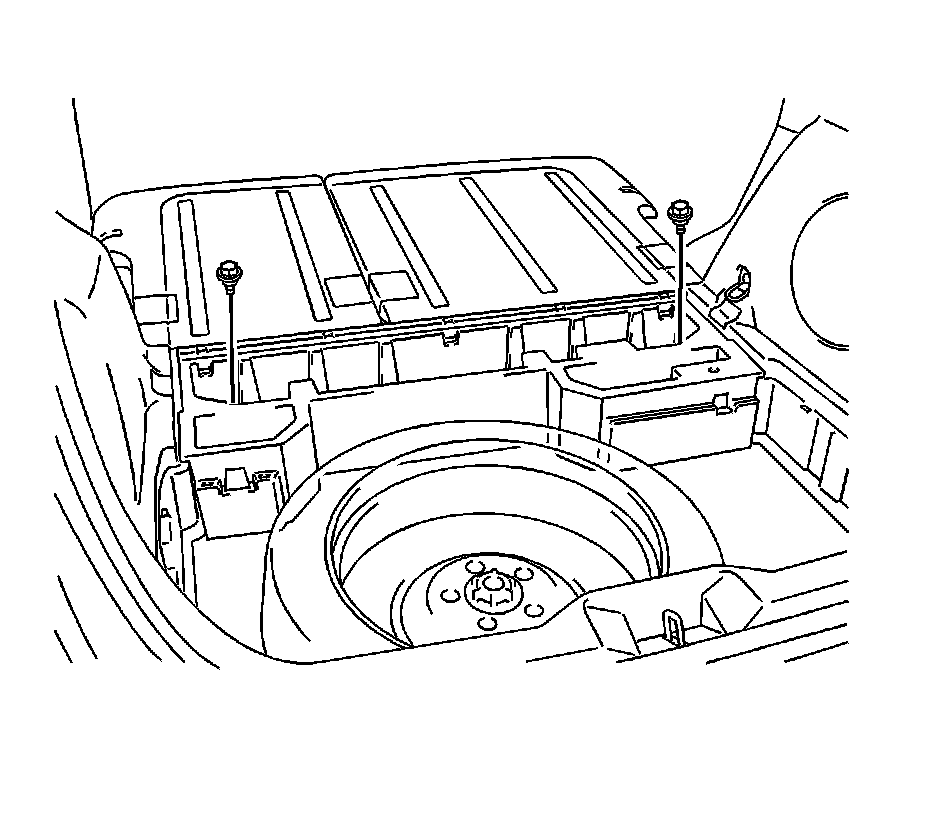

5. Remove the two bolts.
6. Remove the rear storage compartment.

Installation Procedure




1. Install the rear storage compartment.
2. Install the two bolts.




3. Install the upper child tether anchors. Refer to Child Restraint Tether Anchor Replacement (Child Restraint Tether Anchor Replacement).
4. Engage the two guides (2) and install rear storage access panel (1).
5. Turn the knobs (3) clockwise.
6. Install the tool storage compartment lid. Refer to Tool Stowage Compartment Replacement (Tool Stowage Compartment Replacement).
