Sunshade Anchor Replacement

Sunshade Anchor Replacement

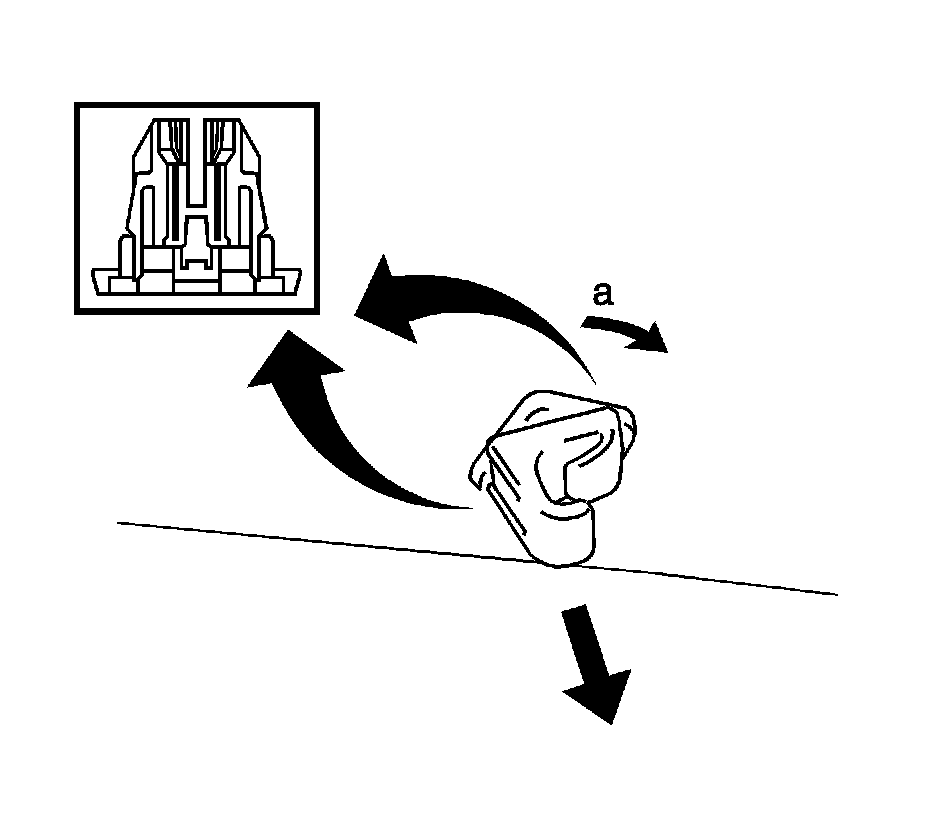

Removal Procedure




1. Position the sunshade as necessary in order to gain access to the sunshade anchor.
2. Turn the sunshade anchor, by turning it 45 degrees and pull out.
3. Disengage the two clips.
4. Remove the sunshade anchor.

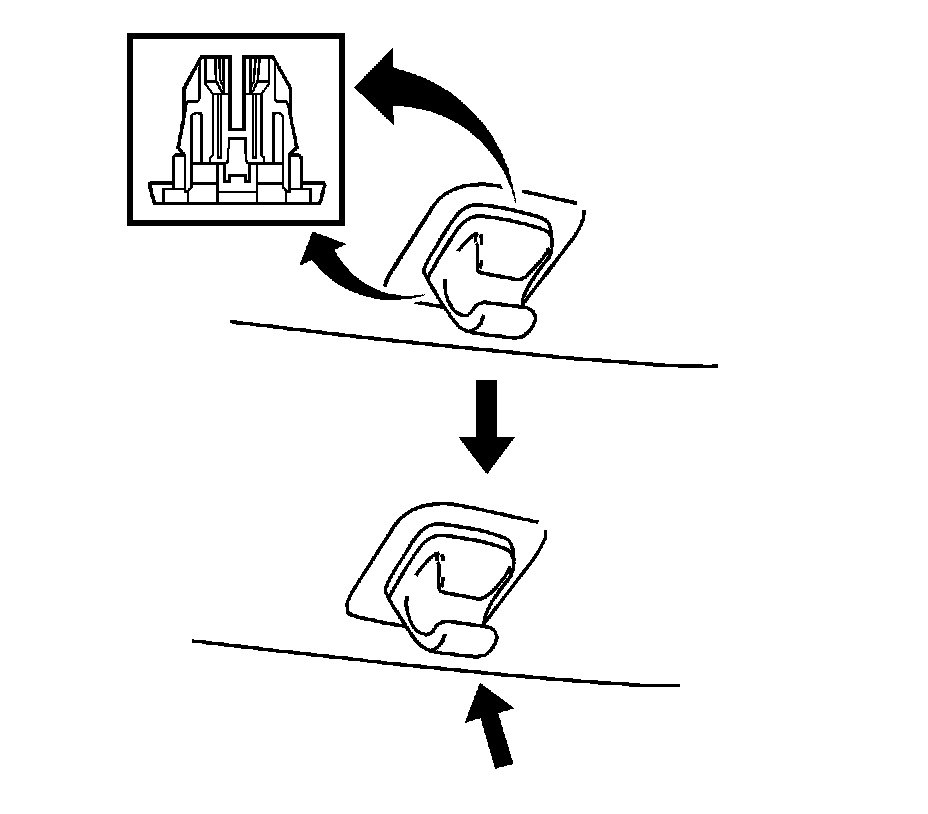

Installation Procedure




1. Engage the two clips and install the sunshade anchor to the vehicle.
2. Reposition sunshade.
