Sunshade

Sunshade Replacement

Removal Procedure

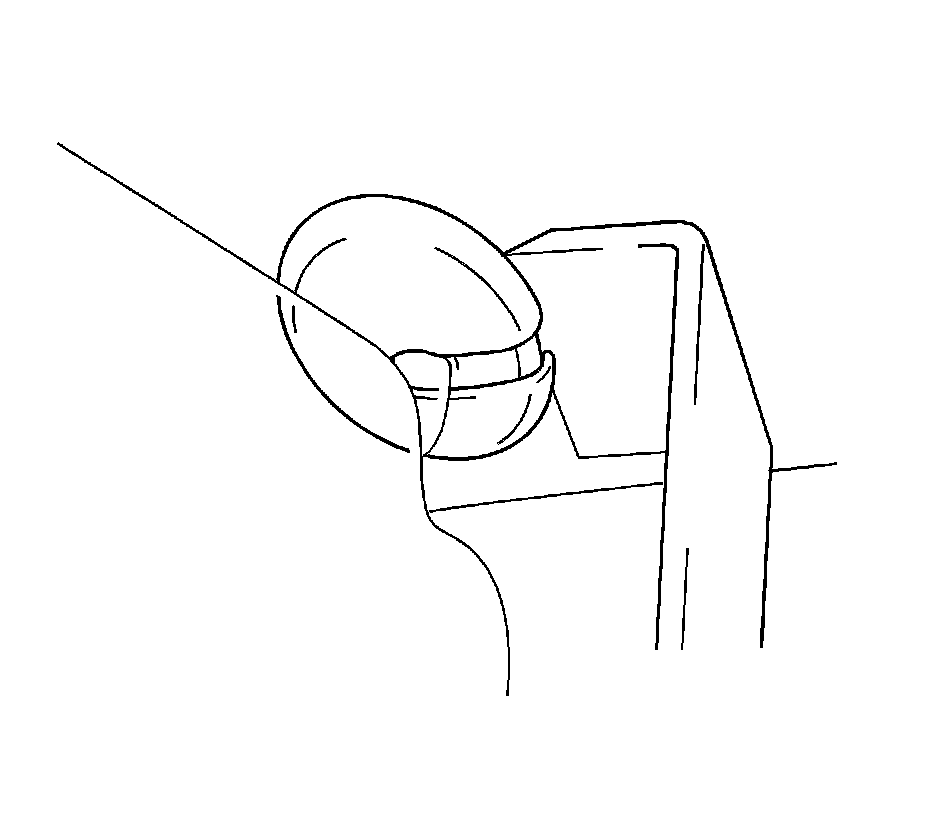

1. Using a flat-bladed tool, disengage the four retainers and remove the sunshade bracket cover.




2. Disengage the two clips and remove the sunshade.
3. Remove the two clips from the vehicle.

Installation Procedure




1. Install the two clips to the vehicle
2. Engage the two clips and install the sunshade.




3. Engage the four retainers and install the sunshade bracket cover.
