Passenger Assist Handle: Service and Repair

Assist Handle Replacement

Removal Procedure





Note: Do not forcibly pry the assist handle covers to prevent them from being deformed.

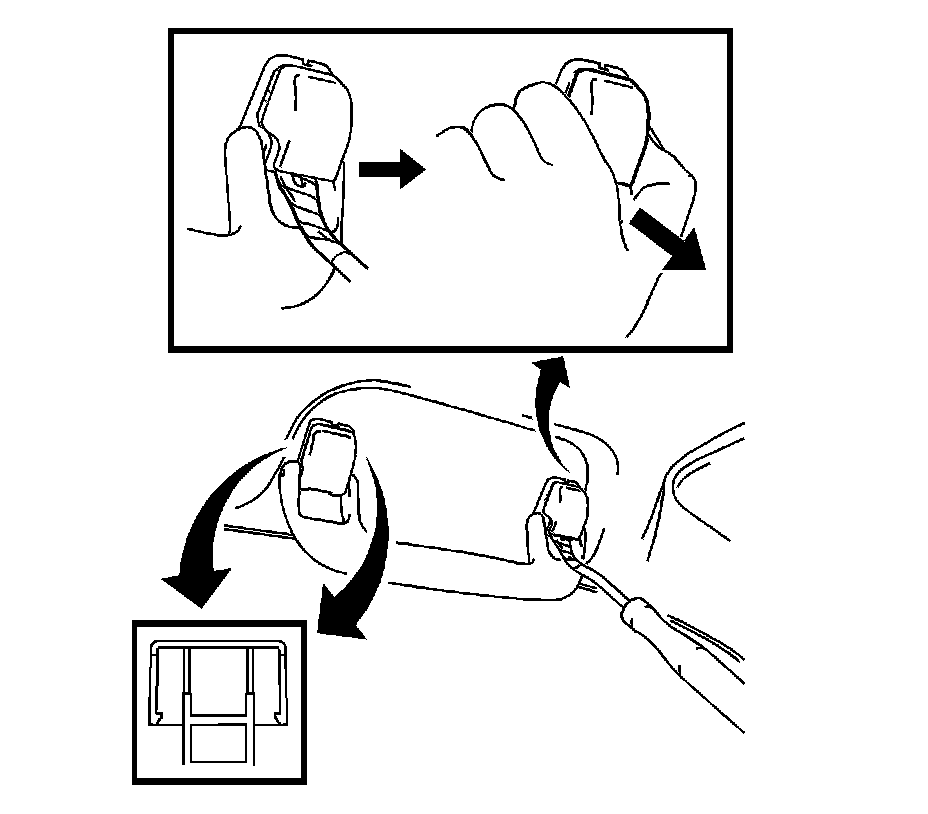

1. Using a taped trim tool, disengage the four retainers.
2. Remove the assist handle covers.

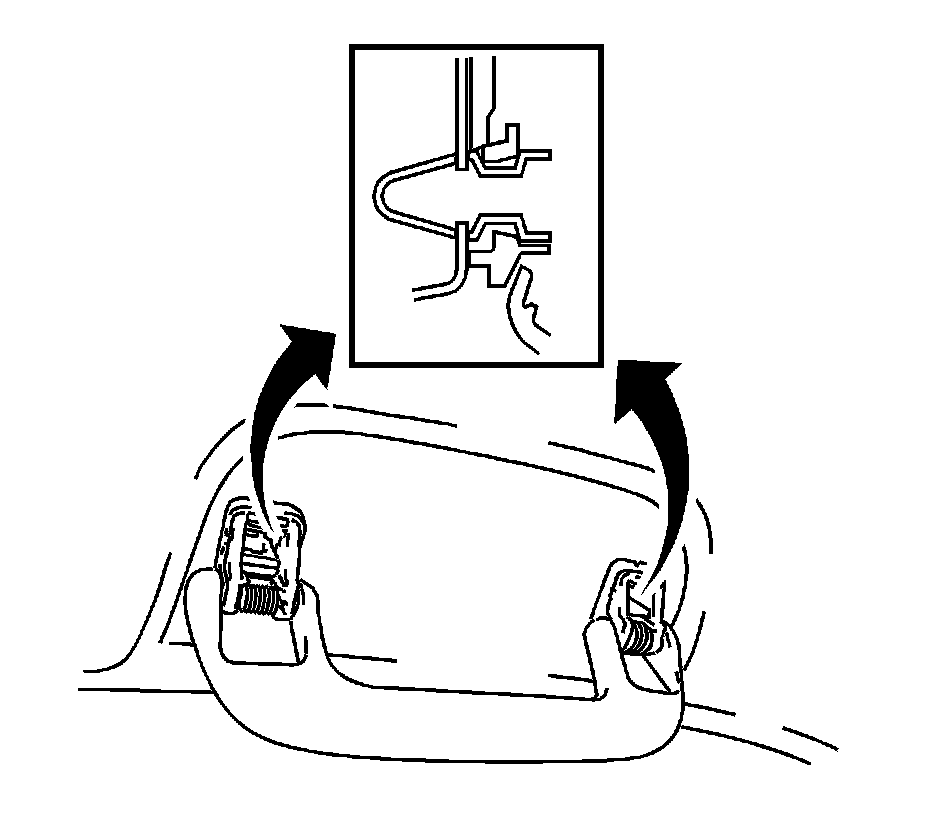

3. Disengage the two clips and remove the assist handle.
4. Remove the two clips from the vehicle.

Installation Procedure

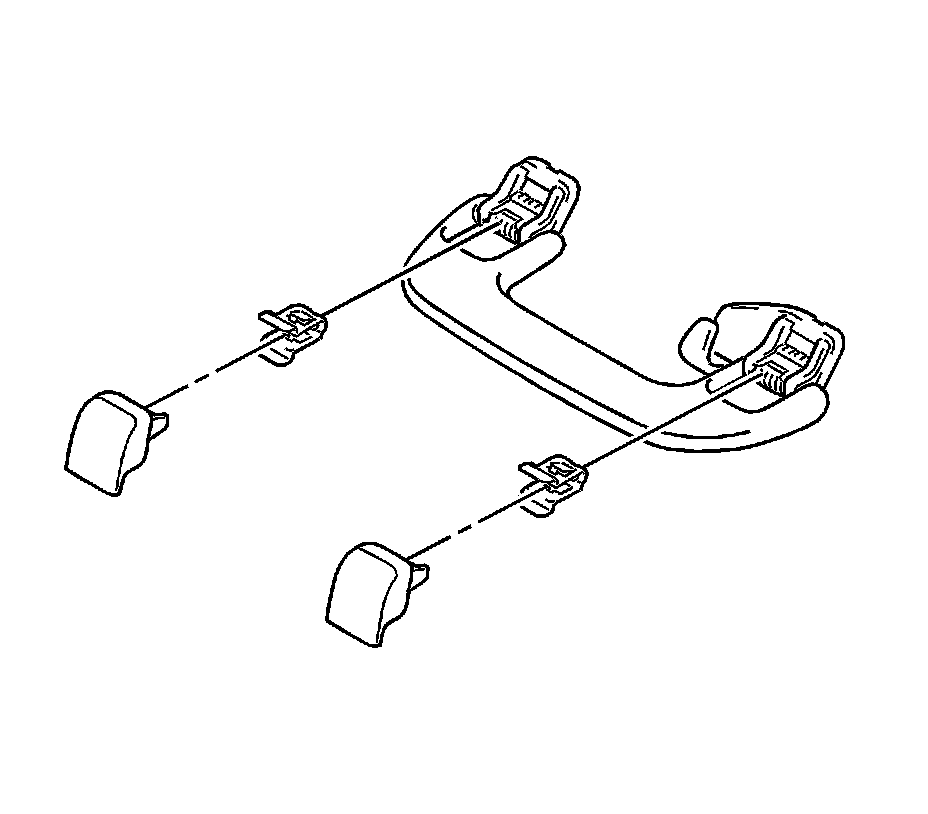

1. Install the two clips and covers to the assist handle.

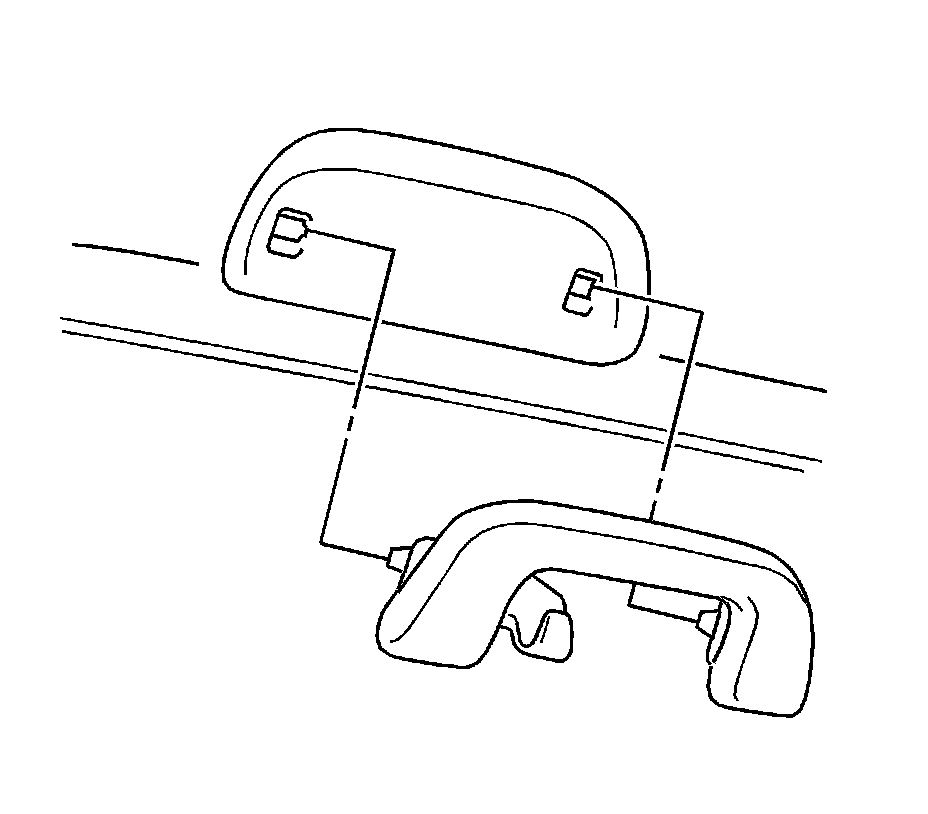

2. Install the assist handle to the vehicle.
