Front Floor Console Trim Plate Replacement

Front Floor Console Trim Plate Replacement

Removal Procedure

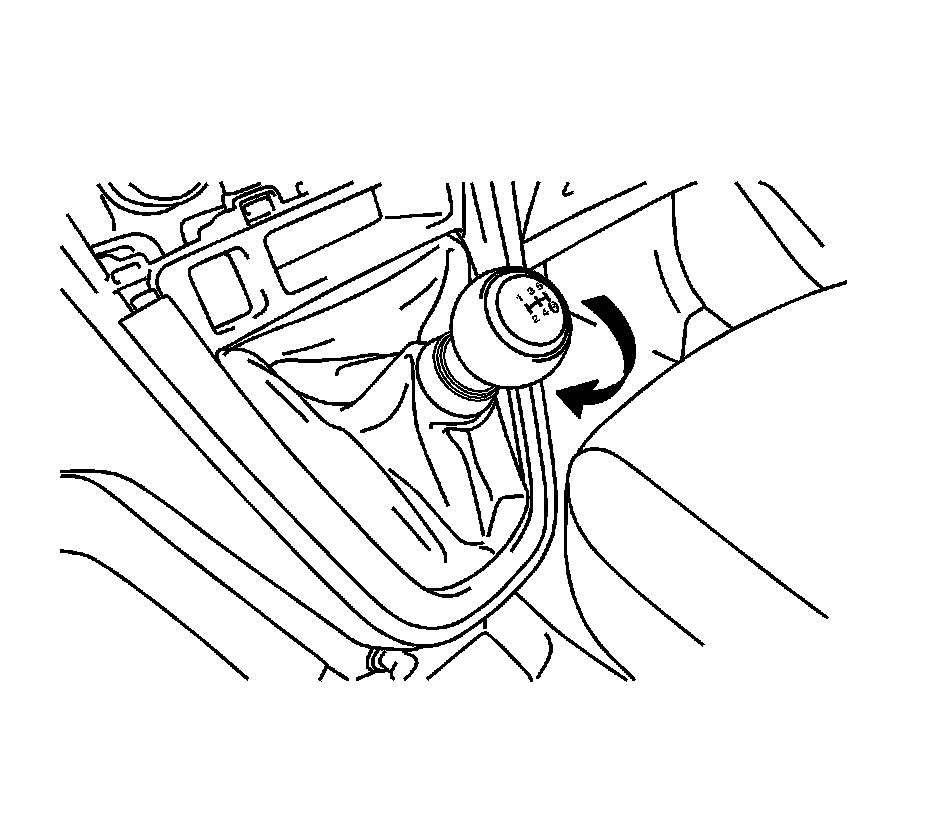

1. Remove the manual transmission shift knob, if equipped by turning counterclockwise.

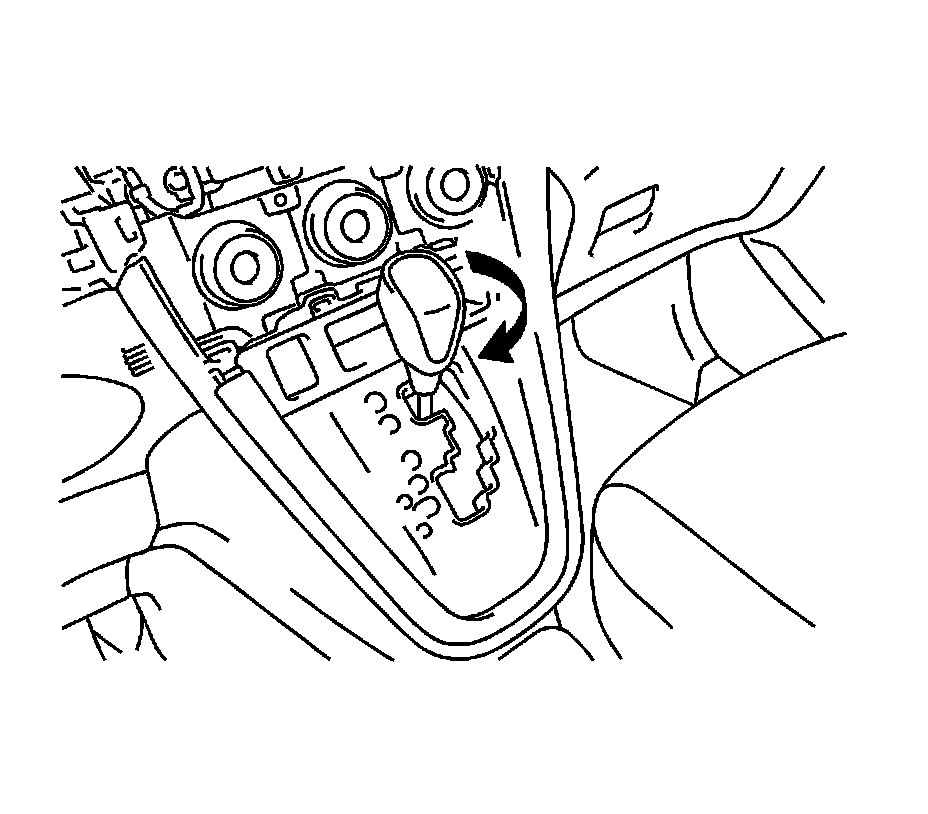

2. Remove the automatic transmission shift knob, if equipped by turning counterclockwise.

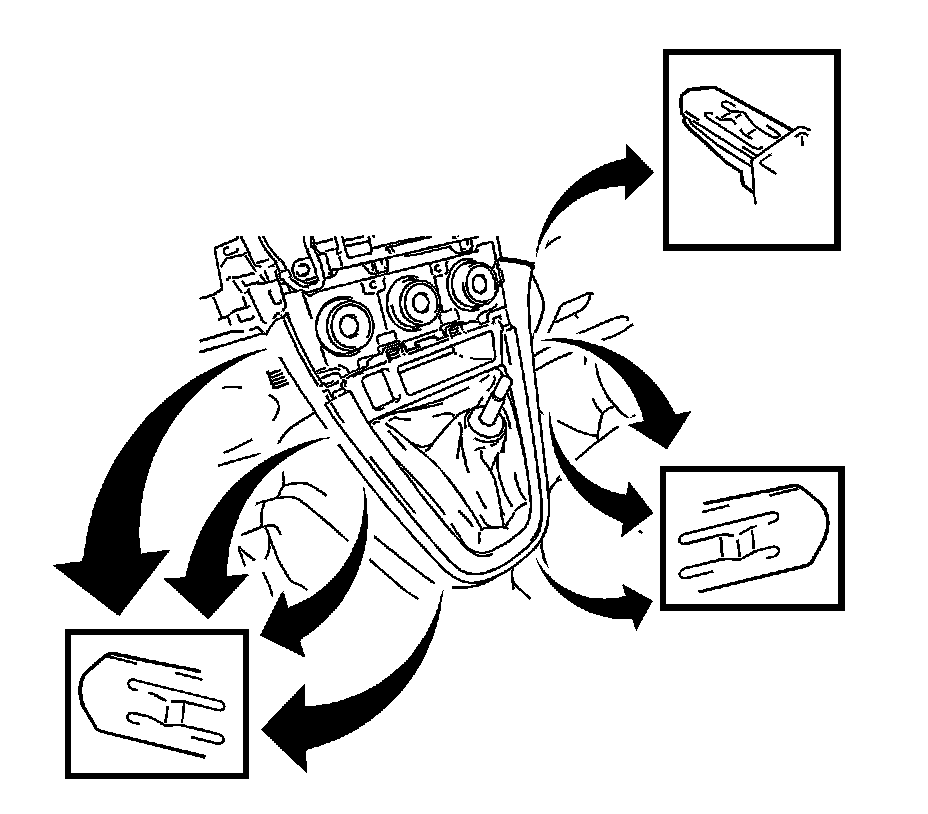

3. Disengage the nine retaining tabs and remove the front floor console trim plate, if equipped with manual transmission.

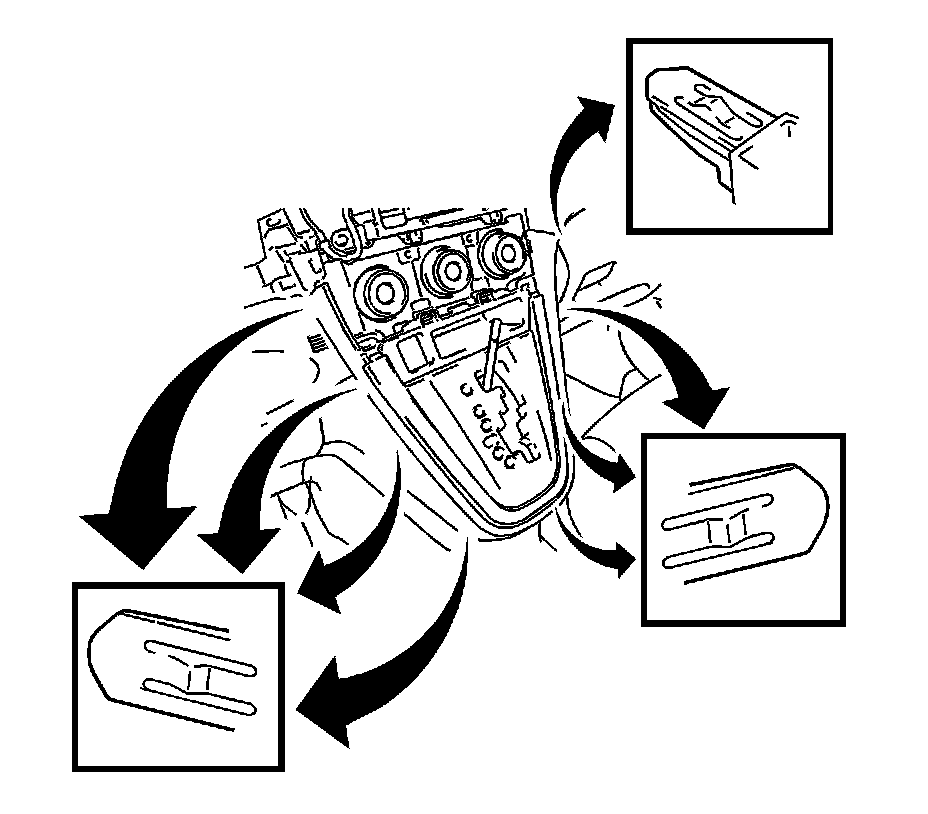

4. Disengage the nine retaining tabs and remove the front floor console trim plate, if equipped with automatic transmission.
5. Disconnect the electrical connector

Installation Procedure




1. Connect the electrical connector
2. Engage the nine retaining tabs and install the front floor console trim plate, if equipped with automatic transmission.




3. Engage the nine retaining tabs and install the front floor console trim plate, if equipped with manual transmission.

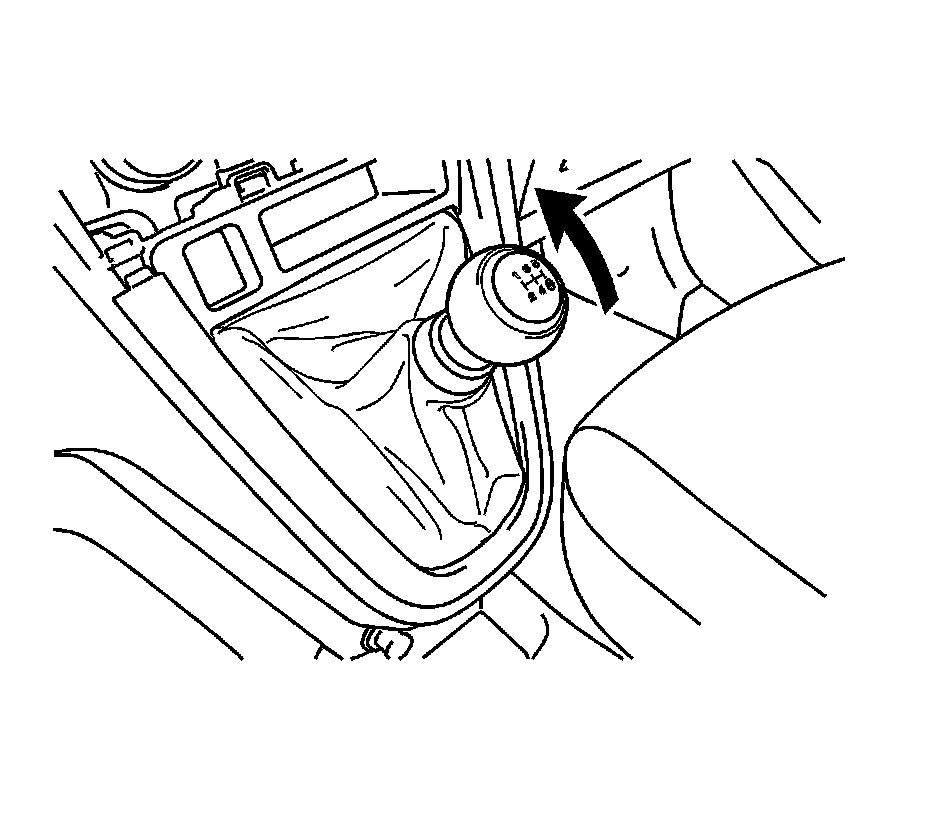

4. Install the manual transmission shift knob, if equipped by turning the knob clockwise.




5. Install the automatic transmission shift knob, if equipped by turning the know clockwise.
