Front Fender Liner: Service and Repair

Wheelhouse Panel Replacement


Removal Procedure

1.Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

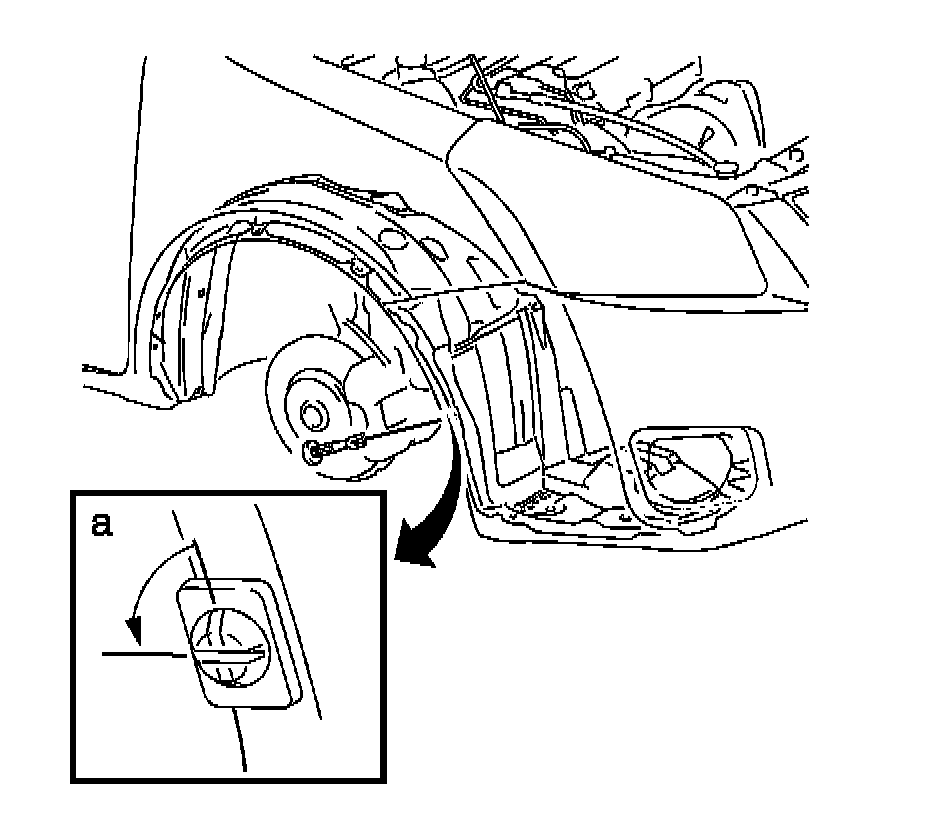

2.Using a flat-bladed tool, turn the pin (A) 90 degrees and remove the pin hold clip.

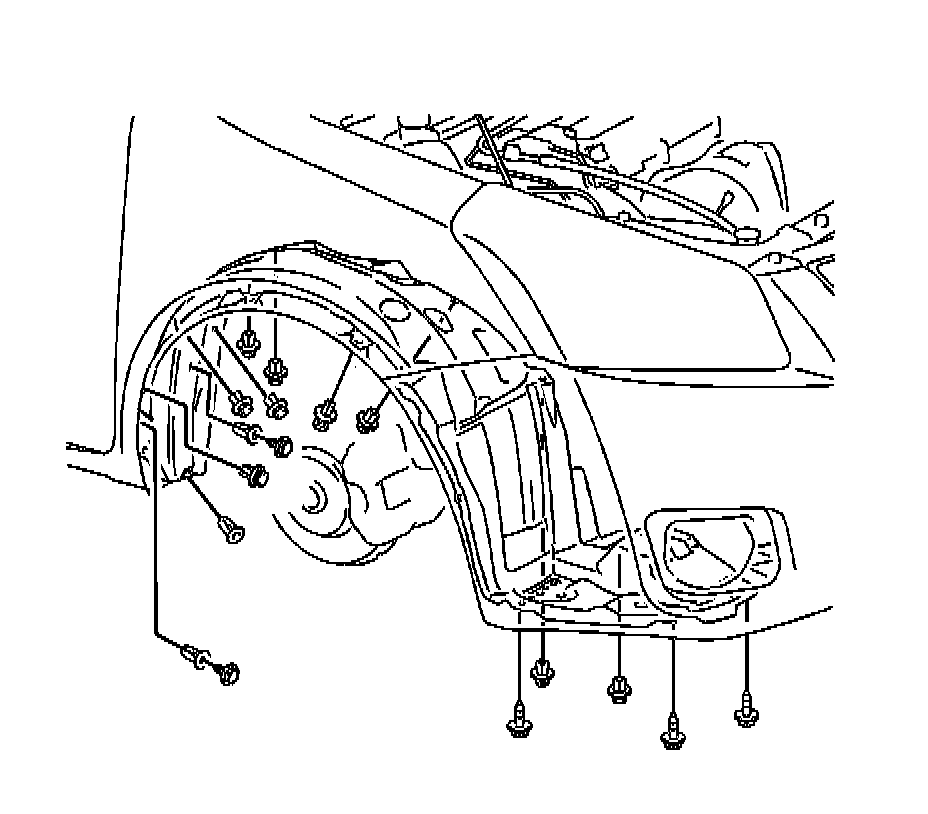

3.Remove the nine clips and the five screws.

4.Remove the three grommets and the wheelhouse panel.

Installation Procedure

Caution:Refer to Fastener Caution .





1.Install the wheel house panel to the fender.

2.Secure the wheel house panel with the five screws and the nine clips. Tighten the wheelhouse panel screws to10 N �m (89 lb in).

3.Install the three grommets.

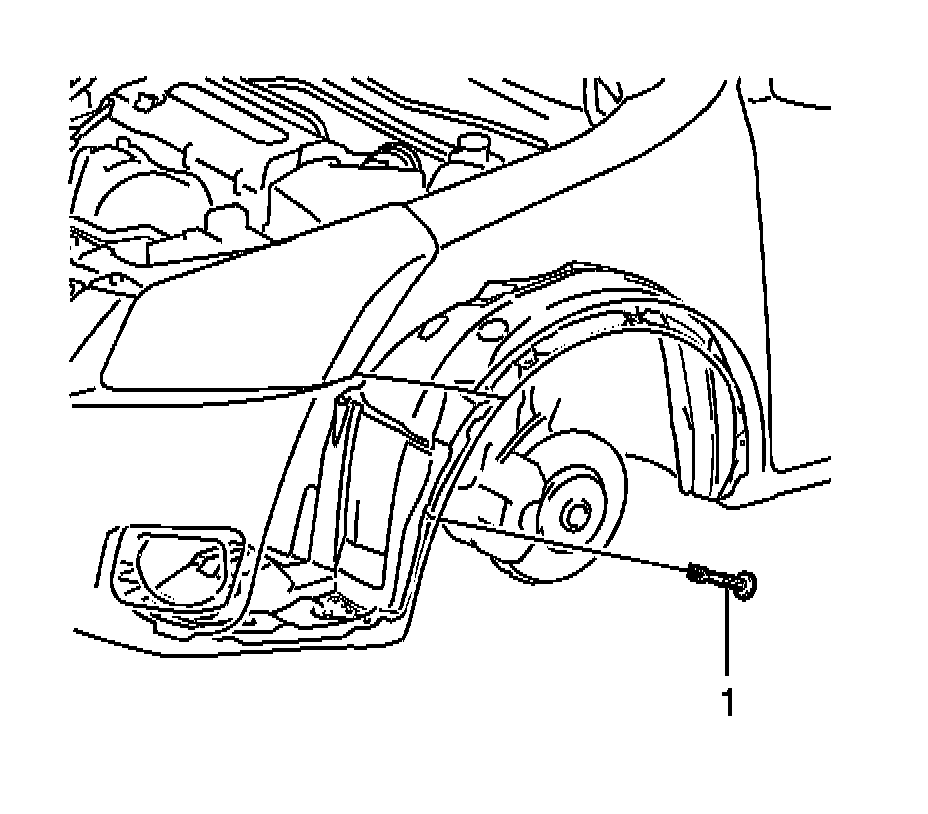

4.Install the pin hold clip (1).

5.Lower the vehicle.
