Front Bumper Fascia Emblem/Nameplate Replacement

Front Bumper Fascia Emblem/Nameplate Replacement

Removal Procedure




1. Apply protective tape around the emblem.

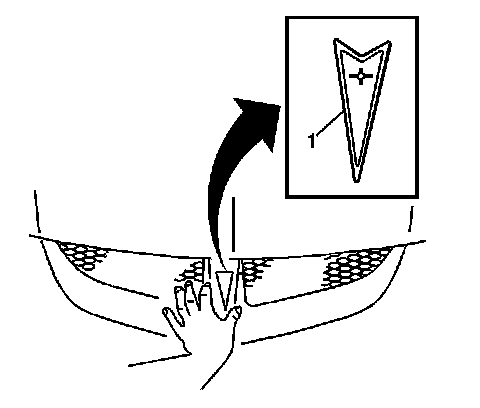

2. Using a taped flat-bladed tool, gently remove the front fascia emblem.

Installation Procedure




1. Remove the protective tape.
2. Clean the vehicle surface where the emblem is going to be installed.
3. Heat the surface using a heat lamp.

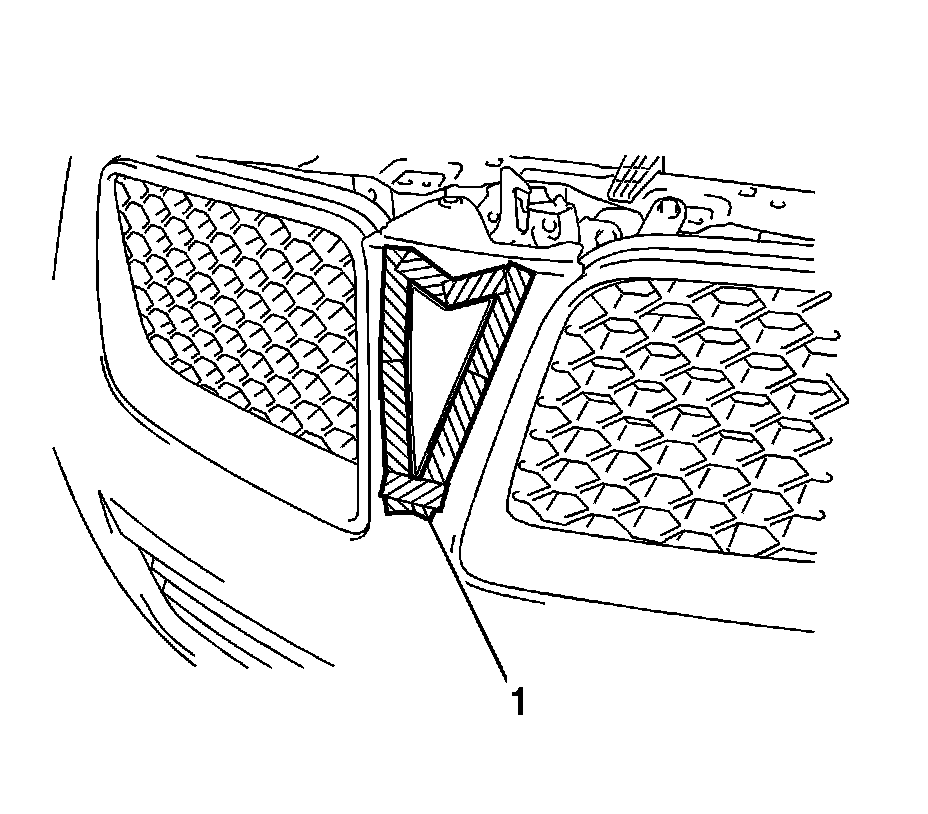

4. Install the front bumper fascia emblem (1).
