Trunk / Liftgate Shock / Support: Service and Repair

Liftgate Strut Replacement

Removal Procedure

Warning

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.




1. Open and support the liftgate.

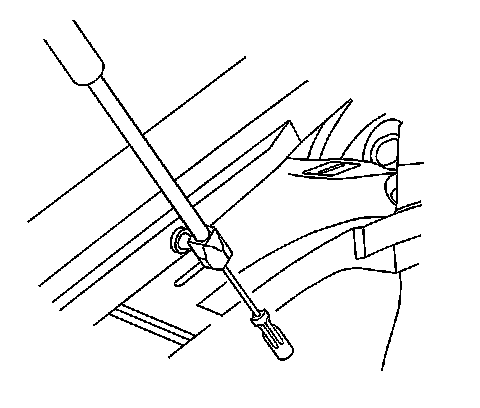

2. Lift up the retainer clips on the assist rods using a small flat-bladed tool.




3. Remove the upper end of the assist rods from the ball joint.




4. Remove the lower end of the assist rods from the ball joint.

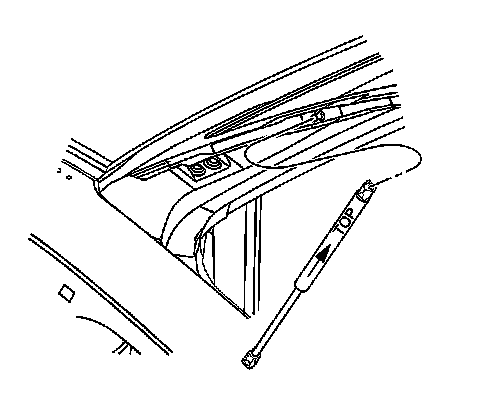

5. Remove the assist rods from the liftgate.

Installation Procedure




1. Position the assist rods to the liftgate.
2. Install the upper end of the assist rods to the ball joint. Press in to place until fully seated.

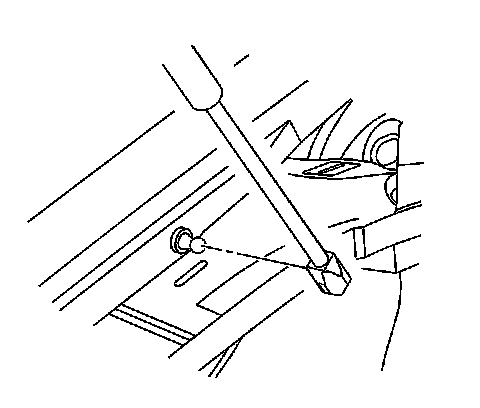

3. Install the lower end of the assist rods to the ball joint. Press in to place until fully seated.
4. Remove the support from the liftgate.
5. Close the liftgate.
