Hood Primary Latch Release Cable Handle Replacement

Hood Primary Latch Release Cable Handle Replacement

Removal Procedure

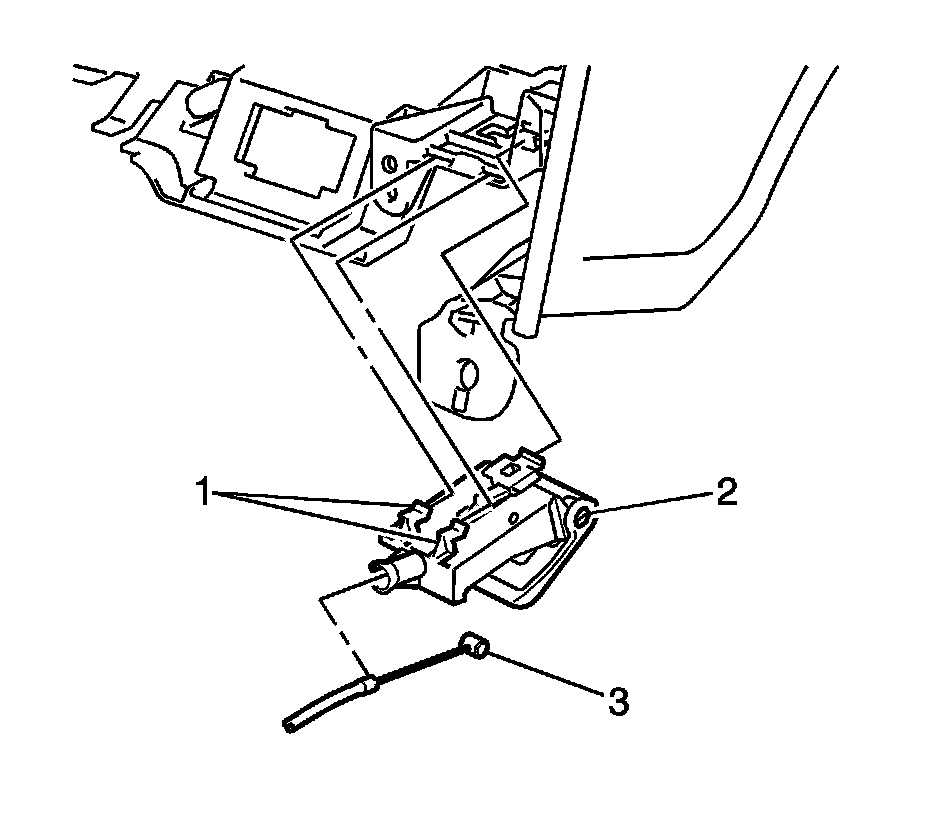

1. Disconnect the hood latch cable (3).
2. Disconnect the retaining tabs (1), and remove the hood latch release handle (2).

Installation Procedure




1. Connect the retaining tabs (1), and install the hood latch release handle (2).
2. Connect the hood latch cable (3).
