Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

Removal Procedure




1. Raise and suitably support the hood.

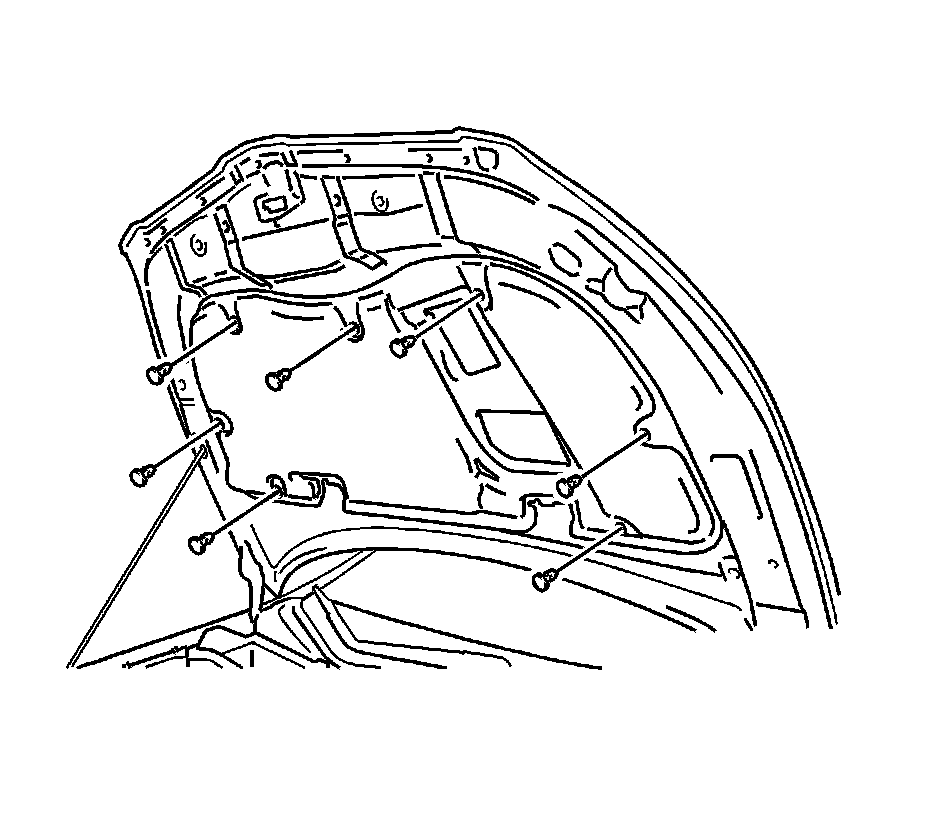

2. Remove the following components from the hood:

* The 7 plastic retainers
* The hood insulator

Installation Procedure




1. Install the hood insulator to the hood. Secure the insulator with the 7 plastic retainers.
2. Lower the hood.
