Rear Door Hinge: Service and Repair

Rear Side Door Upper Hinge and Lower Hinge Replacement

Removal Procedure

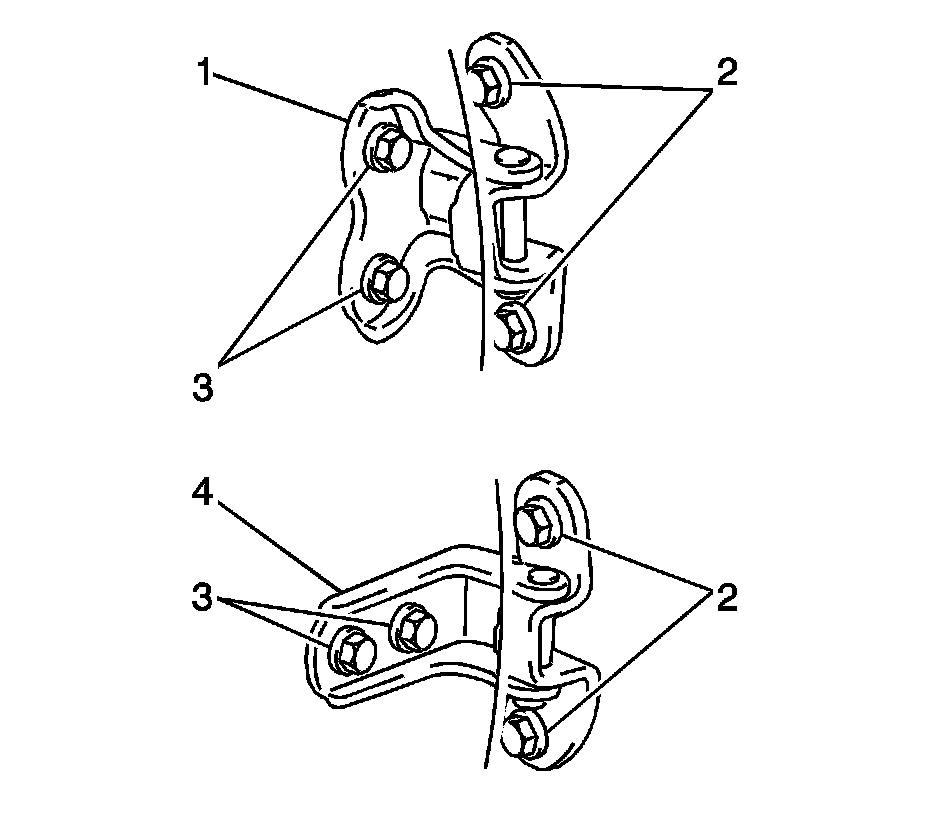

1. Open the front side door.

Note: Remove only one hinge at a time in order to keep the door properly aligned.

2. Remove the 2 door to hinge bolts (2).
3. Remove the 2 hinge to door jamb bolts (3).
4. Remove the upper (1) or lower (4) hinge from the vehicle.

Installation Procedure




1. Install the hinge (1 or 4) to the door jamb. Secure the hinge with 2 door jamb bolts (3). Do not fully tighten at this time.

Caution: Refer to Fastener Caution (Fastener Caution)

2. Install the 2 door to hinge bolts (2). Tighten all hinge bolts and nuts to 26 Nm (19 lb ft).
3. Repeat the removal and installation steps for the opposite hinge, if necessary.
4. Close the front side door.
