Front Door Striker: Service and Repair

Front Side Door Lock Striker Replacement

Removal Procedure




1. Open the front side door.

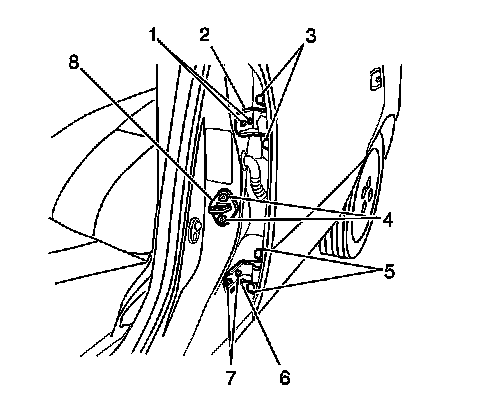

2. Remove the following components from the door jamb:

* The 2 screws (4)
* The door lock striker (8)

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the door lock striker (8) to the door jamb. Secure the striker with the 2 screws (4) and tighten to 23 Nm (17 lb ft).
2. Close the front side door.
