Rear Bumper Lower Fascia Replacement

Rear Bumper Lower Fascia Replacement

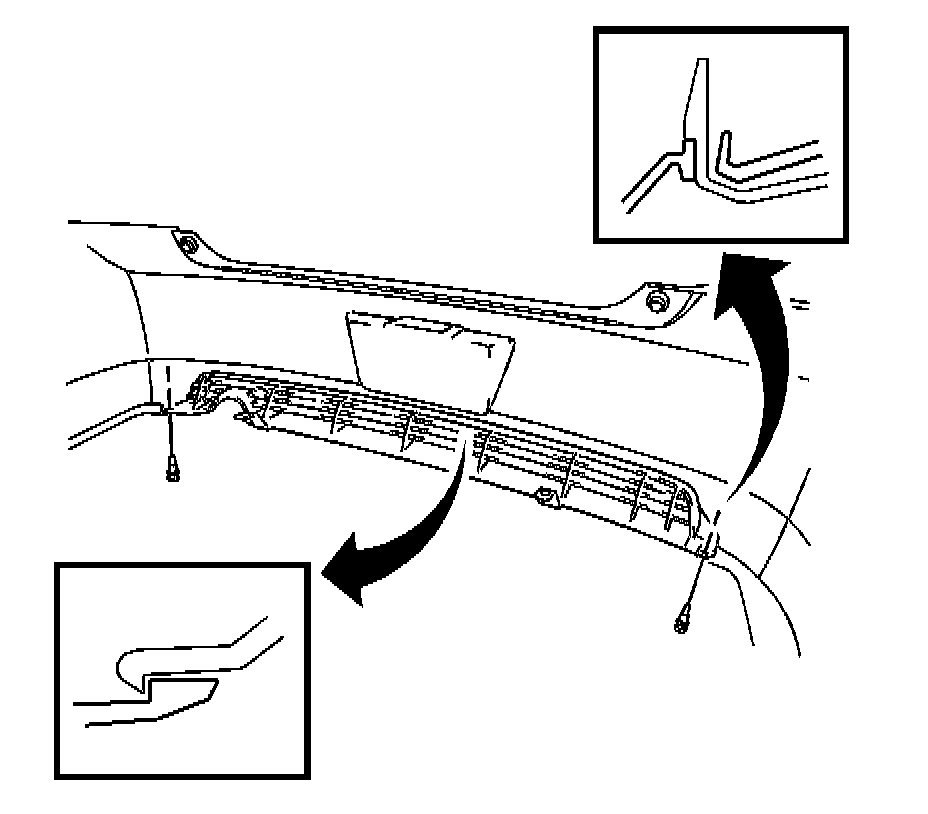

Removal Procedure





1.Remove the two clips.

2.Disengage the lower retaining tabs and remove the rear bumper lower fascia.

Installation Procedure





1.Position the rear bumper lower fascia to the rear fascia and engage the lower retaining tabs.

2.Install the two clips.
