Rear Bumper Fascia Extension Replacement (Outer)

Rear Bumper Fascia Extension Replacement (Outer)


Removal Procedure

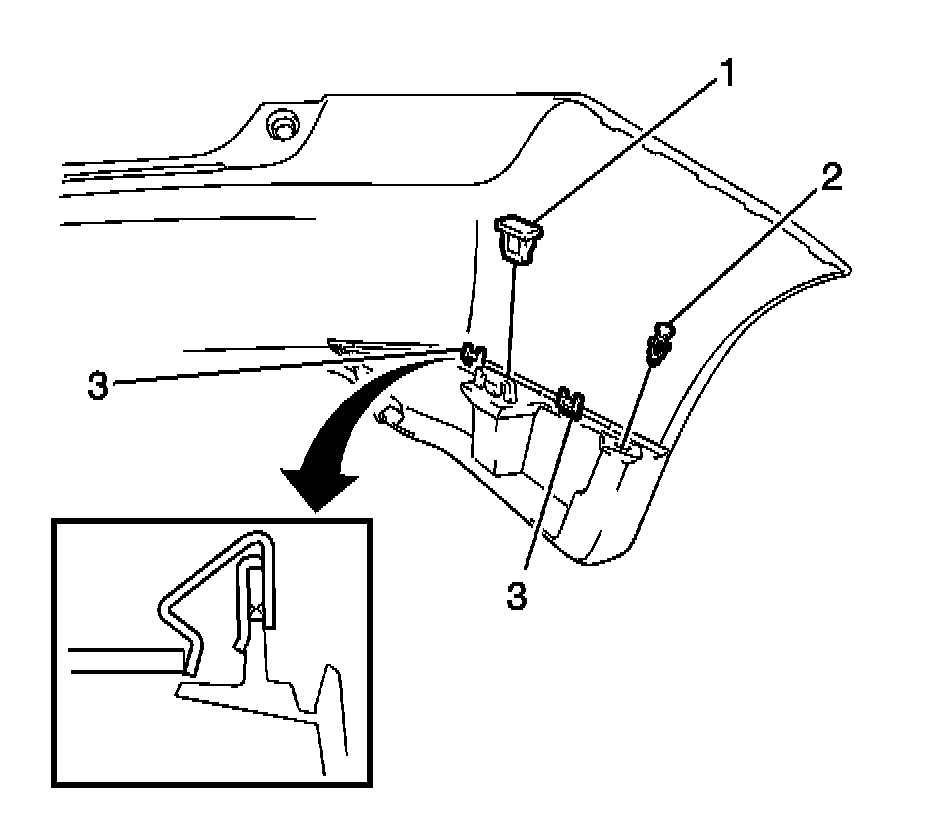

1.Remove the clip (1) and retainer (2).

2.Disengage the lower retaining clips (3) and remove the rear bumper outer fascia extension.

Installation Procedure





1.Position the rear bumper outer fascia extension to the rear fascia and engage the lower retaining clips (3).

2.Install the clip (1) and retainer (2).
