Rear Bumper Fascia Extension Replacement (Center)

Rear Bumper Fascia Extension Replacement (Center)


Removal Procedure

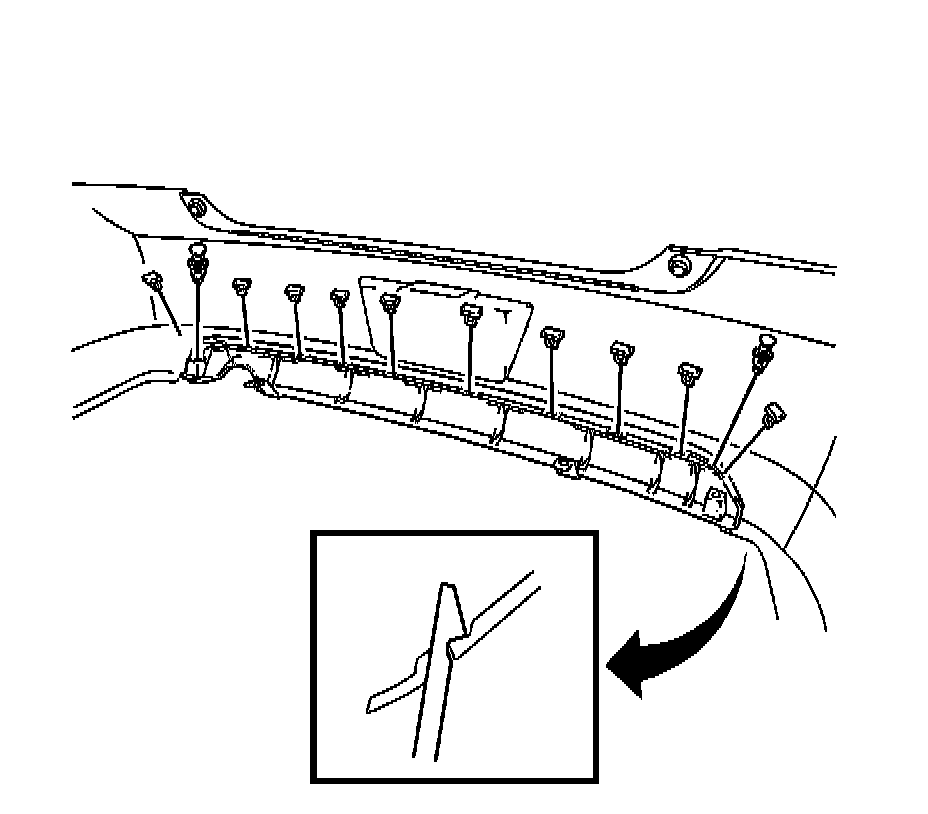

1.Remove the two clips and the ten retainers.

2.Disengage the lower retaining tabs and remove the rear fascia center extension.

Installation Procedure





1.Position the rear fascia center extension to the rear fascia and engage the lower retaining tabs.

2.Install the two clips and the ten retainers.
