Front Bumper Shock Absorber: Service and Repair

Front Bumper Fascia Energy Absorber Replacement

Removal Procedure




1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Without GT) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (With GT) (Front Bumper Fascia Replacement).

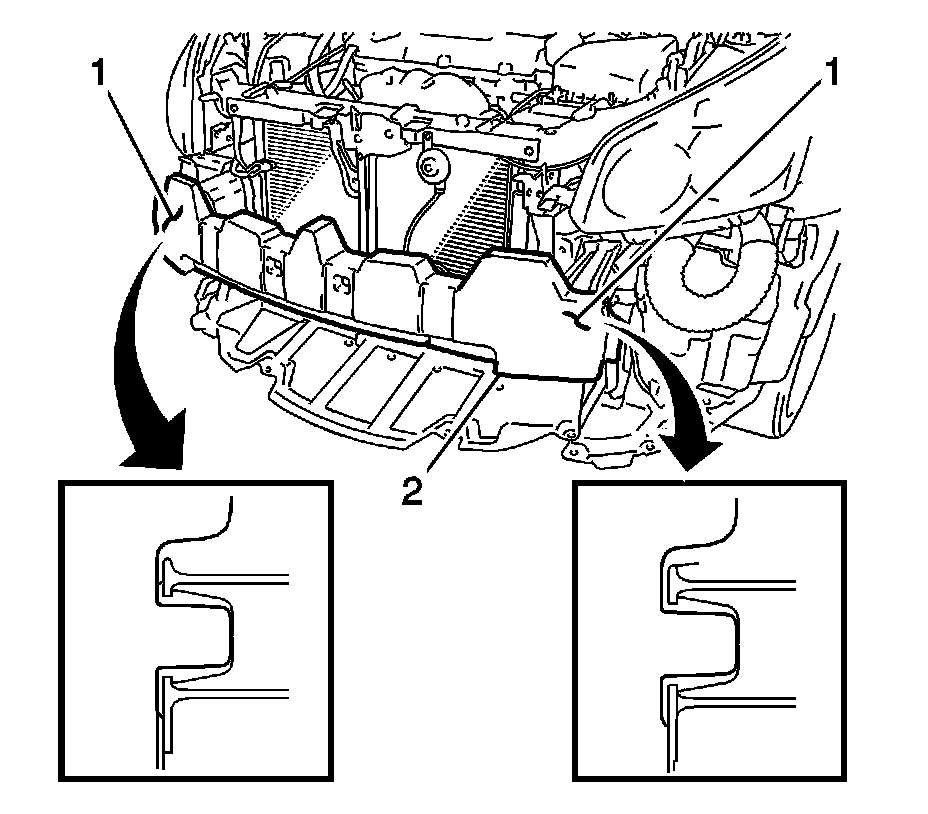

2. Disengage the two guides (1) and remove the front bumper fascia energy absorber (2) from the front bumper impact bar.

Installation Procedure




1. Install the front bumper fascia energy absorber (2) and engage the guides (1).
2. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Without GT) (Front Bumper Fascia Replacement)Front Bumper Fascia Replacement (With GT) (Front Bumper Fascia Replacement).
