Front Bumper Fascia Insert Replacement

Front Bumper Fascia Insert Replacement


Removal Procedure

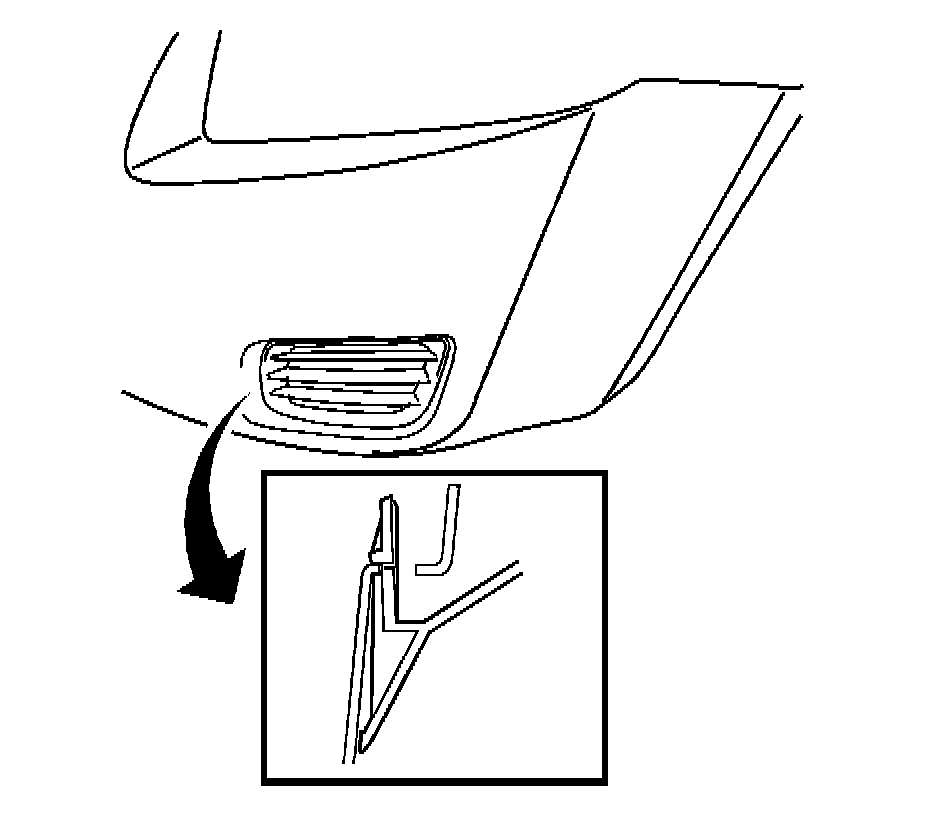

Disengage the five retaining tabs and remove the fascia insert.

Installation Procedure





Position the lower fascia insert retaining tabs to the slots in the front lower fascia.

Install the lower fascia insert by pressing into place until the retaining tabs are fully seated.
