Front Upper Speaker Replacement

Front Upper Speaker Replacement

Removal Procedure




1. Remove the front door trim panel applique. Refer to Front Side Door Trim Panel Applique Replacement (Service and Repair).
2. Disconnect the speaker electrical connector.

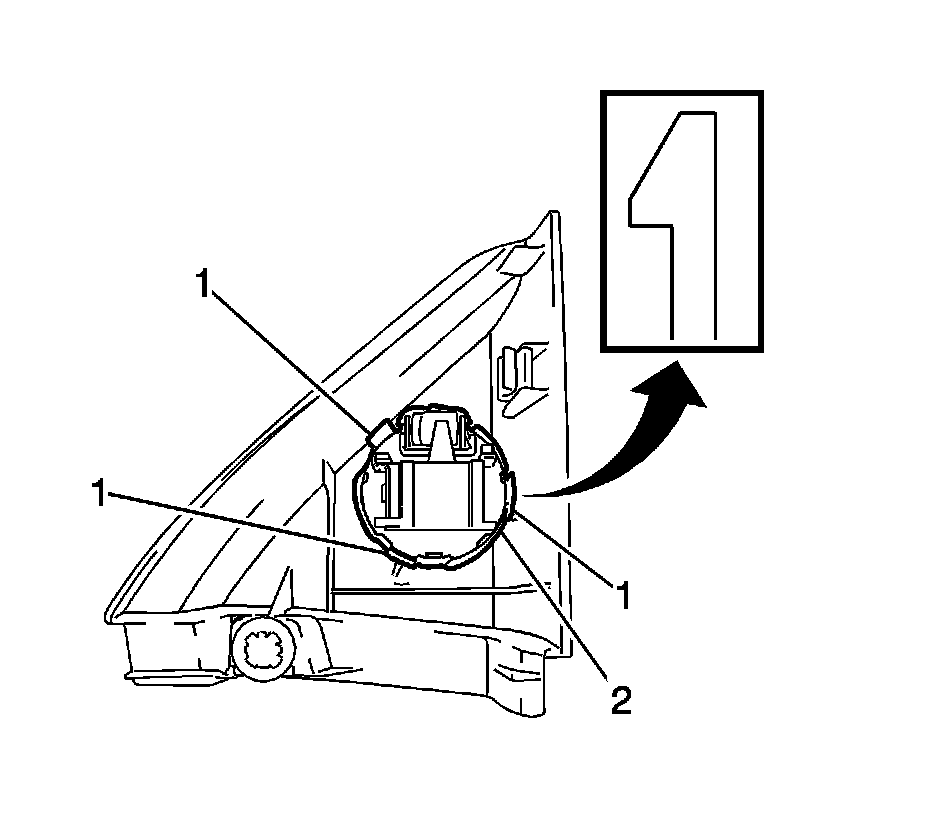

3. Disengage the three retainers (1).
4. Remove the front upper door speaker (2) from the vehicle.

Installation Procedure




1. Install the front upper door speaker (2) to the vehicle.
2. Engage the three retainers (1).
3. Connect the speaker electrical connector.
4. Install the front door trim panel applique. Refer to Front Side Door Trim Panel Applique Replacement (Service and Repair).
