Amplifier: Service and Repair

Radio Speaker Amplifier Replacement

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
2. Remove the front passenger seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).

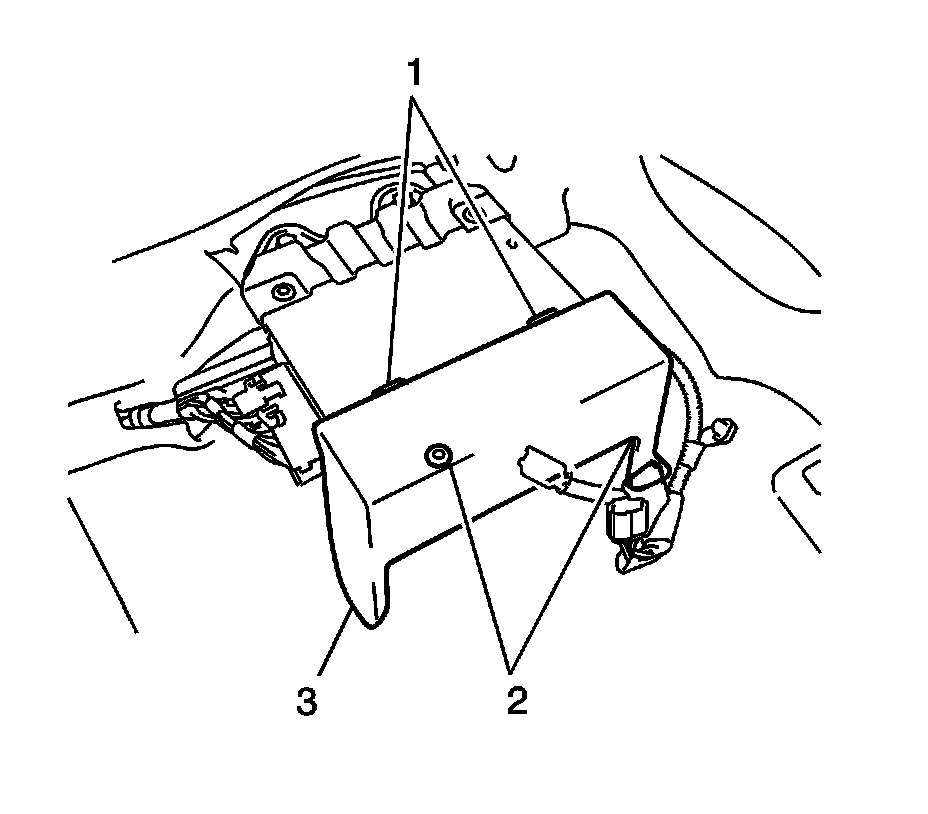

3. Remove the two clips (1).
4. Disengage the two guides (2) and remove the amplifier cover (3).

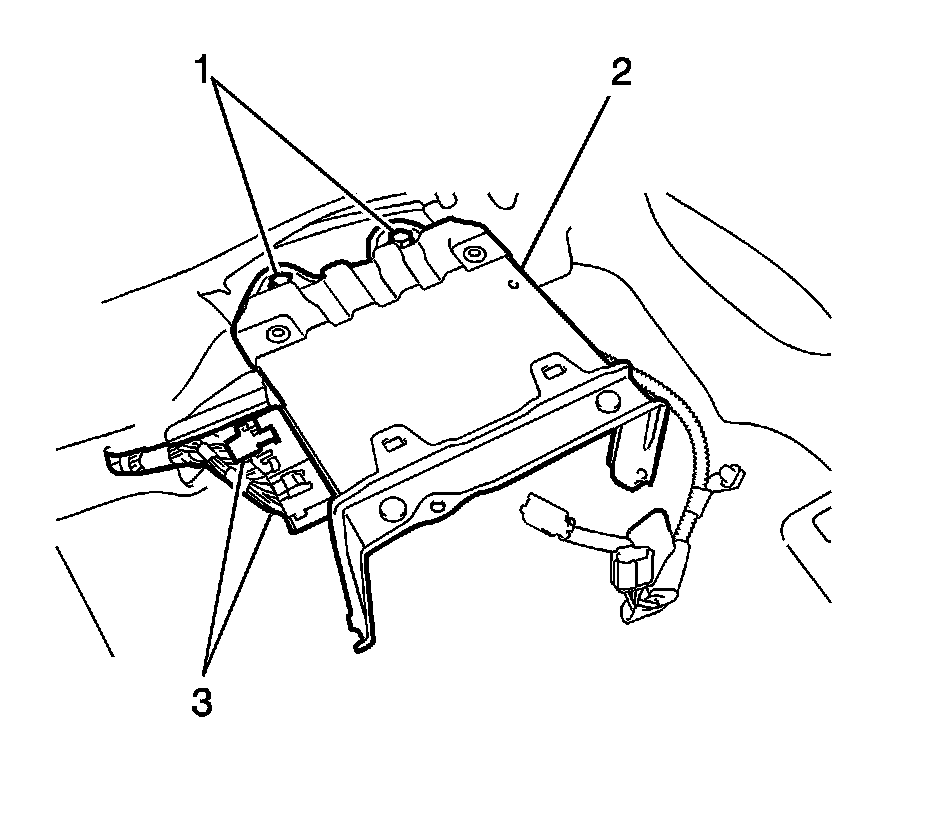

5. Disconnect the electrical connectors (3).
6. Remove the two bolts (1).
7. Remove the amplifier (2) from the vehicle.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Secure the amplifier (2) to the vehicle with the two bolts (1).

Tighten the two bolts to 19 Nm (14 lb ft).

2. Connect the electrical connectors (3).




3. Engage the two guides (2) and install the amplifier cover (3).
4. Install the two clips (1).
5. Install the front passenger seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
