Driver/Vehicle Information Display: Service and Repair

Information Center Telltale Assembly Replacement

Removal Procedure

1. Remove the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).

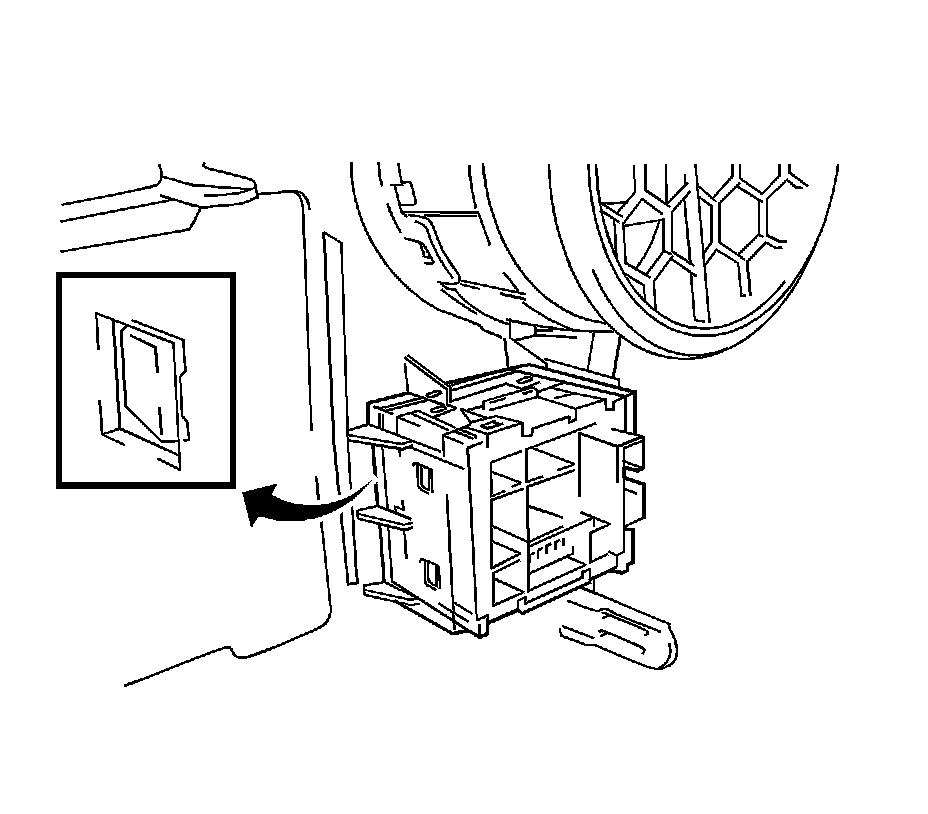

2. Disengage the 4 claws and remove the telltale light assembly.

Installation Procedure




1. Engage the 4 claws and install the telltale light assembly.
2. Install the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).
